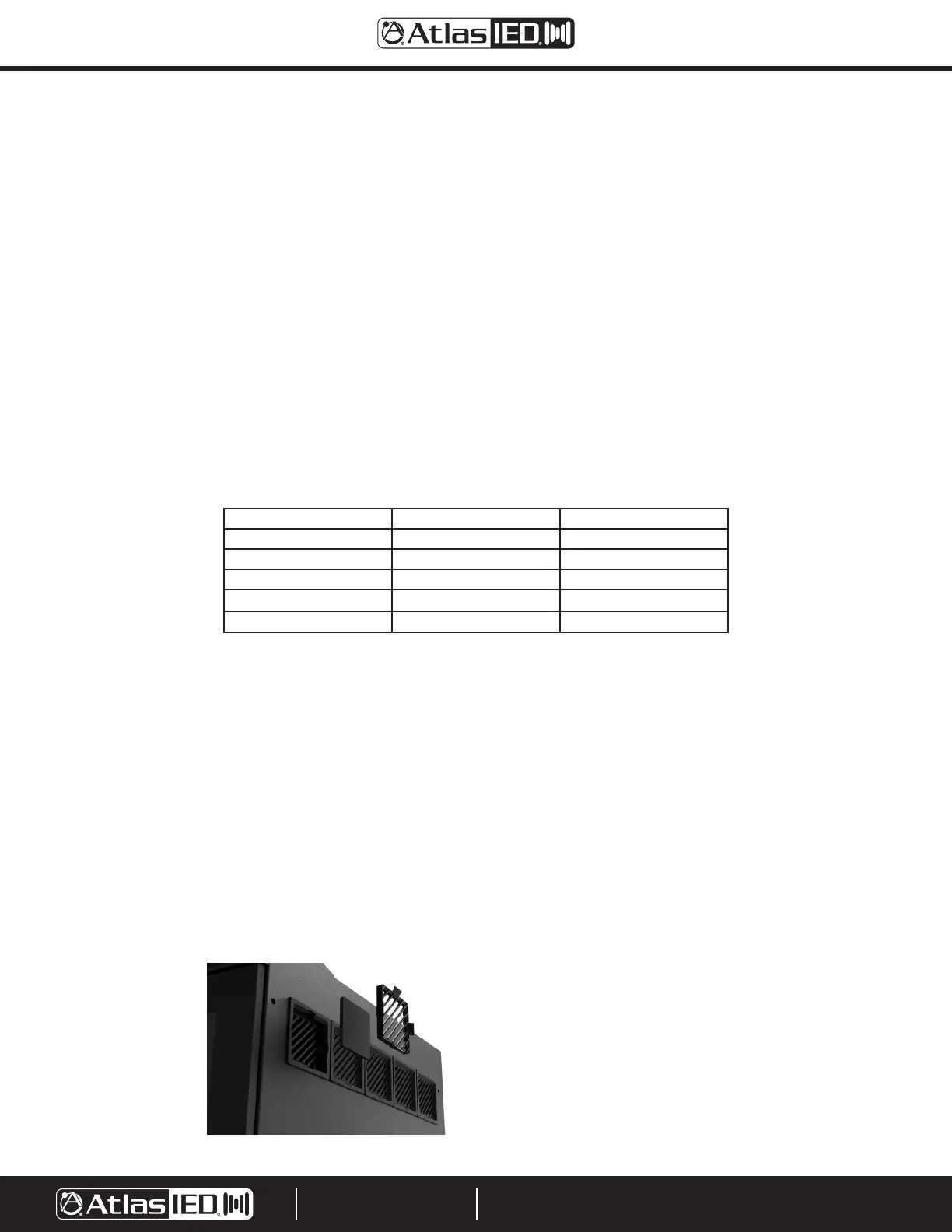

Equipment Installation

CAUTION: Ensure adequate manpower is available to help safely install equipment within the rack. Despite the small size of some gear, weights can

easily reach 80 lbs. or more. Know the weights of the equipment to be installed and use the appropriate number of people or rigging equipment.

DID YOU KNOW? Equipment installation may be greatly aided by using the AtlasIED LAR150. The LAR150 Load-A-Rack tool provides a much-needed

"helping hand" during installation and reduces manpower required to hold the equipment in place during installation.

DID YOU KNOW? Rail positions (rack units) are conveniently marked on the cabinet rails. The 1st position will always be at the bottom of the cabinet.

The first set of 3 mounting holes in each rail make-up this 1st rack unit position. The next set of 3 mounting holes make-up the 2nd rack unit position

and so on.

NOTE: Interference may exist between racked-equipment, doors, and floor of the cabinet. See Initial Rail Setup section before proceeding.

1. Equipment is typically mounted using 10-32 screws.

2. Start mounting equipment in the lower elevations of the cabinets.

3. Always mount the heaviest equipment within the lower elevations of the cabinet.

NOTE: If installed equipment has cooling vents on the top or bottom, do not block those vents. Leave at least 1RU of space or more between adjacent

equipment. Filler panels may be used to fill these open spaces.

4. In general, any piece of equipment heavier than 25 lbs. per rack unit should utilize a rear rack rail. Consult chart below:

5. If any type of pullout device like a drawer or monitor is installed in the cabinet, be sure the cabinet is firmly attached to the floor before opening

pullout.

6. After completing the equipment installation, be sure all doors close properly.

Dust Prevention Snap-In Filter Cubes

Air filter panels cut down on dirt and dust intrusion into the rack keeping the installed equipment clean and optimally functioning. In addition, these air

filters feature a replaceable filter membrane that is accessed from the outside of the rack. A provided air block may also be installed on individual air

filters to better control cooling paths.

• Snap-fit installation into cabinet – must have rear access to remove

• Contains an air filter element

• Toolless air filter replacement – may be replaced from the outside of rack

• May be sealed with a simple air filter blocking sheet

Rack Units Front Rail Max Front + Rear Rail Max

1 RU 25 lbs 56 lbs

2 RU 50 lbs 112 lbs

3 RU 75 lbs 168 lbs

4 RU 100 lbs 224 lbs

n RU n x 25 lbs n x 56 lbs
