AtlasIED.com

TELEPHONE: (800) 876-3333

SUPPORT@ATLASIED.COM

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

OWNER’S MANUAL

AC POWER DISTRIBUTION & SURGE SUPPRESSOR UNIT

AP-S20

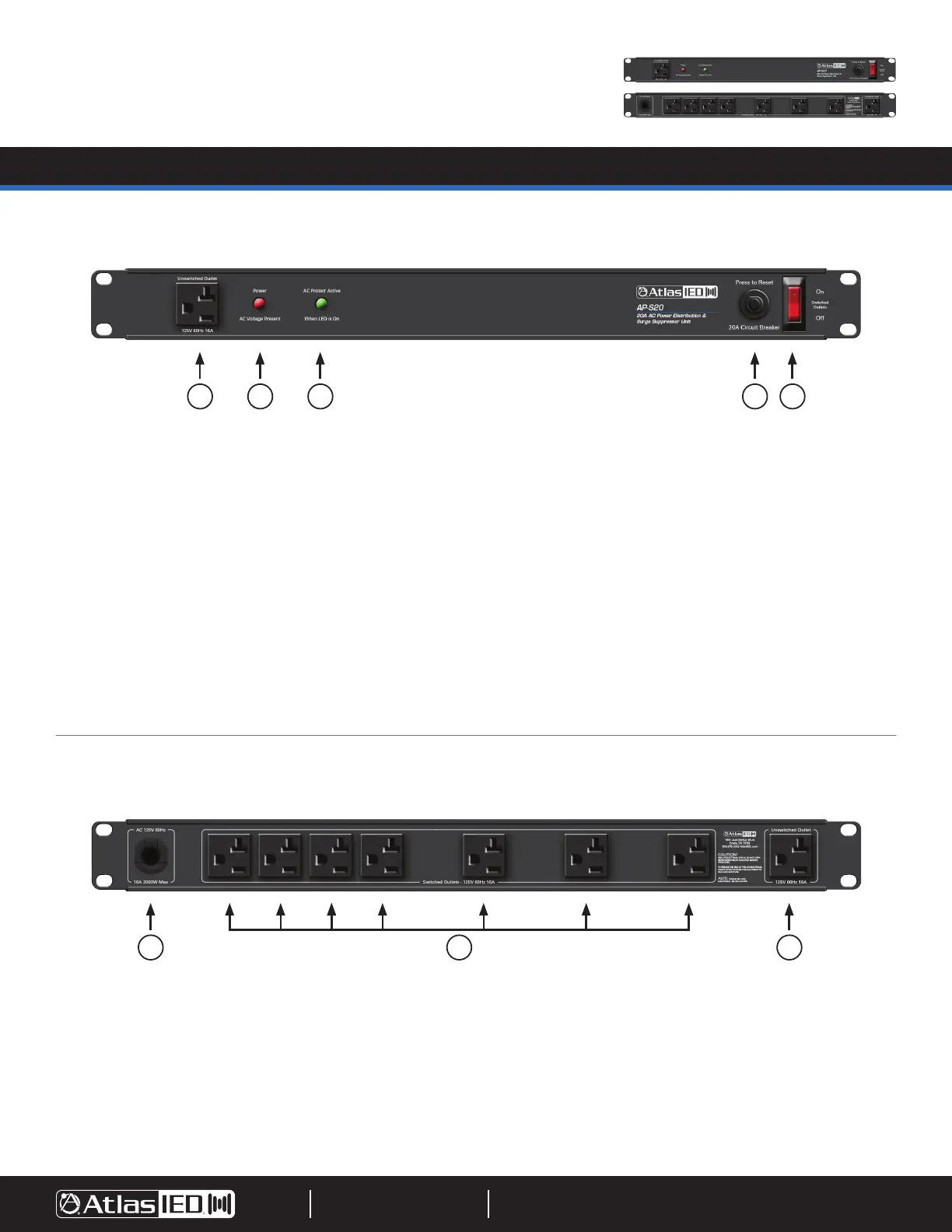

FRONT PANEL DESCRIPTION

1. Unswitched AC Power Outlet - The 120VAC 20A NEMA 5-20R outlet is always live when the AP-S20 power cord is plugged into an AC Mains power

source and voltage is present. Note: The AC Mains power switch does not affect the Unswitched AC Outlet. The Unswitched Outlet is protected by

the surge protection circuitry.

2. AC Mains Breaker - The 120VAC 20A 2500W rated breaker will open if the combined draw of all AC outlets exceeds 20A. Note: The breaker is designed to exceed its

rating for a short period of time. If the breaker is tripped, you must rst remove the load from the AP-S20 and then push to reset.

3. Power Switch - To turn the AP-S20 On or Off, press the switch to the ON or OFF position. This switch powers the “switched” outlets. The switch will illuminate Red

when it is in the ON position.

4. Power AC Present LED - This LED will illuminate Red when the AC Mains Power Switch is in the ON position.

5. AC Protect Active LED - Although the Clamping Suppression circuit virtually assures protection from most transient voltage spikes and surges, nature has a way

of occasionally creating electrical forces that are beyond the capabilities of any device to absorb without some degree of damage. In the rare instance that this

occurs and the circuit has been damaged, the Green “AC Protect Active” LED indicator will turn Off, indicating that the AC Protect Circuitry is no longer protecting

equipment connected to the Switched outlets. The unit will still operate as an AC distribution unit but the surge suppressor protection will not function until the unit

is repaired. Note: Be advised that activation of this fault condition and the associated repair is not covered under warranty. If the AC Protect is disengaged, it is

important to have all equipment that was connected to that AC Mains Line be inspected for proper operation.

1 2 34 5

REAR PANEL DESCRIPTION

1. AC Mains Input - Connect the 12 gauge 9' (2.74m) power cord to a 20A 120VAC outlet to provide power to the AP-S20.

2. Switched AC Power Outlets - Seven 120VAC 20A NEMA 5-20R outlets are live when the front panel power switch is activated.

3. Unswitched AC Power Outlet - The 120VAC 20A NEMA 5-20R outlet is always live when the AP-S20 power cord is plugged into an AC mains power source and

voltage is present. Note: The AC mains power switch does not affect the Unswitched AC Outlet. The Unswitched Outlet is protected by the surge protection circuitry.

1 2 3
