AP-S15HRIP / AP-S15IP / AP-S158IP
Owner’s Manual
– 20 –
AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

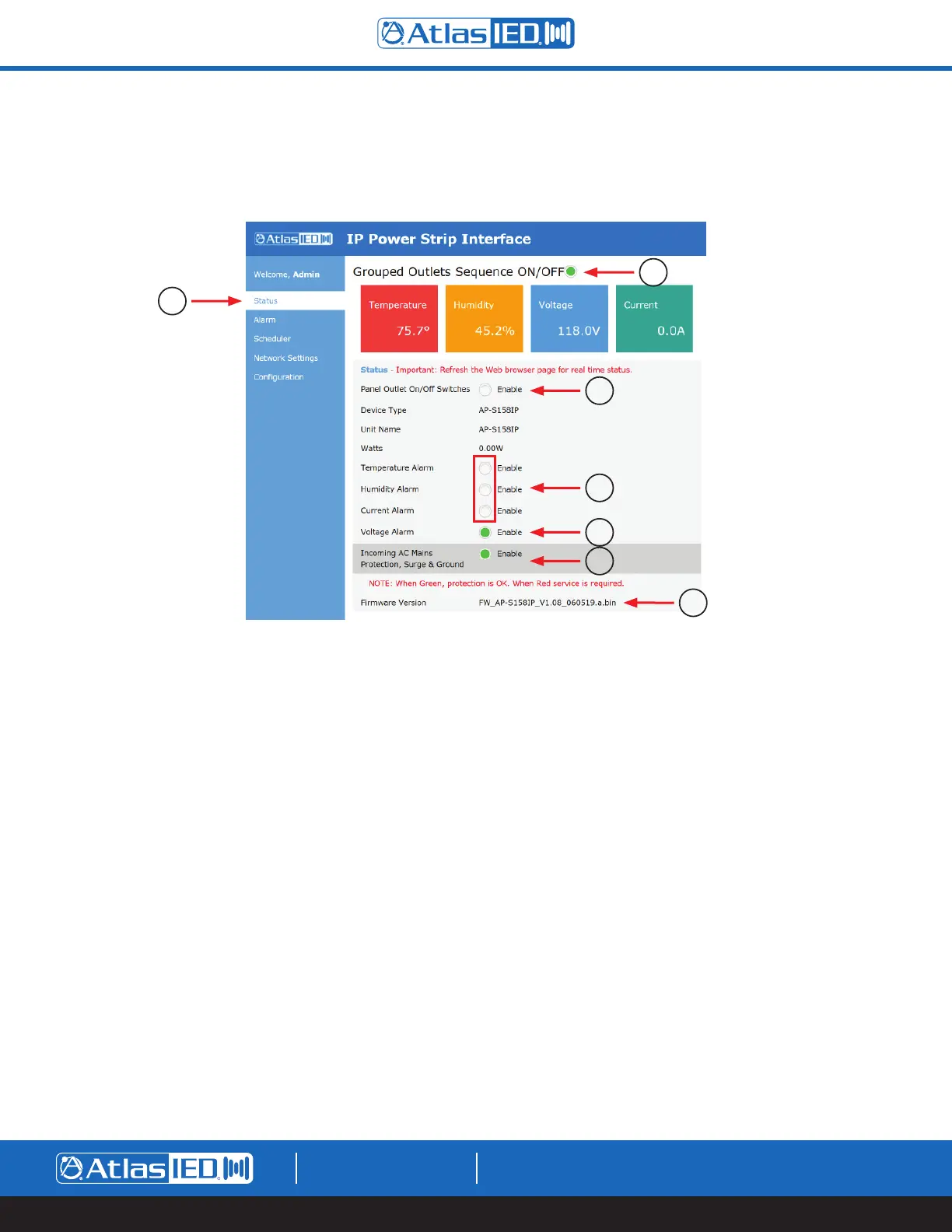

Status Settings WEB Page
This section uses the AP-S158IP as an example. UI features are the same for all three models. Note The AP-S15HRIP has 5 programmable outlets and
the AP-S15IP and the AP-S158IP have 8 programmable outlets.
1. Status Page is selected.
2. Grouped Outlets Sequence On / Off Switch
• When this box is selected a check symbol will appear and the switch will be On. The unit will begin to sequence On / Off any outlets that
are assigned to the Grouped Outlets in the Configuration page. Outlets will sequence On from the assigned outlet number in sequential order
from lowest to highest.
• When the Grouped Outlets Sequence On / Off switch is turned Off, this box will have no check symbol and the outlets will sequence Off
from the assigned outlet number high to low.
3. Panel Outlet On / Off Switches Enabled Indicator
• If this indicator is green, the front panel individual outlet switches are enabled and will function.
• The front panel individual outlet switches can be disabled on the configuration page by unchecking the Enable box.
• Select SAVE to apply the settings.
• Back on the Status page, the panel outlet On / Off switches enabled indicator will be grayed out, meaning the front panel individual outlet
switches will not work.
4. Temperature, Humidity, Current Alarm Status Enabled Indicator
• The alarm functions are disabled and will not function if this indicator is grayed out.
• Go to the Alarm page and set the parameters for the alarm setting to enable them.
• Select Enabled.
• Select SAVE to apply the settings.
• If the alarms are activated these indicators turn red until the values are within safe operating range.
• The fault reason, day and time will be recorded in the Alarm Activation log section located at the bottom of the alarm page.
• The Fault control port contact relay will be open when any alarm is activated.
1
2
3
4
5
6
7
