Chapter 1. Introduction
17

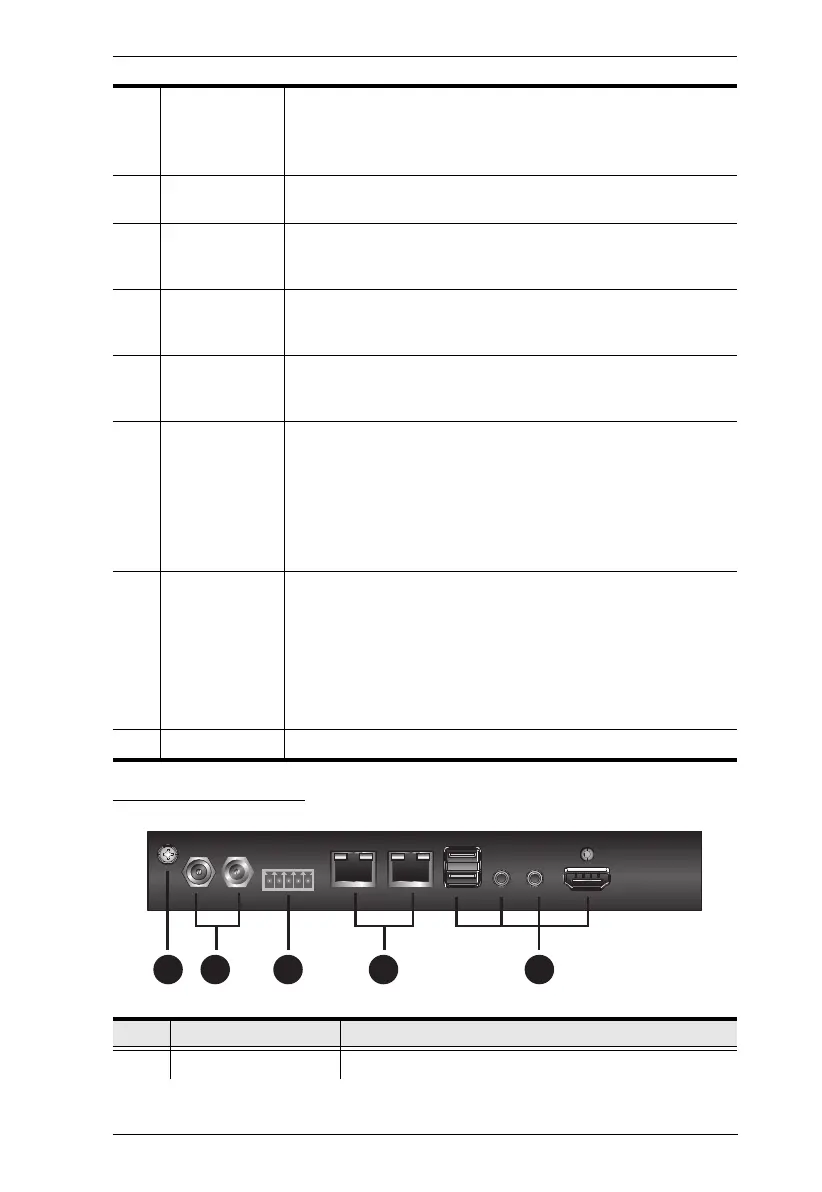

CN9850 Rear View
1 PC/KVM HDMI
port
Use the HDMI cable provided to connect the PC / workstation
to the unit through this port.
Note: Make sure the connected computer’ video source is not
HDCP encrypted to avoid blank screen or screen flickering.
2 KVM audio
Ports
Connect the audio of the PC / server to these ports for audio
signal transmissions.
3 CPU COM
(RS-232 DTE)
port
Connect a serial data communication equipment device (e.g. a
modem or PC) to this port. See page 28 for details.
4 local console
COM (RS-232
DCE) port
Connect a serial data terminal equipment device (e.g. a PC or
touch panel) to this port. See page 28 for details.
5 KVM USB
Type-B port
Use the USB cable (USB Type-A to USB Type-B) provided to
connect the PC / server to this port for keyboard and mouse
signal transmissions.
6 laptop USB
console (LUC)
port
For laptop local access (See Local Access, page 131),
connect the laptop to this port using the USB Type-A to USB
Mini-B cable provided.
Make sure the mode of USB IO Settings (see USB IO
Settings, page 78) is set to LUC.
If the mode of USB IO Settings is set to Virtual Media, this port
will not work.
7 reset button 1. Press the reset button for more than 3 seconds to revert
the unit back to factory default settings.
2. Press and hold the reset button while powering on the
switch to return the unit to its factory default firmware level.
This operation should only be performed in the event of a
firmware upgrade failure that results in the device
becoming inoperable.
8 power LED Lights green when the unit is powered on.
No. Component Description
1 grounding terminal Connect to a suitable grounding object.
1 2 3 4 5
