Single Board Computer
3.8 Installing a heat spreader
1. Place the heat spreader with its copper pad and thermal interface
material facing up on a at surface.
2. Remove the plastic protective lm from the copper pad and thermal
interface material on the heat spreader, if there is one.
Copper pad & thermal
interface material
Screw hole
Stando

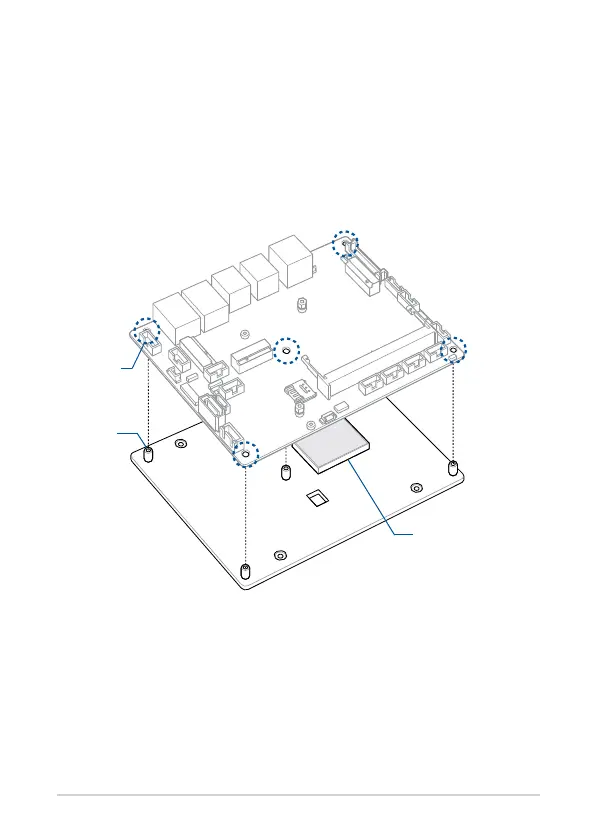

3. Orient the motherboard so that the CPU, chipset, and EMMC on
its backside are in direct contact with the copper pad on the heat
spreader, and the ve (5) screw holes on the motherboard are aligned
to the ve (5) standos on the heat spreader.
