Single Board Computer
45
3.7 Installing a heatsink
1. Place the heatsink with its ns faced down on a at surface.
2. Remove the plastic lm on the thermal pads.

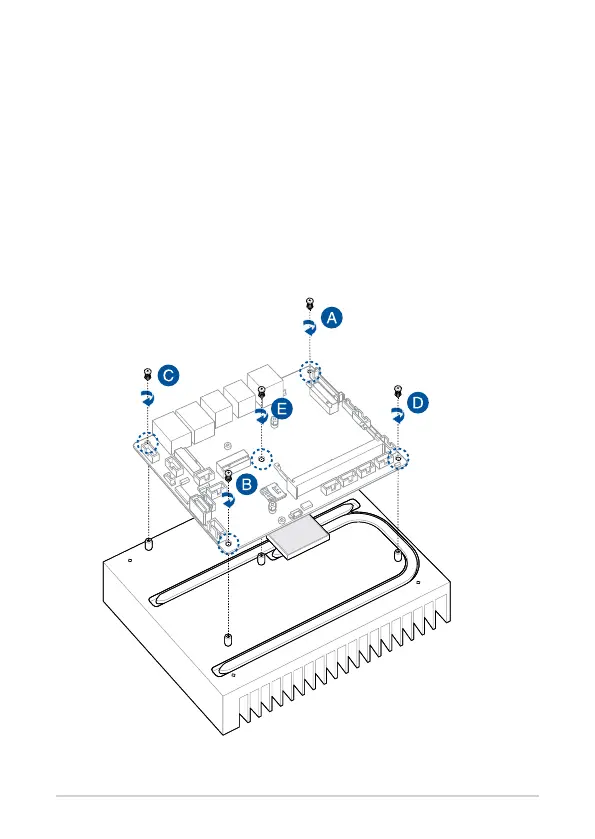

3. Orient the motherboard so that the CPU on its backside are in direct
contact with the copper pad on the heatsink, and the ve (5) screw
holes on the motherboard are aligned to the ve (5) standos on the
heatsink as shown below.
4. Secure the motherboard to the heatsink using the ve (5) spring screws
bundled with the heatsink in the sequence shown below.
