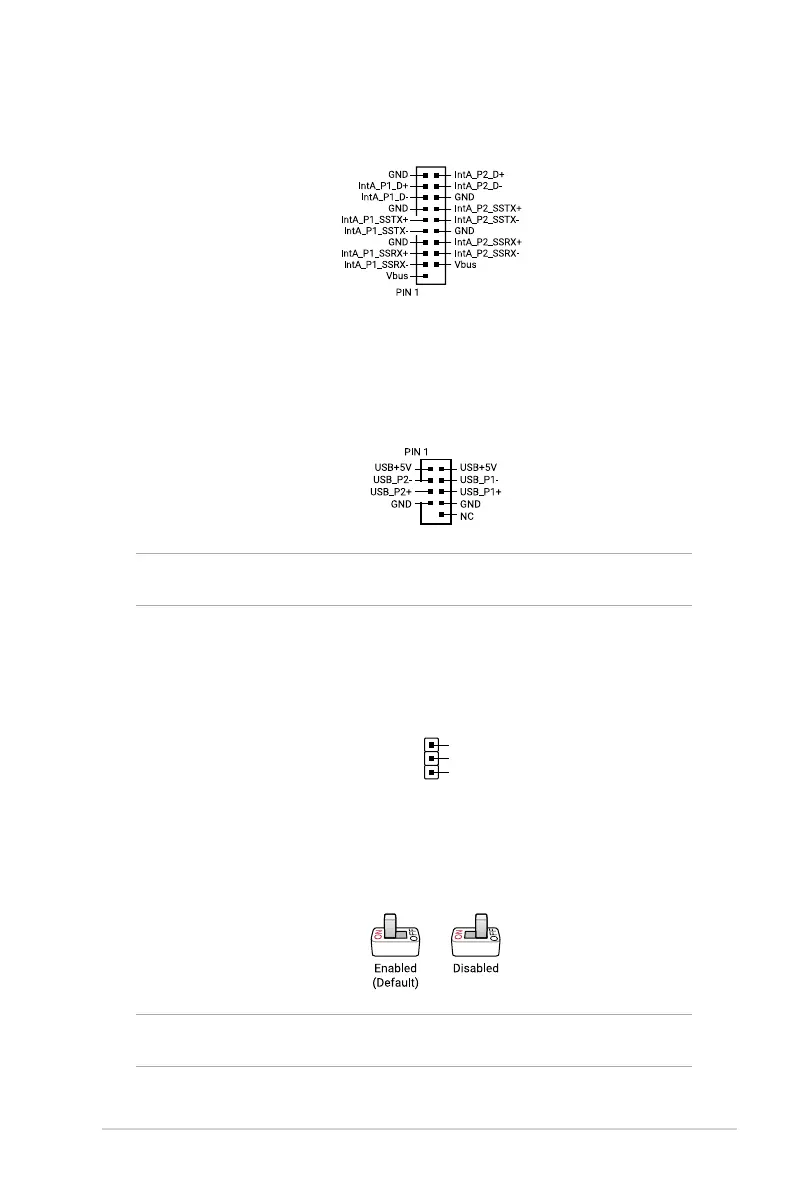

11. USB 2.0 header
The USB 2.0 header allows you to connect a USB module for additional USB 2.0 ports.
The USB 2.0 header provides data transfer speeds of up to 480 Mb/s.
USB_E12
USB_E34
CAUTION! DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
10. USB 5Gbps header
The USB 5Gbps header allows you to connect a USB 5Gbps module for additional USB
5Gbps ports. The USB 5Gbps header provides data transfer speeds of up to 5 Gb/s.
U5G_78
13. BMC switch
The BMC switch allows you to enable or disable the BMC.
BMC_SW
CAUTION! Ensure the ATX power supply is switched off or the power cord is detached from the
power supply when enabling or disabling BMC using this switch.
12. BMC Debug UART connector
The BMC Debug UART connector is used for reading the BMC UART Debug log.
PIN 1
GND
BMC_RXD5
BMC_TXD5
BMC_DEBUGUART
