49
6. Carefully remove the detached metal cover from the chassis.
7. (Optional) Install a GPU support bracket (purchasely separately) to
keep the GPU card from moving in the vertical direction. Refer to
the Installing a GPU support bracket section for instructions, and
then skip to step 12.

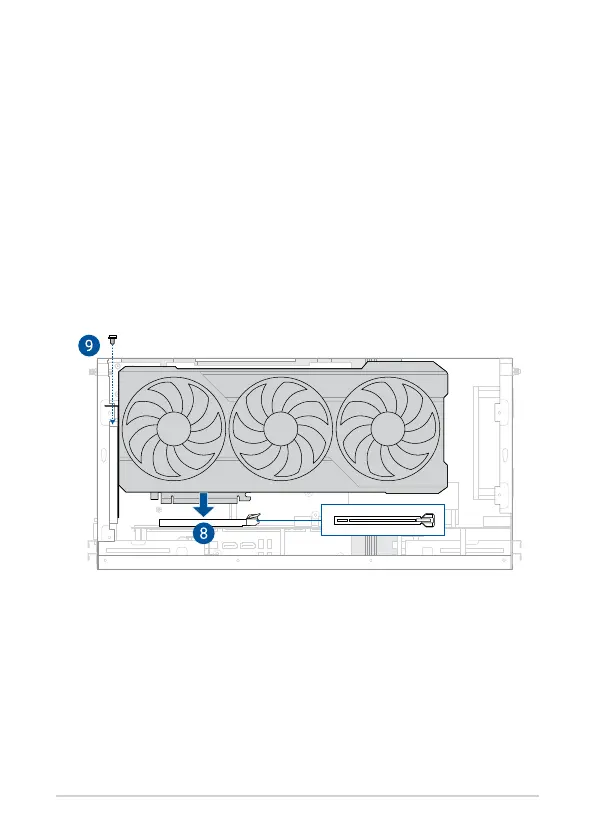

8. Insert your GPU card to the empty PCIe slot corresponding to the
punch-out port(s) with the metal cover(s) you removed earlier, and
ensure that it is securely seated in the slot.
9. Ensure the bracket on your GPU card is properly aligned to the
opening on the front of the Embedded Computer, and secure it
from the top using a screw to tighten its bracket to the chassis.
PCIE_SLOT3
