54
PE Series
3.11 Installing the terminal block
(optional)
You may install terminal blocks into the Isolated DIO connector, which
allow you to support additional devices with serial ports or micro controllers
by referring to the pin definitions and connecting cables to the slots on the
terminal blocks as needed.
IMPORTANT! Connect only one (1) cable to a slot on the terminal
block.
NOTE:
• The terminal block is purchased separately.
• Please refer to Rear view for the location and pin definitions of the
Isolated DIO connector.

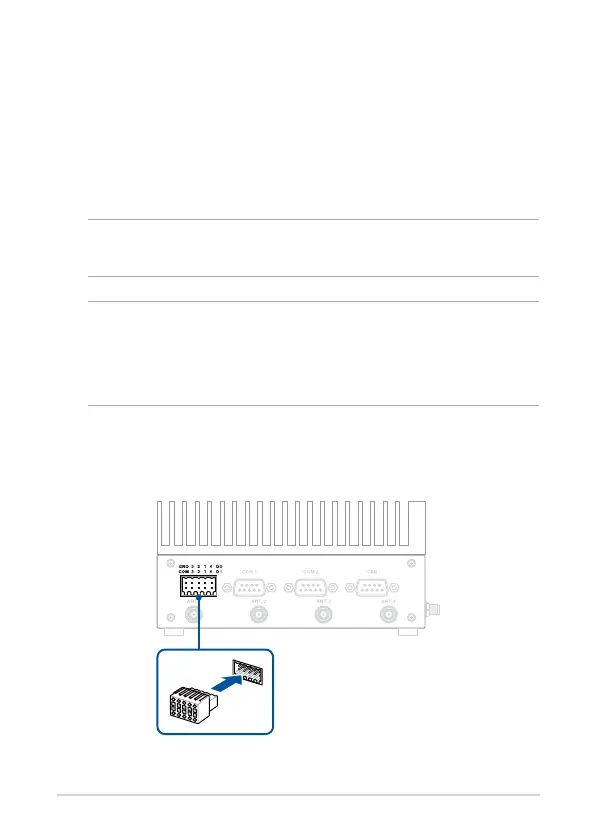

Installing a terminal block to the Isolated DIO connector
