PE Series
53
3.10 Installing DIN rail clips (optional)
1. Make sure that the wall mount brackets are already installed. Refer
to the section Installing wall mount brackets for installation
instructions.

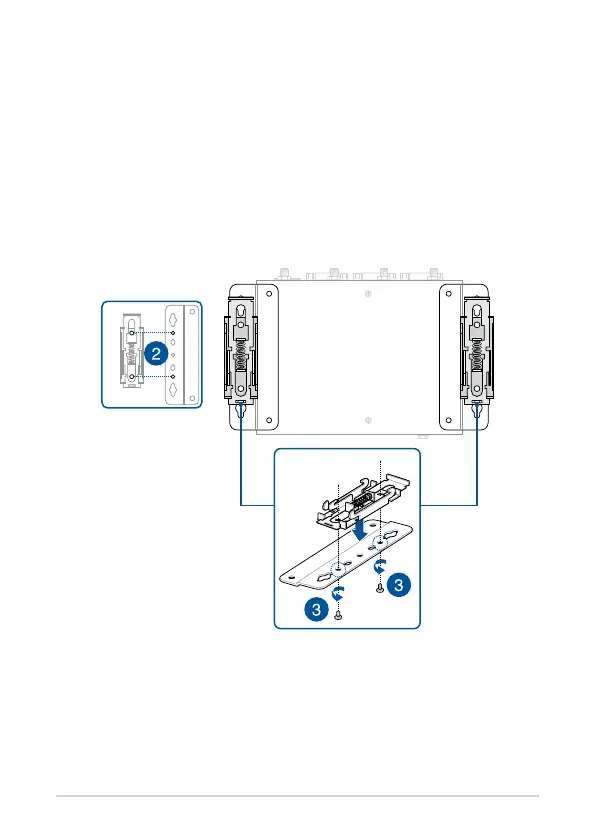

2. Align the screw holes on the DIN rail clips to the ones on the wall
mount brackets as shown below.
3. Secure the DIN rail clips to the wall mount using the screws bundled
with the DIN rail clips.
4. Clip the final assembly to a DIN rail by hooking the DIN rail clips to the
top of the DIN rail and then pressing down until you hear the clips snap
into place.
