The board has the following power supply connectors:
• External Power Supply – the board can be powered through a 12-20 V DC connector
on the back panel. The back-panel DC connector is compatible with a 5.5 mm/OD
(outer diameter) and 2.5 mm/ID (inner diameter) plug, where the inner contact is +12-
20 V DC, and the shell is GND. The maximum current rating is 10 A.
• Internal Power Supply – the board can alternatively be powered via the internal 12-20 V
DC 2 x 2 power connector, where pins 1 and 2 are +12-20 V DC and pins 3 and 4 are GND.
The maximum current rating is 10 A (5A per pins 1 and 2).
The connector used is Molex Micro-Fit (3mm pitch), right-angled, 4-pos/dual row (2x2).
2.7 Mechanical Considerations
2.7.1 Chassis Images

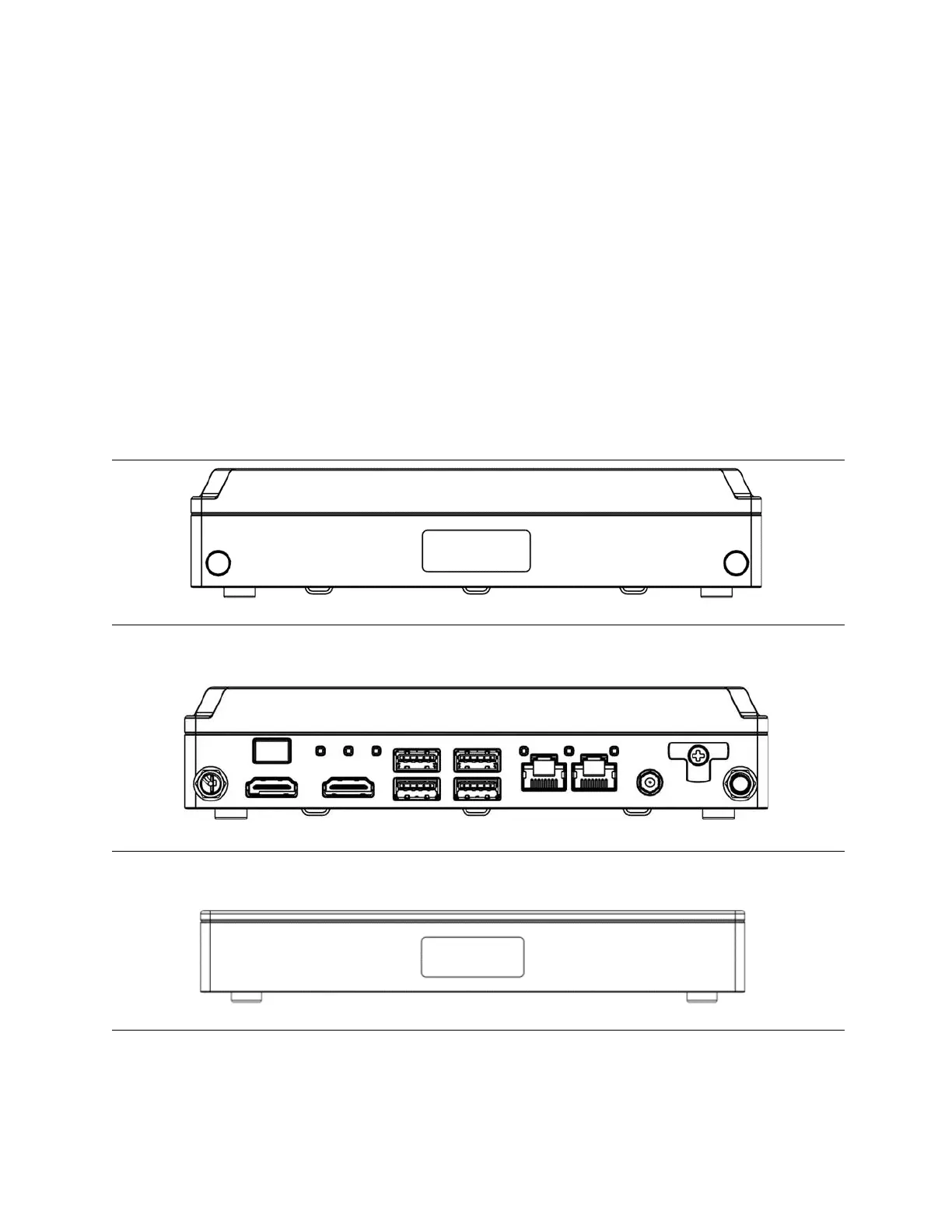

Figure 11. Tall Chassis Image Front
Figure 12. Tall Chassis Image Back
Figure 13. Short Chassis Image Front
