30 31
English

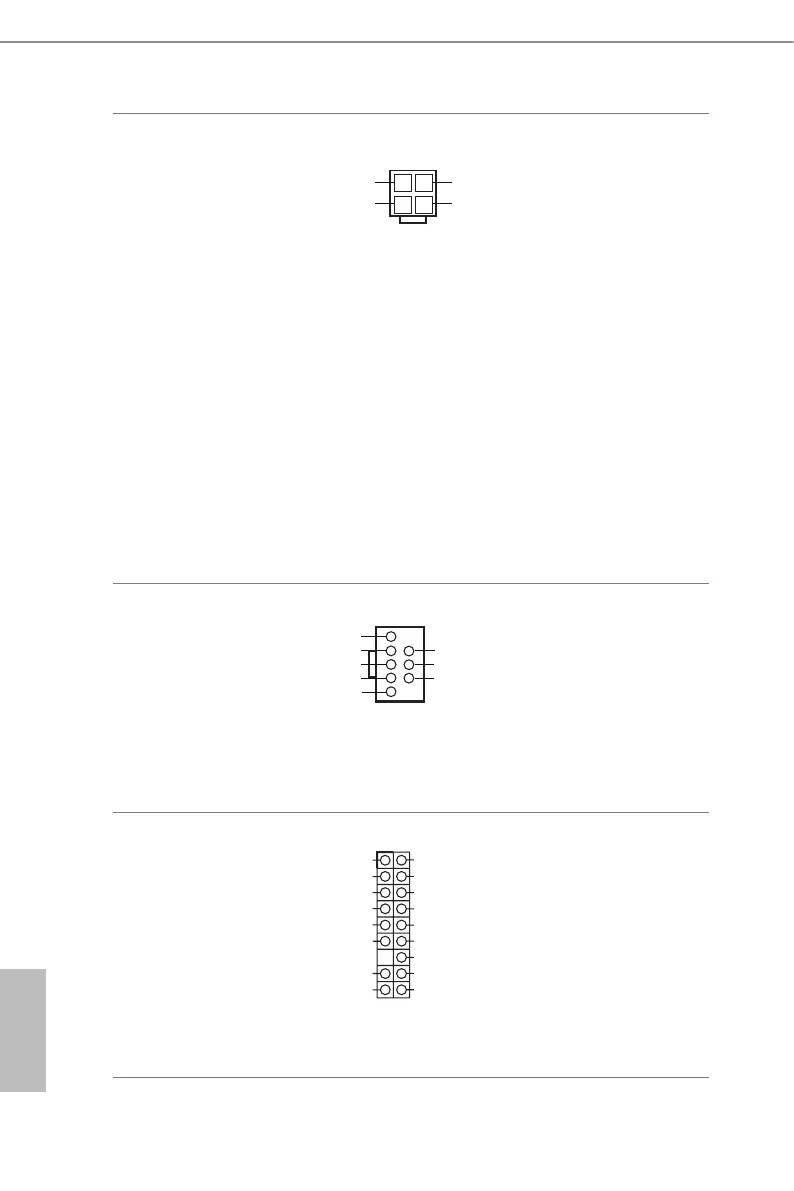

ATX 4-PIN Power
Connector
(4-pin ATX4PIN1
(ATX 24pin-to-4pin)
)
(see p.6, No. 1)
1
2
3
4
ATX_PWROK
PSON#
GND
ATX_+5VSB
e motherboard provides
one 4-pin power/signal
connector which is a required
input for ATX power source.
When using ATX power,
it is necessary to use a
24pin-to-4pin power cable
to connect between the
24pin power connector of
PSU and the ATX12V1 or
ATX12V2 connector on the
motherboard for power supply
and signal communication.
For DC-IN 12V application,
it is not necessary to use this
ATX 4-PIN power connector.
SATA Power Connector
(6-pin SATAPWR1)
(see p.6, No. 6)
1
N/A
GND
GND
+12V
GND
+12V
+5V
N/A
Please use a SATA power
cable
to connect this SATA Power
Connector and your SATA
HDD for supplying power
from the motherboard, when
using DC-IN mode without
SATA power supply.
TPMS Header
(17-pin TPM1)
(see p.6, No. 14)
1
LFRAME#_L
CK_33M_TPM
T
PM_RST#
LAD3_L
+3V
LAD0_L
+3VSB
GNDF_CLKRUN#
SERIRQ#
S_PWRDWN#
GND
LAD1_L
LAD2_L
SMB_DATA _MAI
N
SMB_CLK_MAIN
GND
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
