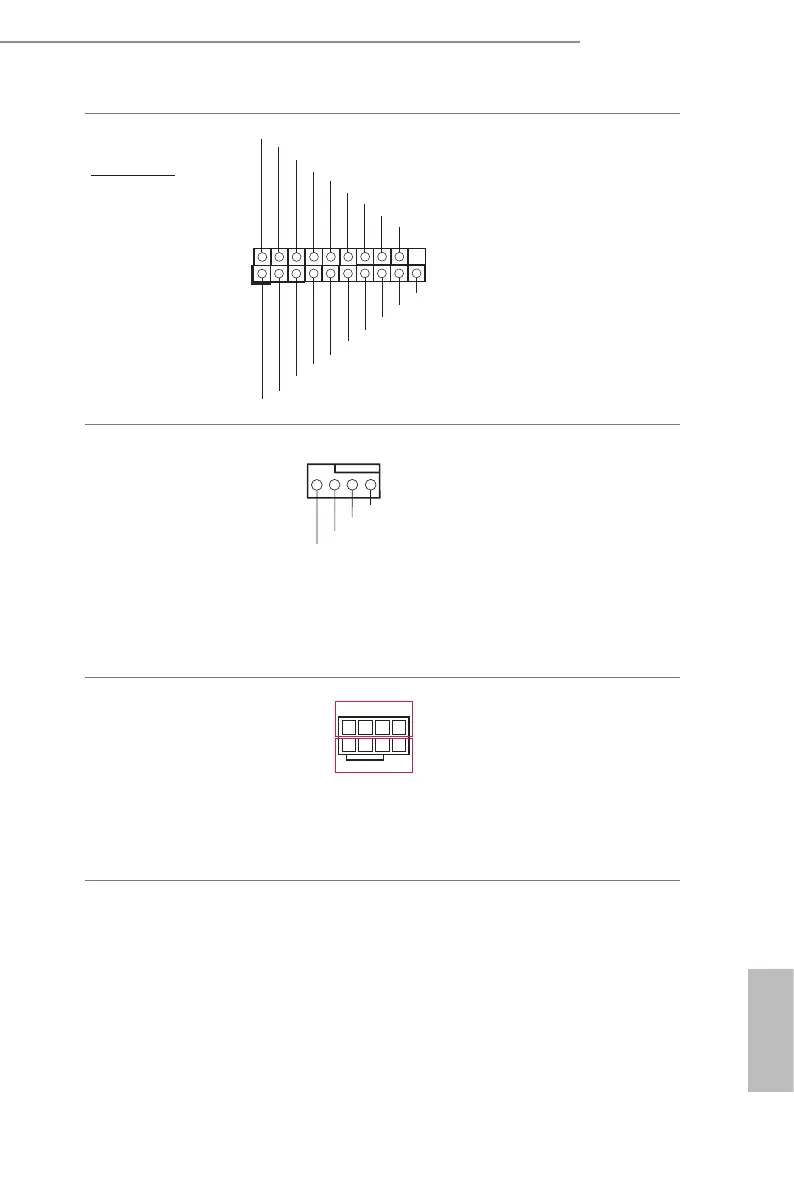

USB 3.2 Gen1 Header
Right-Angle:
(19-pin USB3_3_4)
(see p.6, No. 15)
Besides two default USB 3.2
Gen1 ports on the I/O panel,
there is one USB 3.2 Gen1
header on this motherboard.
îis USB 3.2 Gen1 header can
support two USB 3.2 Gen1
ports.
System Fan Connectors
(4-pin FAN1)
(see p.6, No. 7)
(4-pin FAN2)
(see p.6, No. 8)
(4-pin FAN3)
(see p.6, No. 9)
(4-pin FAN3)
(see p.6, No. 10)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
4 3 2 1
Please connect fan cables to
the fan connectors and match
the black wire to the ground
pin. All fans support Fan
Control.
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.6, No. 4)
(4-pin ATX12V2)
(see p.6, No. 3)
4
8
1
5
12V
GND
îis motherboard provides
one 8-pin and one 4-pin ATX
12V power connectors.
1
Dummy
GND
GND
Vbus
GND
GND
IntA_PA_SSRX+
Vbus
IntA_PA_D+
IntA_PA_D-
IntA_PA_SSTX+
IntA_PA_SSTX-
IntA_PA_SSRX-
IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PB_SSTX-
IntA_PBA_SSTX+
IntA_PB_D-
IntA_PB_D+
