E3C256D4I-2T
22 23
English

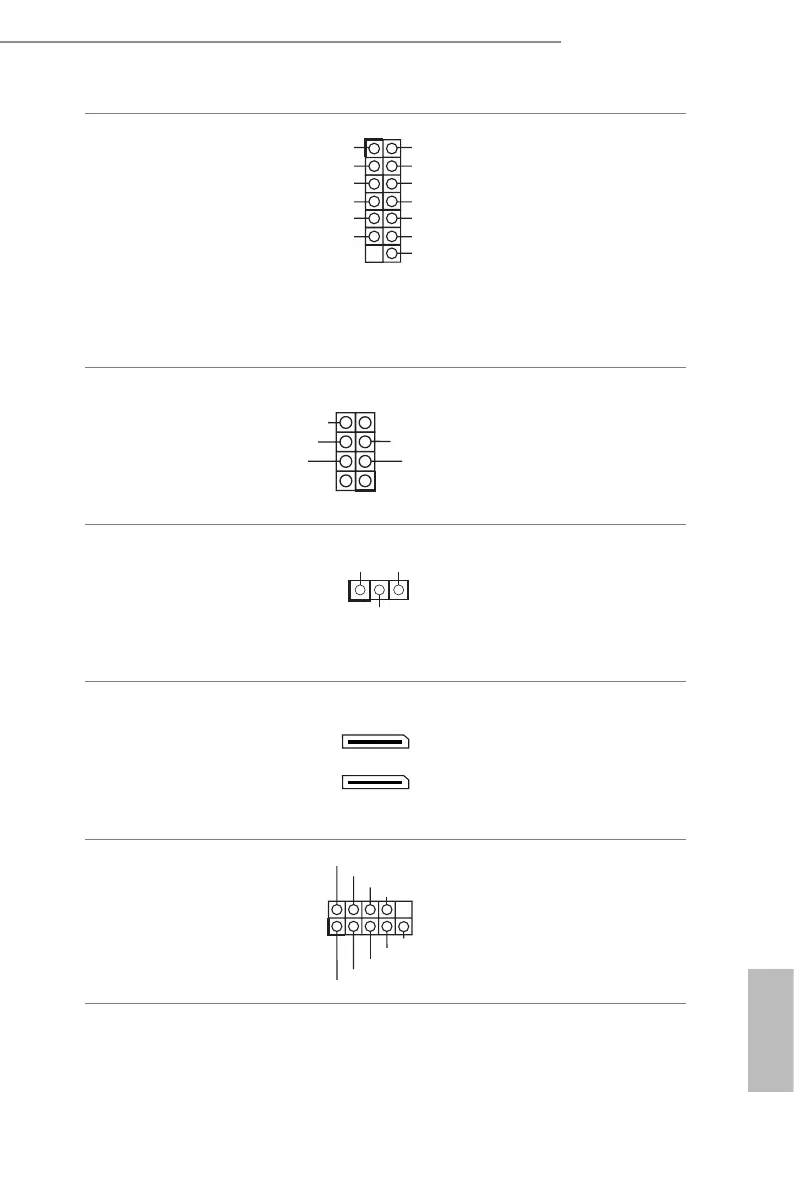

SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.6, No. 25)
1
SPI_DQ3
SPI_PWR
SPI_DQ2
SPI_CS0
Dummy
CLK
SPI_MISO
SPI_MOSIGND
SPI_TPM_CS#
RST#
RSMRST#
TPM_PIRQ
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
Serial General Purpose
Input/Output Header
(7-pin SATA_SGPIO1)
(see p.6, No. 13)
1
SLOAD
SCLOCK
GND
GND SDATAOUT
e header supports Serial
Link interface for onboard
SATA connections.
ermal Sensor Header
(3-pin TR1)
(see p.6, No. 15)
1
TR1 TR1
GND
Please connect the thermal
sensor cable to either pin 1-2
or pin 2-3 and the other end to
the device which you wish to
monitor its temperature.
OCuLink Connectors
(OCU1)
(see p.6, No. 10)
(OCU2)
(see p.6, No. 17)
O CU1
O CU2
Please connect PCIE SSDs or
OCulink-to-SATA x4 cable to
the connectors.
Serial Port Header
(9-pin COM1)
(see p.6, No. 21)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
is COM header supports a
serial port module.
