22 23
English
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+

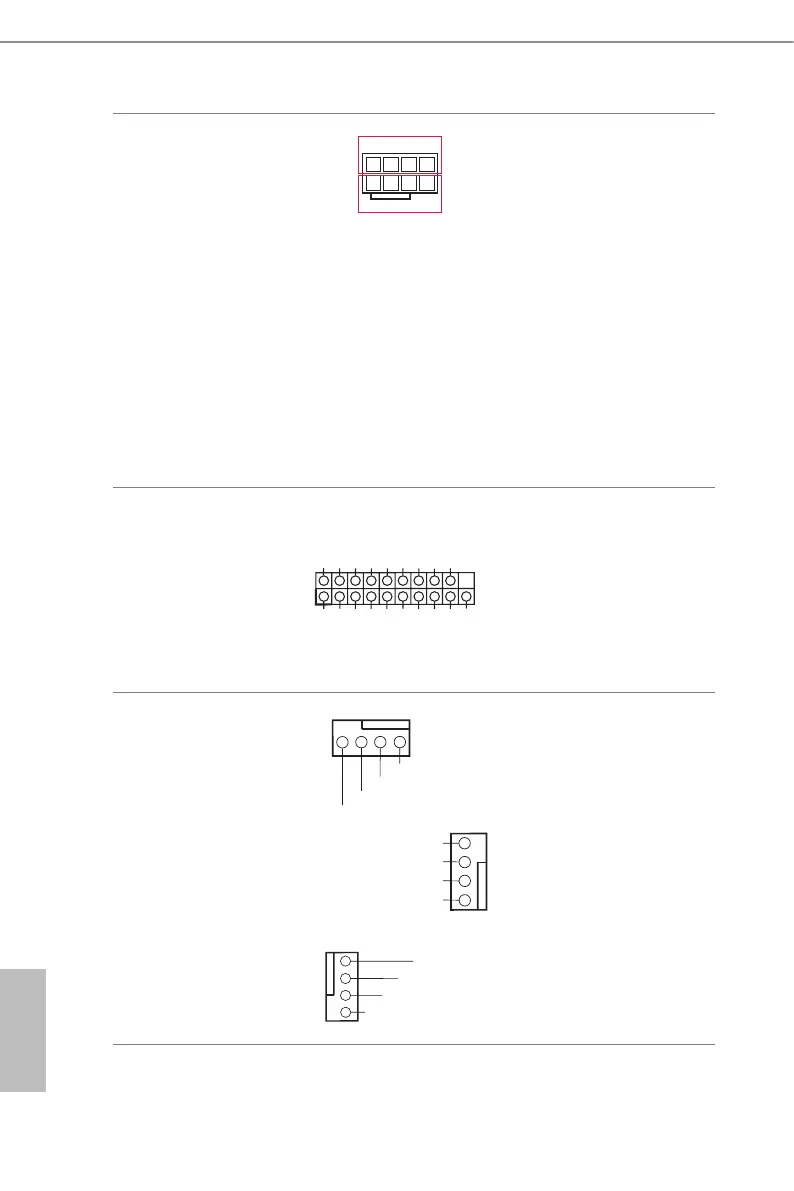

ATX 12V Power
Connector
(8-pin ATX12V2)
(see p.6, No. 4)
4
8
1
5
12V
GND
e motherboard provides one
8-pin 12V power connector
which is a required input for
either DC-IN 12V or ATX
+12V power source.
When using ATX power, it is
necessary to use a 24pin-to-
4pin power cable to connect
between the 24pin power
connector of PSU and the
ATX4PIN1 connector on the
motherboard for power supply
and signal communication.
USB 3.2 Gen1 Header
(19-pin USB3_3_4)
(see p.6, No. 14)
Besides two default USB 3.2
Gen1 ports on the I/O panel,
there is one USB 3.2 Gen1
header on this motherboard.
is USB 3.2 Gen1 header can
support two USB 3.2 Gen1
ports.
System Fan Connectors
(4-pin FAN1)
(see p.6, No. 22)
(4-pin FAN2)
(see p.6, No. 8)
(4-pin FAN3)
(see p.6, No. 9)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
4 3 2 1
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
1
2
3
4
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
4
3
2
1
Please connect fan cables to the
fan connector and match the
black wire to the ground pin.
All fans support Fan Control.
