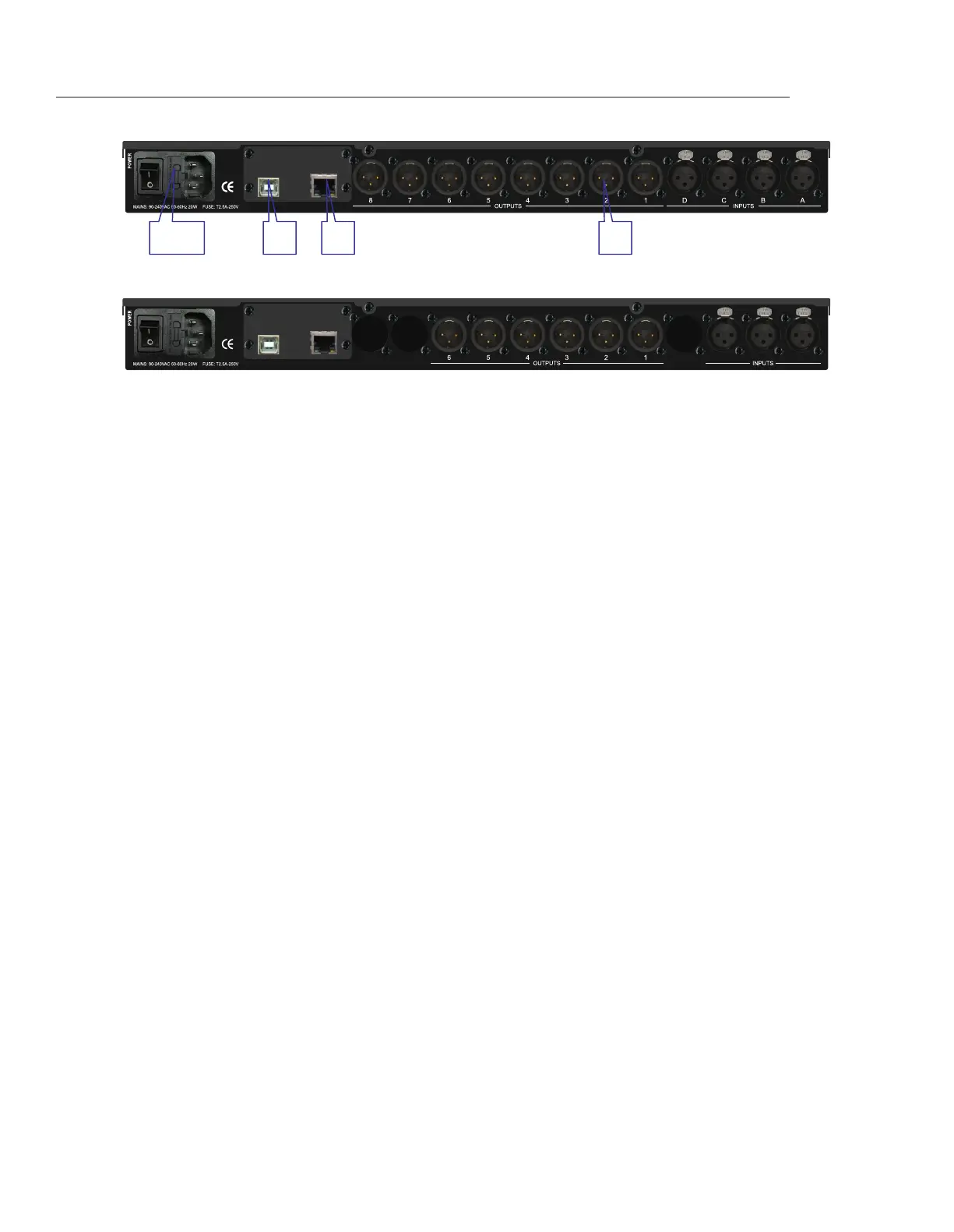

4.0 Rear Panel Functions
1 2 3
4
5 6
1. Main Power -
Connects via a standard IEC socket. A compatible power cord is
supplied with the unit. The voltage input is 90-240VAC, 50-60Hz.
2. Main Fuse -
T2.5A-250V. Slow blow type.
3. Power switch -
Controls power On/Off.
4. USB Control -
a standard Type B USB connector. Device driver from the provided
software CD must be installed prior to usage.
5. Ethernet -
RJ45 connector for Ethernet control. The device should be connected
to a router/switch/hub via a straight through CAT-5 cable.
6. Analog Inputs and Outputs -
Separate 3-pin connectors2 are provided for each
audio input and output. The device's output stage
employs the balanced impedance topology.
All I/O connectors have pin 1 as ground (shield),
pin 2 as + and pin 3 as -.
