53V 11/23

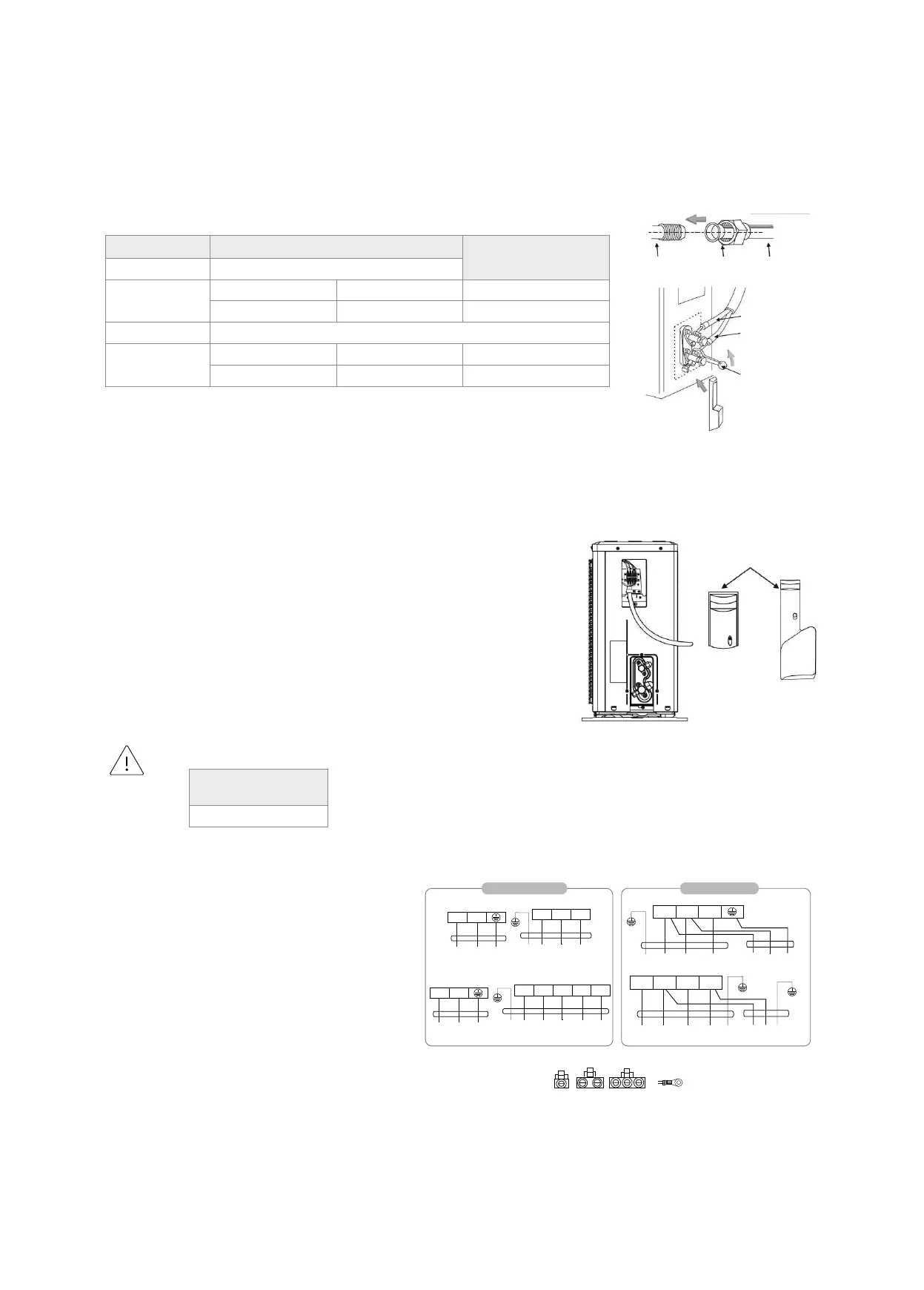

INSTALL THE CONNECTION PIPE
Connect the Outdoor Unit with Connecting Pipe: Aim the counter-bore of the connecting pipe at the stop valve, and
tighten the Taper nut with ngers. Then tighten the Taper nut with a torque wrench.
When prolonging the piping, extra amount of refrigerant must be added so that the operation and performance of the
air conditioner will not be compromised
Note:
1. This table is for reference only.
2. The joints shall not be reused, unless after re-aring the pipe.
3. After installation, check the stop valve cover whether be xed effectively.
WIRING CONNECTION
1. Loosen the screws and remove E-parts cover from the unit.
2. Connect the cables respectively to the corresponding terminals of the
terminal board of the outdoor unit (see the wiring diagram), and if there
are signals connected to the plug, just conduct butt joint.
3. Ground wire: Remove the grounding screw out of the electric bracket,
cover the grounding wire end onto the grounding screw and screw it into
the grounding hole.
4. Fix the cable reliably with fasteners (Pressing board).
5. Put the E-parts cover back in its original place and fasten it with screws.
Insert a circuit breaker with sufcient power and observe the following table:
WIRING DIAGRAM
The diagram are for reference only.
Please refer to the detailed wiring diagram
adhered on the unit which you purchased.
Stop valve
Taper nut Connection
pipe
Liquid side pipe
Gas side pipe
Spanner
E-parts cover
Variable speed
Connector
If there is a connector, connect it directly
Constant speed
To indoor unit
To indoor unit
To indoor unit
To indoor unit
To power
To power
To power
To power
L
N
S
L
Lo
N
L
N
1 3
1 3
4
5
N(2)
N(2)
L
N
S
Piping lenght Amount of refrigerant to be added
Amount of refrigerant
for the unit
Not needed
<3M
CC≤12000Btu 20 g/m ≤1 kg
CC≤18000Btu 40 g/m ≤2 kg
3-5M Not needed
5 - 15M
CC≤12000Btu 16 g/m ≤1 kg
CC≤18000Btu 24 g/m ≤2 kg
Magnetothermic
switch power
14K - 16A
