V 07/24

50

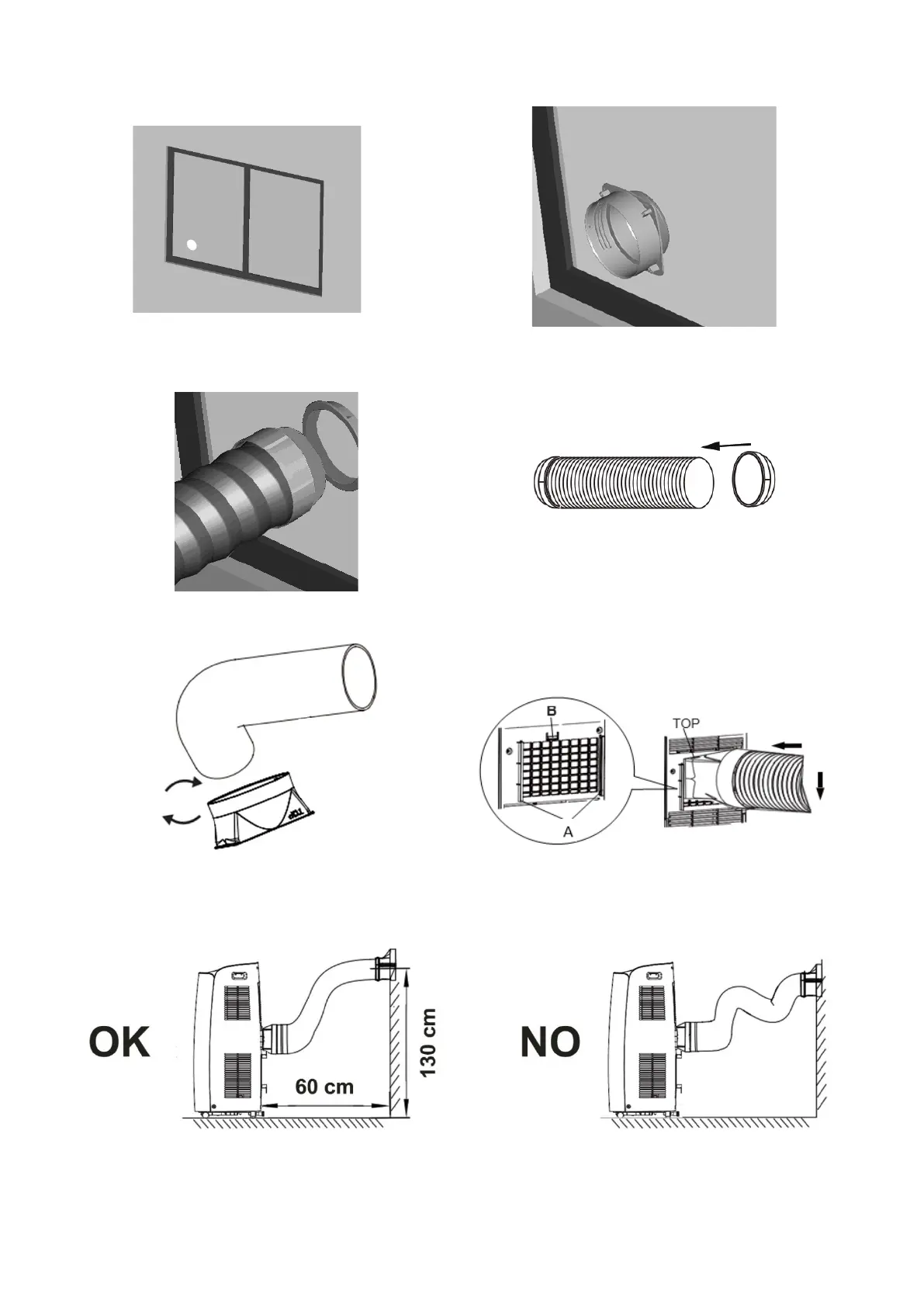

USE WITH WINDOW UNIT KIT

1. To make the hole in the glass it is advisable to take

the porthole kit accessory to the glazier.

2. Insert the window unit into the window.

3. Insert the round fitting into the retractable flexible pipe and

insert the latter with its round fitting into the window unit

without the plug.

4. Insert the round fitting onto the flexible pipe.

5

.

Insert the flat fitting onto the hose.

6. Slide the flat fitting downwards into the grooves (A) and

secure it with the hook (B).

The upward-facing side of the flat fitting is marked "TOP".

7. The outlet must be between 40 cm and 130 cm above the ground. Avoid tight curves or bends in the flexible hose.

8. If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit.
