49

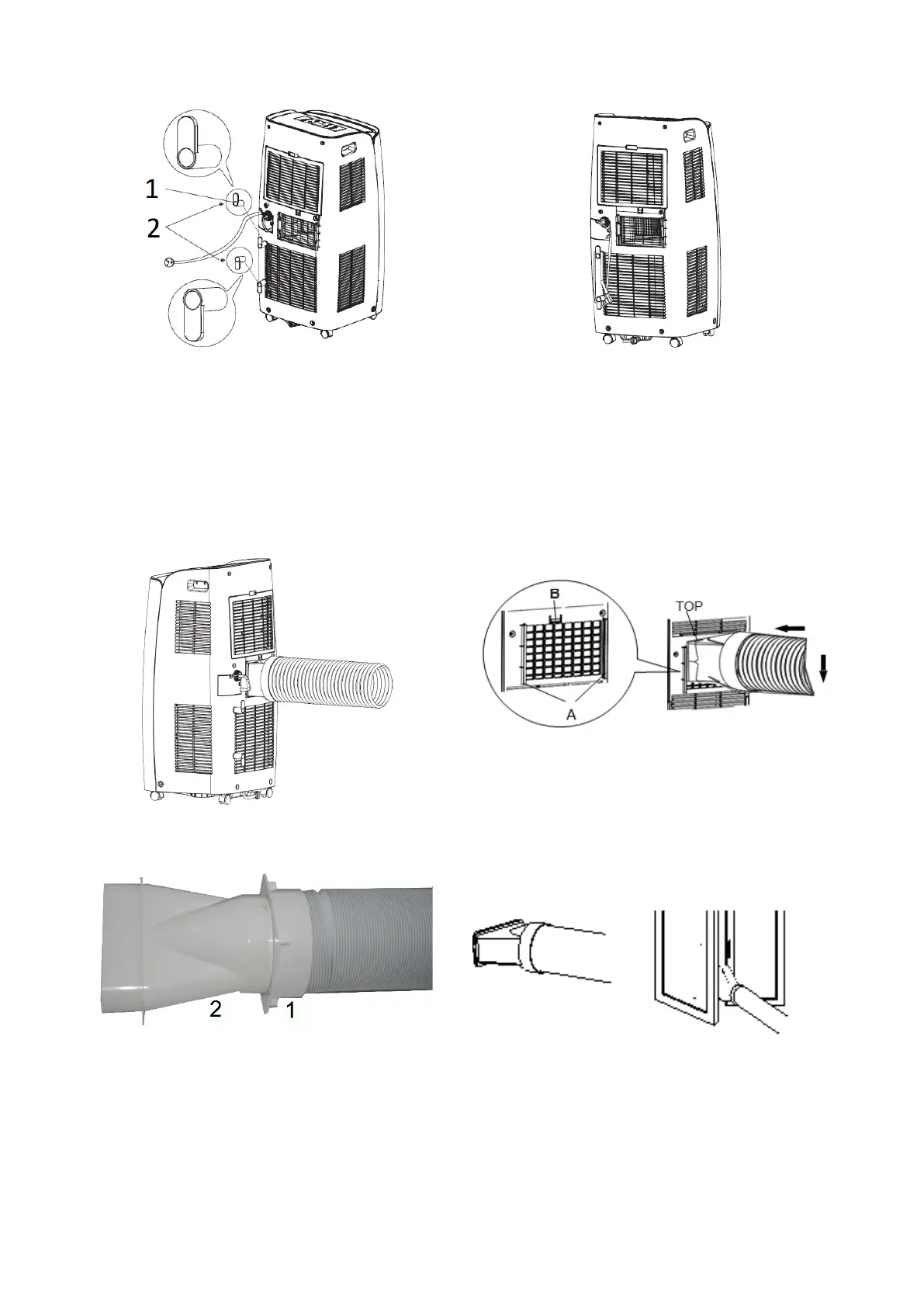

INSTALLATION OF CORD WINDER HOOKS
Install the cord winder hooks to the back of the unit using the
screws, as shown in the figure.
The hooks must be positioned facing upwards and
downwards.
When the appliance is not being used, wind the power
cord around the hooks.
Wind the cord around the hook.
USE WITH END FITTING FOR WINDOW
Connect the flat fitting to the hose, extend the hose as far as
necessary for reaching the outside and it connect to the back
of the air conditioner.
Next, slide the flat fitting downwards into the grooves (A)
and secure it with the hook (B).
The upward-facing side of the flat fitting is marked "TOP".
Connect the round window fitting (1) to the end of the hose
then the end fitting for the window (2), previously obtained by
joining parts A and B
Open the windows and lock one of the two leaves with the
handle.
Place the end fitting against the fixed leaf of the window,
and draw the other leaf towards it.
1. Hook
2. Screw
