18

(Continued)

INSTALLATION INSTRUCTIONS

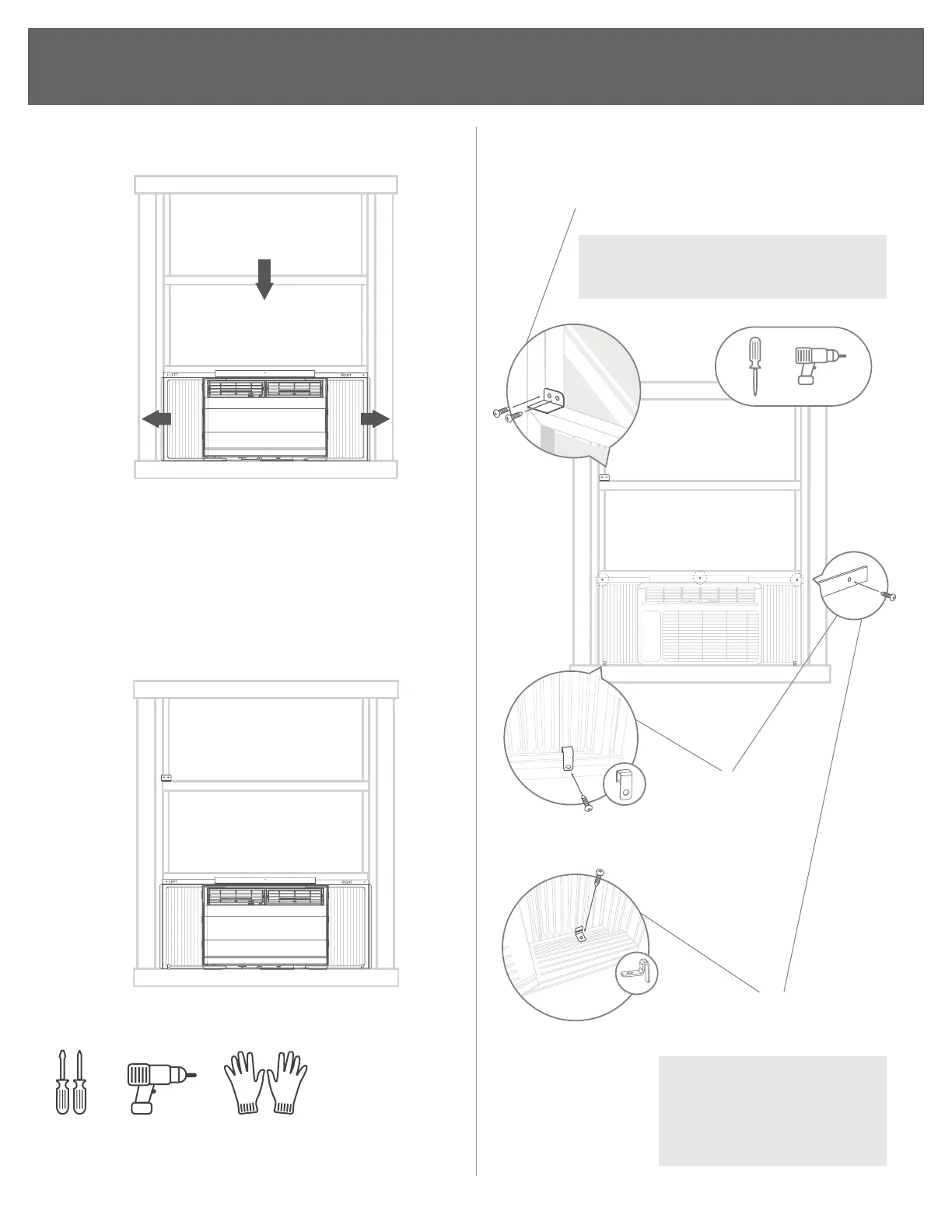

3. Close the window down onto the AC, and pull

the panels to the side of the window.

Once the AC is centered and the bottom bar

is successfully positioned, close the window

down onto the AC, behind the top bar. See

diagram above. Pull the panels to the side of

the window.

STEP 4

SECURE THE AC

What you need:

1. Drive locking screws.

Follow the below instructions and drive the screws.

RIGHT

LEFT

Drive 1/ 2" (12.7 mm) locking screws through the

frame lock and into the sill (Only wooden windows).

1/8 " (3mm) pilot holes

before driving screws.

Drive 1/2" (12.7mm)

locking screws through

frame holes into window

sash (Only wooden

windows).

Drive 1/ 2" (12.7 mm) locking screws

through the frame lock and into the

window sash (Only Vinyl-Clad windows).

NOTE: To prevent window sill from splitting, drill

1/8 " (3mm) pilot holes before driving screws.

NOTE: Before driving the screws,

use a drill to drill 5 holes through

the holes in the frame lock and

frame extensions into the windows

sash as shown.

OR
