Clearmountain’s 8068 User’s Guide

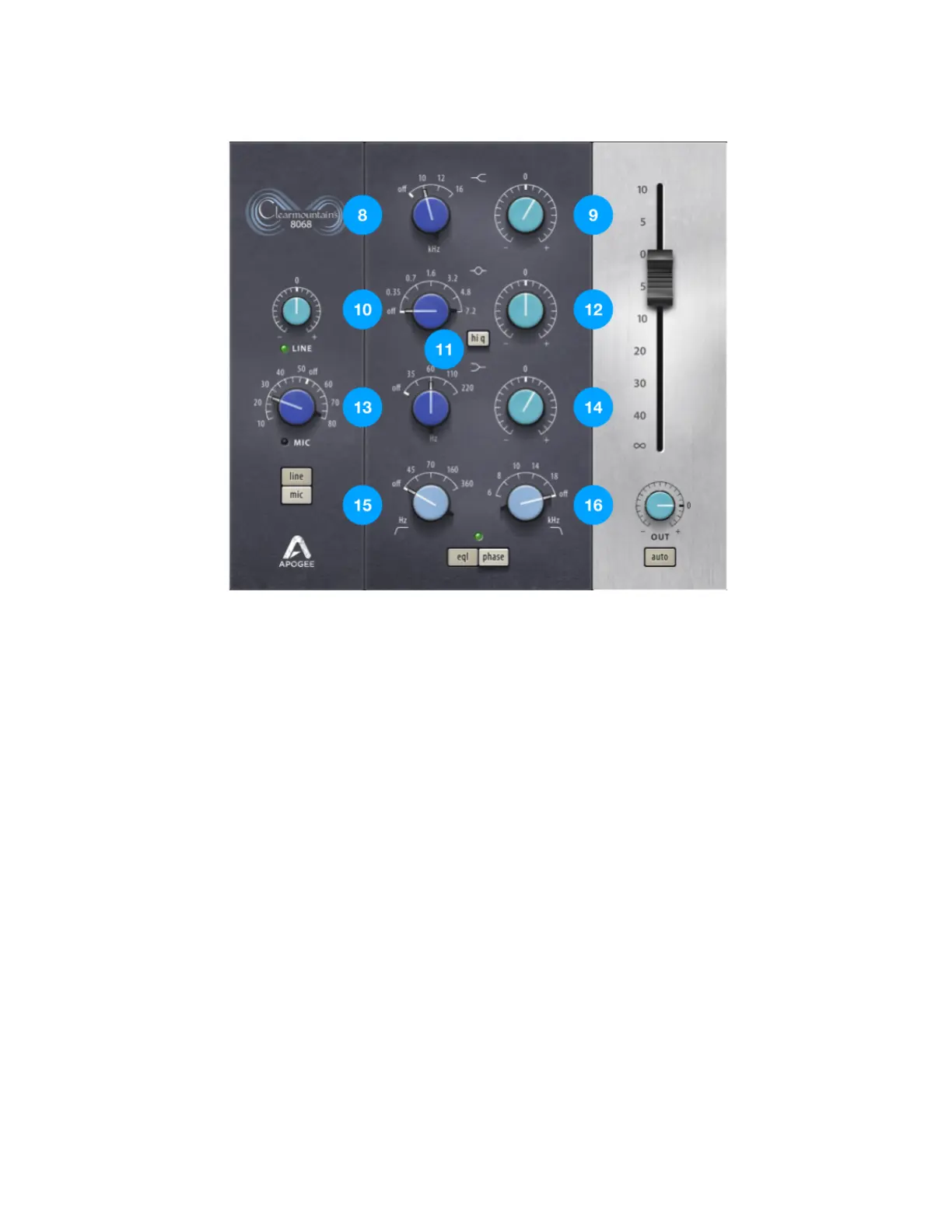

EQ Adjustments
8) High Shelf Frequency
a) Select the frequency above which frequencies are either boosted or cut.
i) Off, 10 kHz, 12 kHz, 16 kHz
9) High Shelf Gain
a) Boost or cut above the selected frequency. Bypassed if high shelf frequency is set to off.
i) 16 dB of boosting or cutting can be applied to taste and depending on need and
application.
10) Midrange “Peaking Bell” Frequency
a) Applies a peak or dip at the specified frequency
i) Off, 0.35 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHZ, 7.2 kHz
11) HI Q
a) Changes the shape of the peaking bell curve making it narrower thus effecting fewer frequencies,
but more extremely.
12) Midrage Gain
a) Provides 12 dB of boost or cut, in its normal operation, 18 dB with Hi Q engaged.
13) Low Frequency Shelf
a) Select the frequency below which frequencies are either boosted or cut then maintained.
i) Off, 35 Hz, 60 Hz, 110 Hz, 220 Hz
14) Low Frequency Gain
a) Provides up to 16 dB of boost or cut.
15) Highpass Filter
a) Cuts frequencies by 18 dB per octave below the specified frequency AKA only frequencies pass
above this frequency.
7
