Clearmountain’s 8068 User’s Guide

a) Want to see what happens when you drive the mic gain? Auto gain balancing keeps the

levels consistent so your ears are not deceived by changes in volume.

b) Button is greyed out when bypassed in line mode.

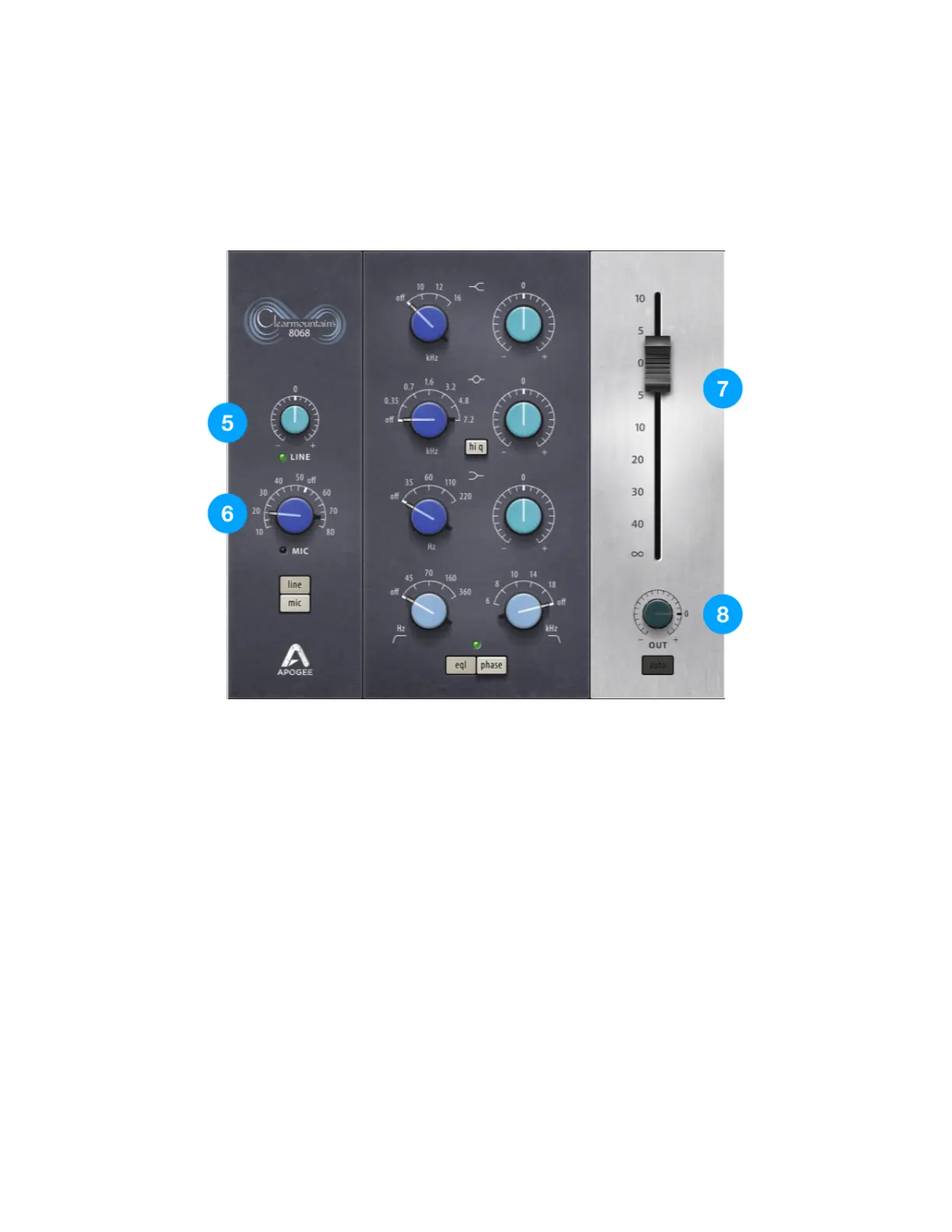

Input and Output Knobs & Faders

5) Line level Trim

a) Changes input level when in line mode.

6) Mic Preamp Gain

a) In mic mode, this provides increasing levels of saturation, grit and compression. At extreme

settings distortion and fuzziness snarl.

i) Off mode = bypasses input thus muting the channel while in mic mode

ii) Mic gain options move in 5dB steps and range from a minimum of 10dB to a maximum of

80dB.

iii) While some may wonder about the off setting in the middle of the dial, this exists on the

original unit to add an additional gain stage on the settings occurring after 50dB.

7) Output Fader

a) Changes output level, feature is not tied to auto gain adjustment

i) Fader is logarithmic, doubling in loudness per every 10dB increase.

8) Output Trim (Mic mode only)

a) Changes output level, in auto mode, level changes automatically with changes made in line level

or mic mode. Knob is greyed out in line mode.

i) Range is +10dB to -80dB in .1dB steps

ii) Output trim will not respond to user input when auto gain is engaged.

6
