TCS-II API
2
1.0 Introduction

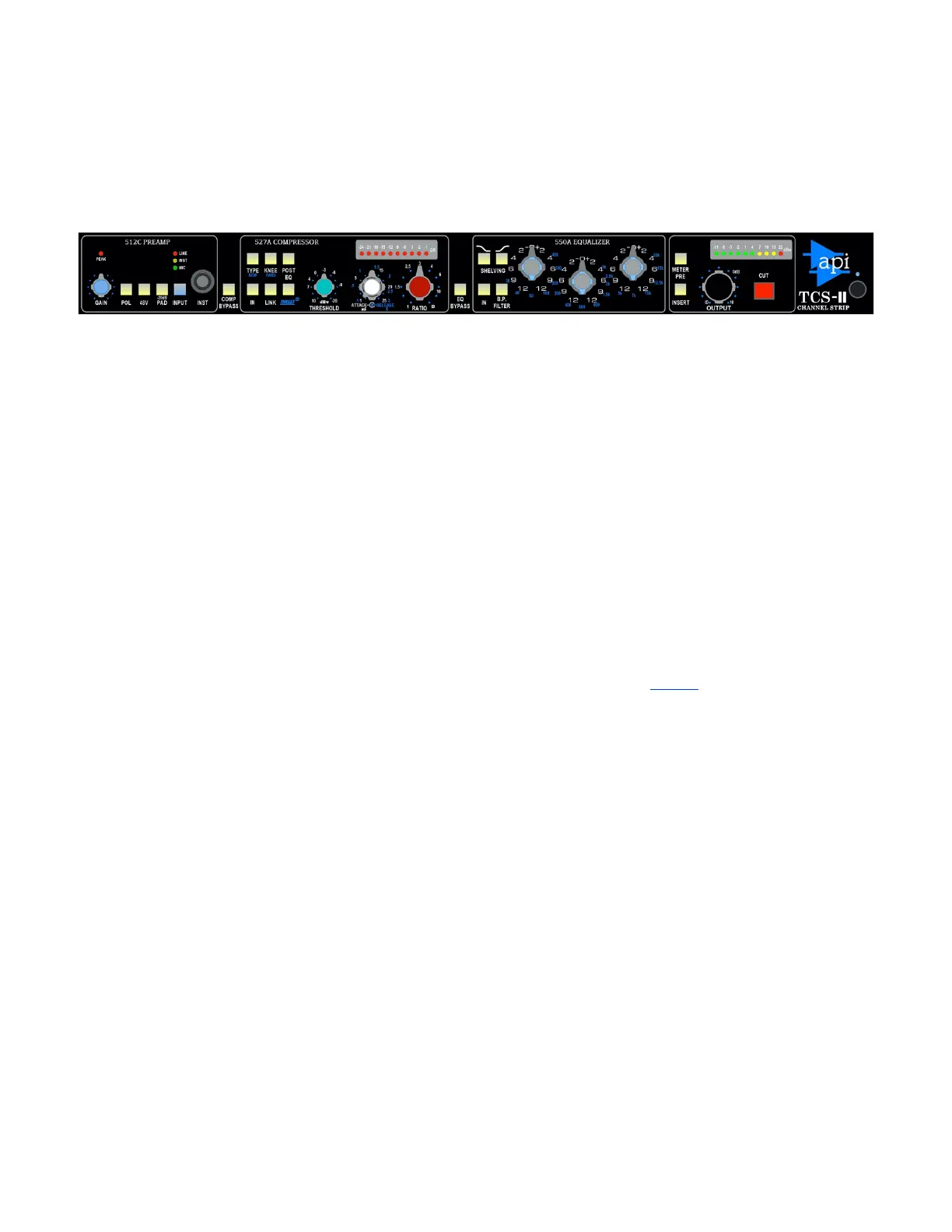

The API TCS-II (The Channel Strip II) is a complete input module with a 512C Preamplifier, 527A
Compressor, 550A precision EQ, and 325 output level section. With extensive signal metering, multiple
balanced insert points and an output mute switch, the TCS-II contains the best features of a large
console input channel in a single rack space. It's the perfect choice for anyone looking for that high-
performance API console sound.
1.1 TCS-II Overview
Features:
• API 512C Preamplifier
• API 527A Compressor
• API 550A Equalizer
• API 325 Line-Driver (output section)
• Internal routing supports multiple configurations
• Comprehensive rear panel interface with multiple insert points
• 10-segment LED gain reduction meter
• 10-segment LED level meter displays preamp and output levels
• Output clips at +30dBu
• Transformer outputs
The result of thoughtful engineering, the TCS-II includes everything needed to record an audio signal.
It all starts with the famed 512C Preamplifier, which includes the benefit of additional Mic, Line or
Instrument input switching. Next is the 527A multi-mode compressor with fully adjustable Threshold,
Attack, Release, and Ratio controls on detented pots. The patented
THRUST
®
circuit in the 527A
Compressor gives your track the "in-your-face" punch that has made this circuit an award winner. Also
included in the TCS-II is probably the most recognized and revered API EQ of all time, the 550A three-
band equalizer with its switchable frequencies and 12dB of boost or cut. The 550A Equalizer's High
and Low frequency bands can be individually switched to be shelving EQs, and the "B.P. Filter" switch
inserts a 50Hz to 15kHz Band-Pass filter. At the output of the unit is the 325 Line-Driver, taken
directly from API console designs with an output level pot and 10-segment level meter. The meter can
also be switched to show the output level of the preamp. Each of the TCS-II's processing pieces can
be switched in or bypassed individually and the 527A can be routed to be post EQ. Additional features
include a side-chain input and the famous API 2520/transformer combination.
