ProfiHub B2FOR+ / B4FOR+ User Manual | August 2019 | ©HMS Industrial Networks 9/52
1.1 Product Features
• PROFIBUS DP Slave for network diagnostics and statistics (DP-V0, configurable with modules)
• Diagnostic information and statistics available in ComBricks system with WEB-based interface
• One Fiber Optic channel, split into two ports
• 2 or 4 galvanic isolated RS485 channels
• Fiber Optic redundancy with signal strength and ring status (LEDs, DP-V0 and WEB-based on
ComBricks system)
• RS485 Cable redundancy
• Redundant power supply
• Robust repeating mode
• Supporting line/bus, ring, star and tree topology
• Alarm contact
• Monitoring port on all RS 485 channels
• Short circuit protection on all RS 485 segments
• Configurable grounding system
• Glitch recovery
• Low power consumption
• No limit in cascading RS485 channels (only limited by busparameters of the master)
• Integrated Termination per channel

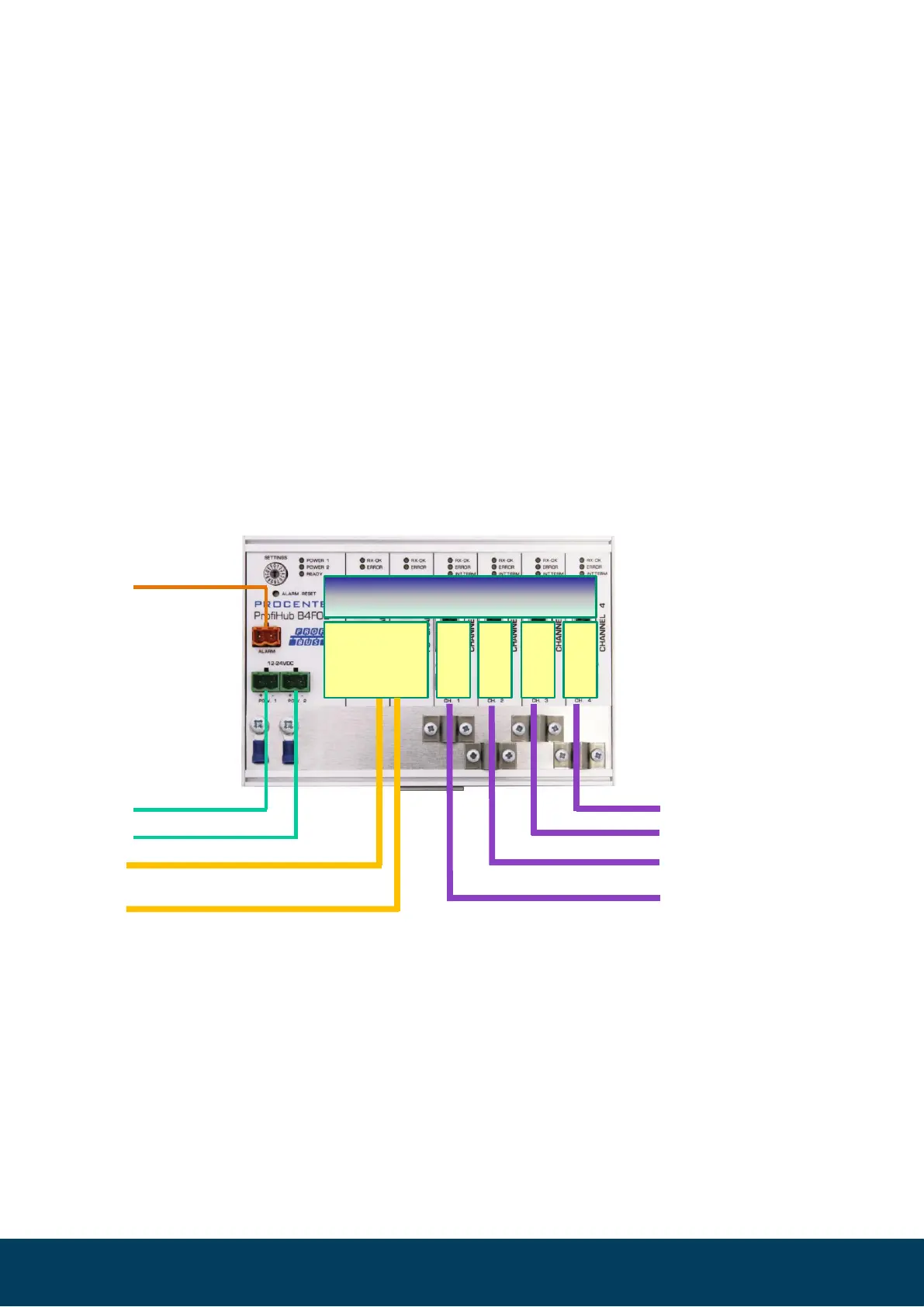

Fig. 2 - ProfiHub connections
Intelligent Internal Backbone
C1 C2 C3 C4
Channel 1 to 4
Power supply 2
Power supply 1
Alarm contact
FO1
Port 1 and 2
FO Channel 1
