ProfiHub B2FOR+ / B4FOR+ User Manual | August 2019 | ©HMS Industrial Networks 10/52

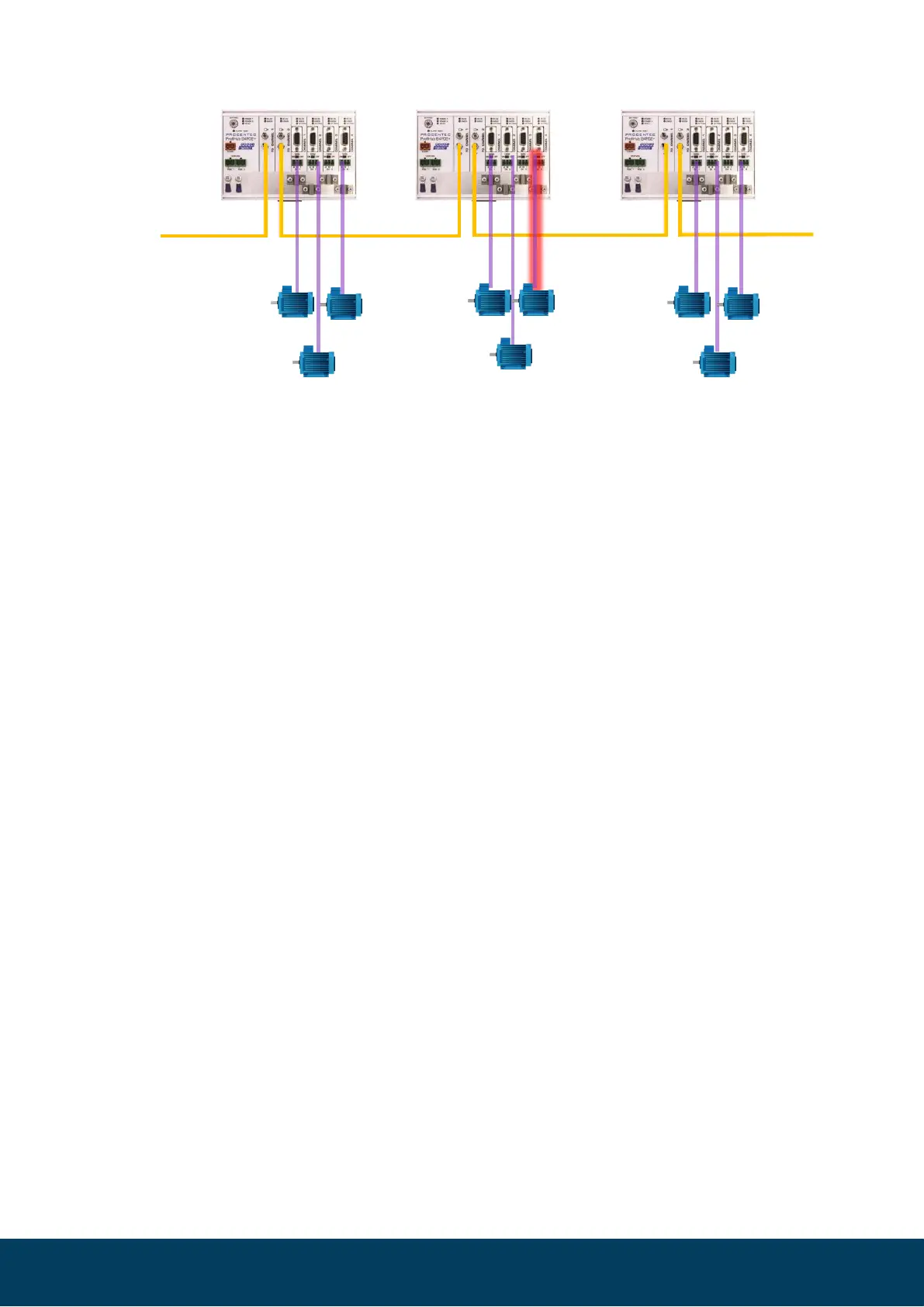

Fig. 3 - Long spur lines to instruments and the possibility to remove/insert them during operation. Short circuit protection on each spur
line is automatically provided.
1.2 Application areas
• Create Fiber Optic backbones and rings
• Dynamic spur lines to actuators, flow meters and pH analyzers
• Removable drives and motors
• Pull/Plug motor control centers (drawers)
• Roof mounted devices in tank farms
• Barrier for non-galvanic isolated equipment
• Networks with requirement for High Availability/uptime
• Large star/tree structured networks
1.3 Additional Benefits
• Hot slave insertion and removal during operation
• Short circuit protection on each Channel
• Option to create a redundant path to other Hubs or ComBricks
• Compact and robust construction
• Status and error LEDs (per Channel)
• Suitable for all DP cables
• Conveniently arranged networks
• Easy extendable installations
• On-board DB9 female connector on each channel for maintenance activities
• Cost Savings
DP Fiber Optic Backbone
Wiring problems
do not spread to
the other spur lines
Each spur line
can be 200m
at 1,5 Mbps
