Discrete 4 Pro Synergy Core User Manual

Page 45

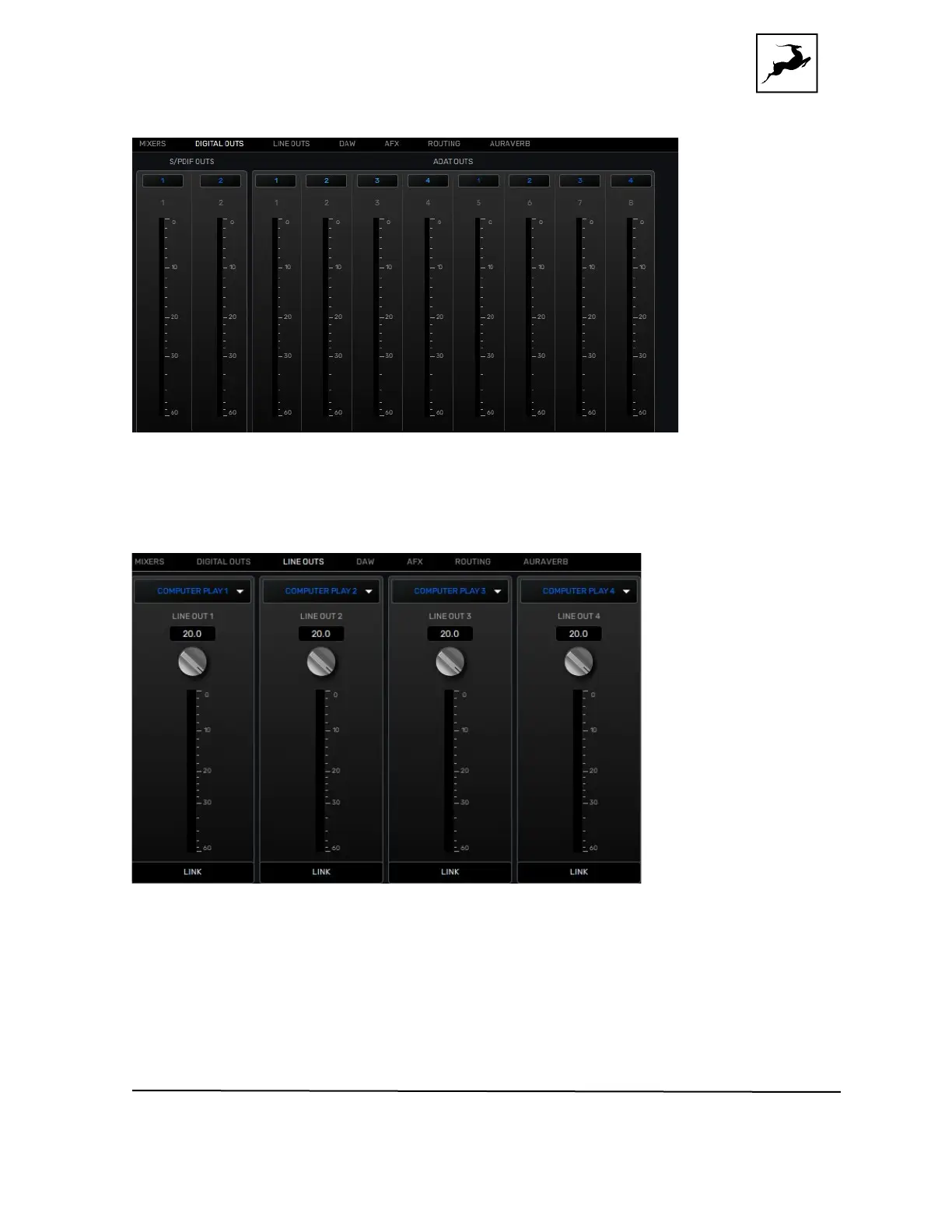

DIGITAL OUTS

This tab lets you route all available audio sources to the ADAT and S/PDIF digital

outputs. Each ADAT and S/PDIF output channel has a dedicated Input Selector and

Peak Meter.

LINE OUTS

This tab allows you to route all available audio sources and send them out of the four

line outputs.

Each channel strip contains the following:

• Input selector which allows you to choose the audio source you want to send.

• Trim knob with adjustment between 14 and 20dBu.

• Peak meter showing the source signal level in real time.

• Link button which allows you to link all outputs and adjust their trim together.
