AJ400 GDI
Injector Cleaner & Tester
ANCEL
II. Structure of Injector Cleaner & Tester
2.1 Overview

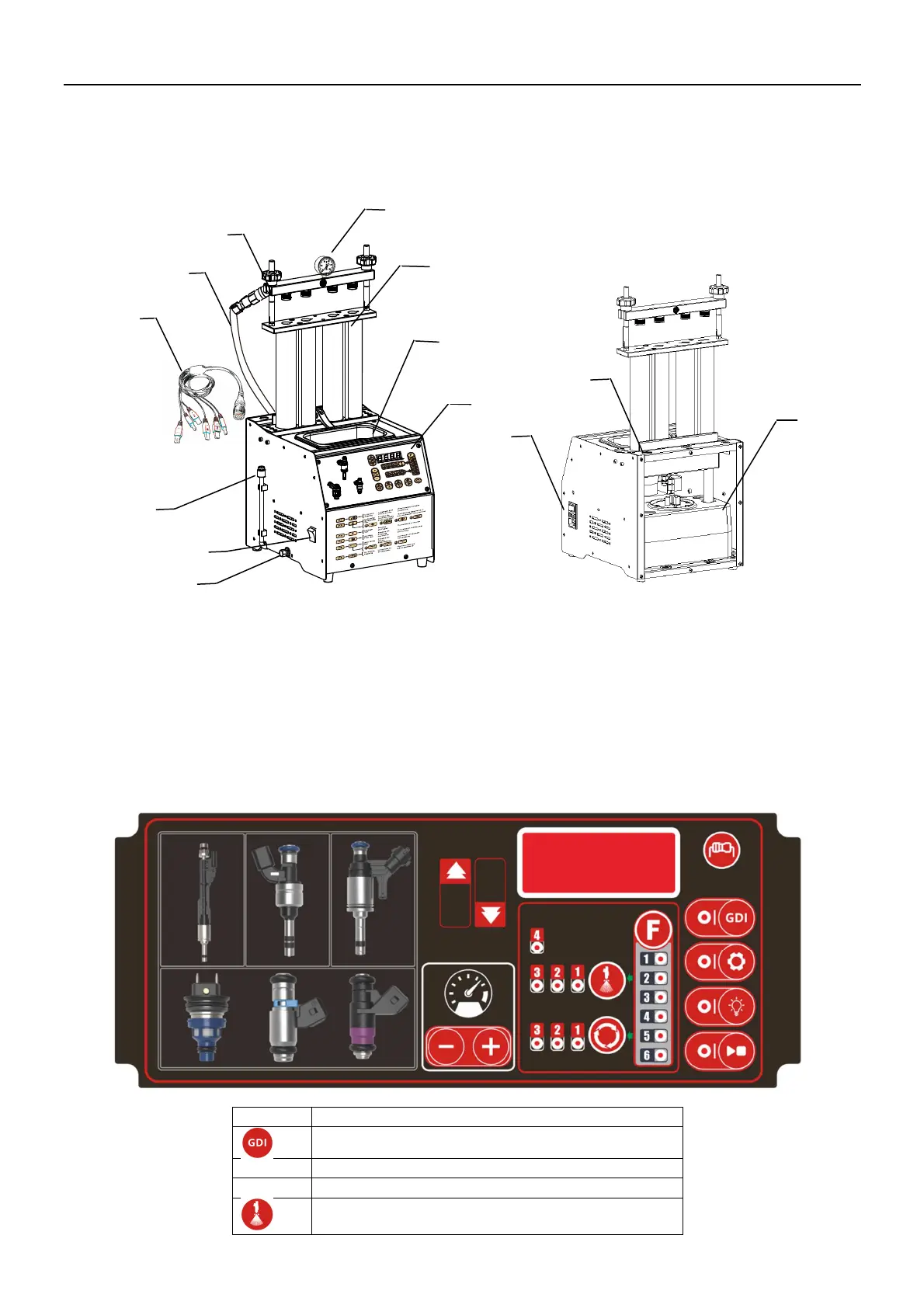

1-Pulse line; 2-Fuel separator assembly; 3-Observation window tube; 4-Control panel; 5- Fuel pressure gauge;
6-Fuel outlet pipe; 7- Ultrasonic cleaner ; 8- Ultrasonic cleaner switch; 9- Liquid level indicator tube (test liquid
drain tube) ; 10-Cleaning liquid drain port; 11- Test liquid addition port; 12-Fuel tank; 13-Power switch
• Attention: there may be slight difference between the illustrations in this manual and the actual product. Subject
to actual product.
2.2 Control Panel
Key Function Description [en, es, ru, pt]
GDI injector test mode
F->1
Ultrasonic cleaning
F->2
Uniformity & Spray ability test
-
>1
RPM
10
9
1
2
8
1
1
3
7
4
5
1
2
6
13
