Installing and Configuring Your AV Equipment
N2312/N2322 User Manual
15
4.
Once the Decoders and displays are connected and powered up, the LocalPlay screen appears on the displays.
NOTE: If the LocalPlay screen does not appear, refer to the chapter Troubleshooting on page 56
for more guidance.
NOTE: In order for the unit to receive PoE, it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing
Equipment) port. PoE does not pass through the daisy chain (P1) port.
CAUTION: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building
use only.
Step 3: Connecting Encoders to the Network and Conf iguring Stream
Settings
1.
Using a Cat-5 cable, connect your N-Series Encoder’s P0 port to a PoE-enabled switch. In non-PoE applications connect a 12V
regulated power supply (N9312) to the two-pin terminal block plug connector (labeled +12V 2A).
NOTE: In order for the unit to receive PoE, it must be connected to a switch or other equipment that has a PoE PSE port.
2.
In N-Able, select the Unit Management tab and click the Auto Discover button (if the table has not already populated itself
with the installed units). See Figure 10
.

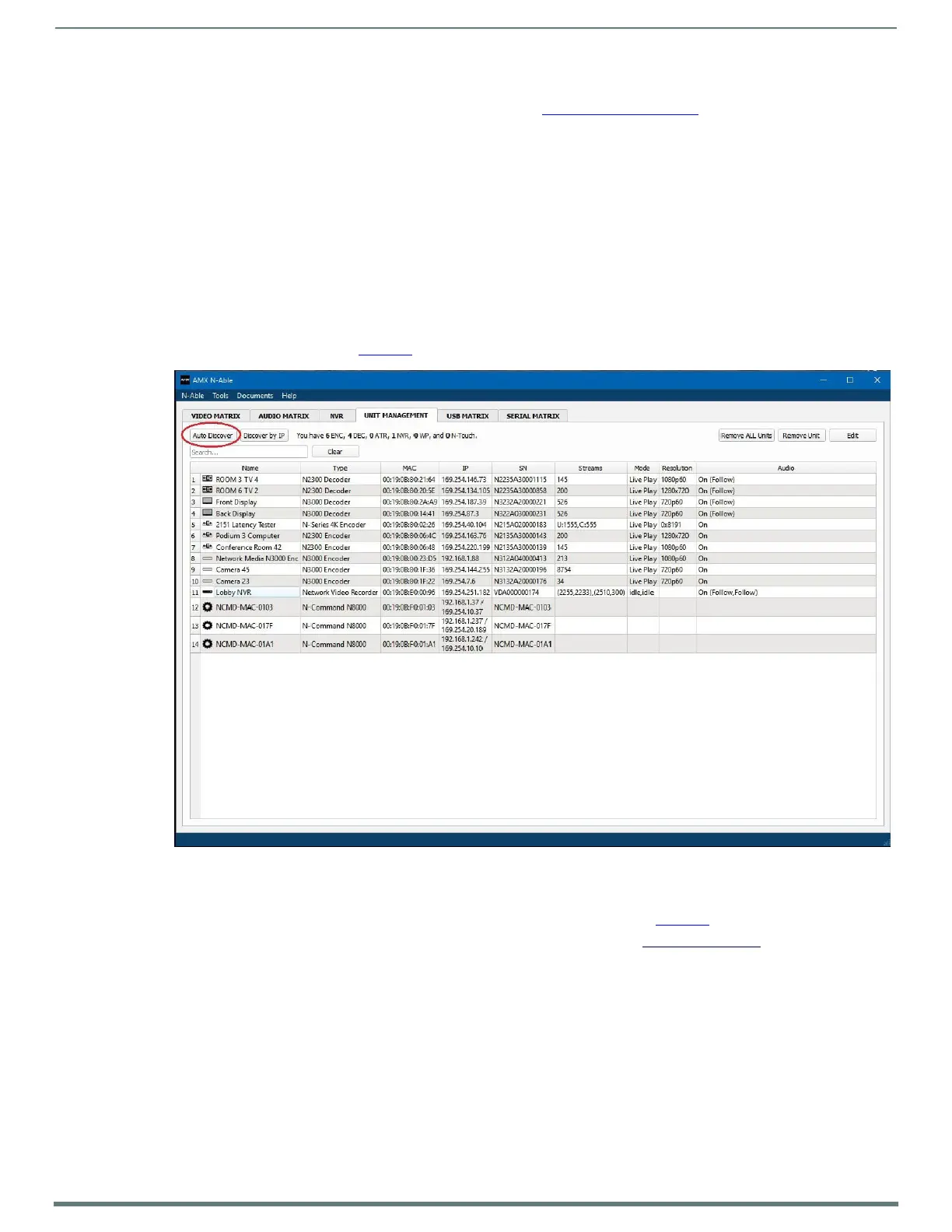

FIG. 10 Unit Management Page
3.
Find your Encoder in the list. N2300 units are displayed on the following tabs:
•
Unit Management tab — N2300 units have N2300 Encoder/Decoder listed in their Type fields.
•
Video Matrix tab — N2300 units are found on the N2300 sub-tab (as shown in Figure 11).
NOTE: If using multiple Encoders in your set up, it is important to plug in and configure one Encoder at a time. All Encoders come pre-
configured to use stream 2300. As you add Encoders to the network, you will need to set them up to use different streams.
