GOBOS SPECIFICATIONS
IMPORTANT NOTICE REGARDING CUSTOM GOBOS
Due to the high temperature optical system, special BOROFLOAT glass material and design
requirements are required.
Because of the varying gobo manufacturing processes and tolerances, it is highly recommended that
a gobo and gobo holder sample from the fixture be provided to the custom gobo vendor for accurate
sizing. Gobo specifications below including diameter, thickness, and materials have been tested and
are compatible in this fixture.
Using custom gobos that do not match the gobo specifications below is not recommended, and any
damage to the fixture as a result of using a custom gobo is NOT covered under warranty.
Extended testing of custom gobo designs is highly recommended prior to using. PLEASE CONTACT
ADJ CUSTOMER SUPPORT FOR FURTHER INFORMATION.
GOBOS 1, 2, 3, 5, 6, 7 ARE SECURED IN THE GOBO HOLDER
WITH A RETAINER SPRING AND HIGH TEMPERATURE SILICONE
SEALANT.
GOBO 4 IS SECURED WITH A HIGH TEMPERATURE SILICONE
SEALANT ONLY, NO RETAINER SPRING.
NO METAL BEZELS ARE USED TO SECURE ANY OF THE
FACTORY GOBOS.

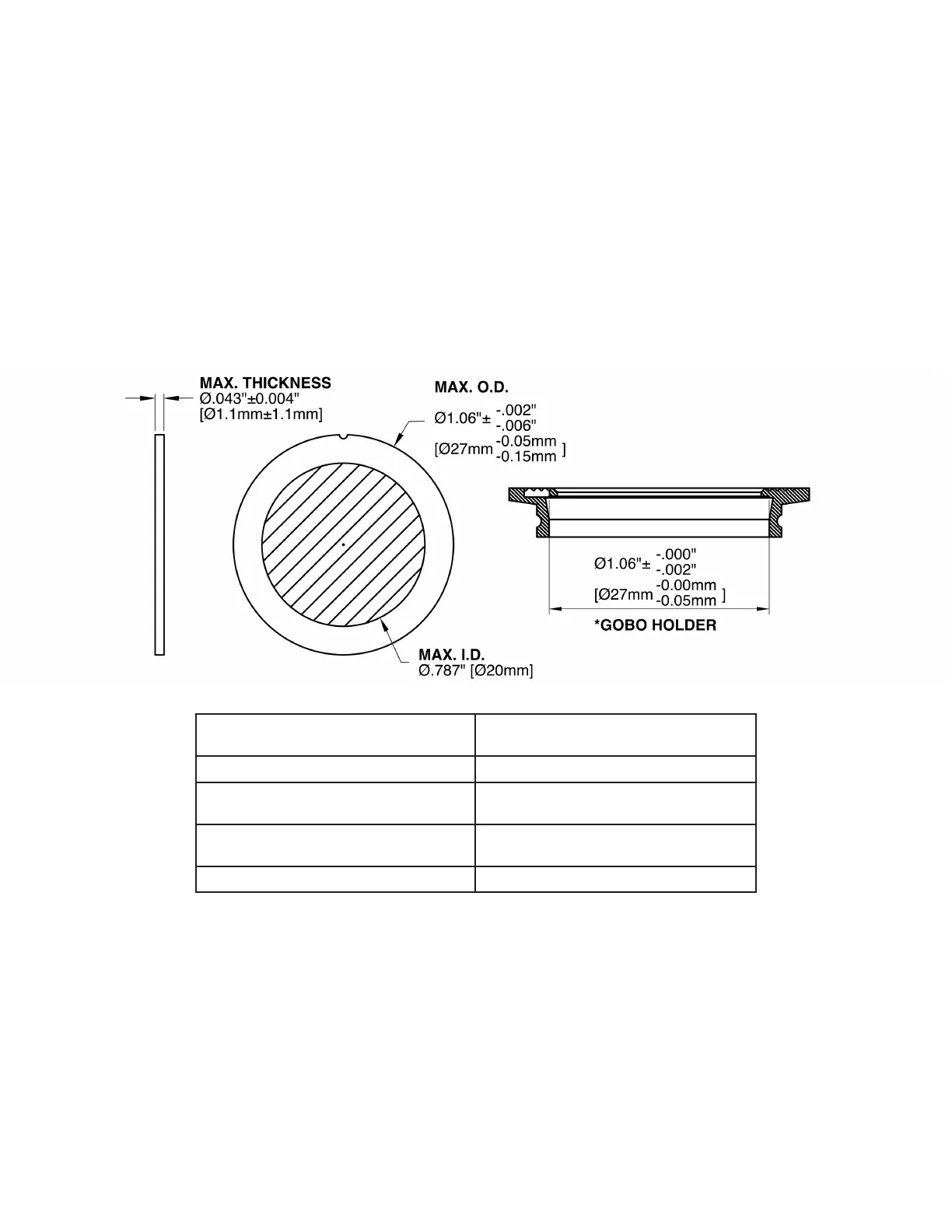

O.D. (Max. Outer Diameter)
Ø1.06in.-0.006in.
[Ø26.8mm-0.15mm]
I.D. (Max. Image Diameter Ø.79in. [Ø20.0mm]
Gobo Holder Diameter
Ø1.06in.-0.006in.
[Ø27.0mm-0.05mm]
Thickness
.043in.-0.004in.
1.1mm±0.1mm
Material BOROFLOAT GLASS
