TORQUE SETTINGS FOR SCREWS
ALL SCREWS MUST BE TIGHTENED WITH A TORQUE DRIVER. All screws are Allen head

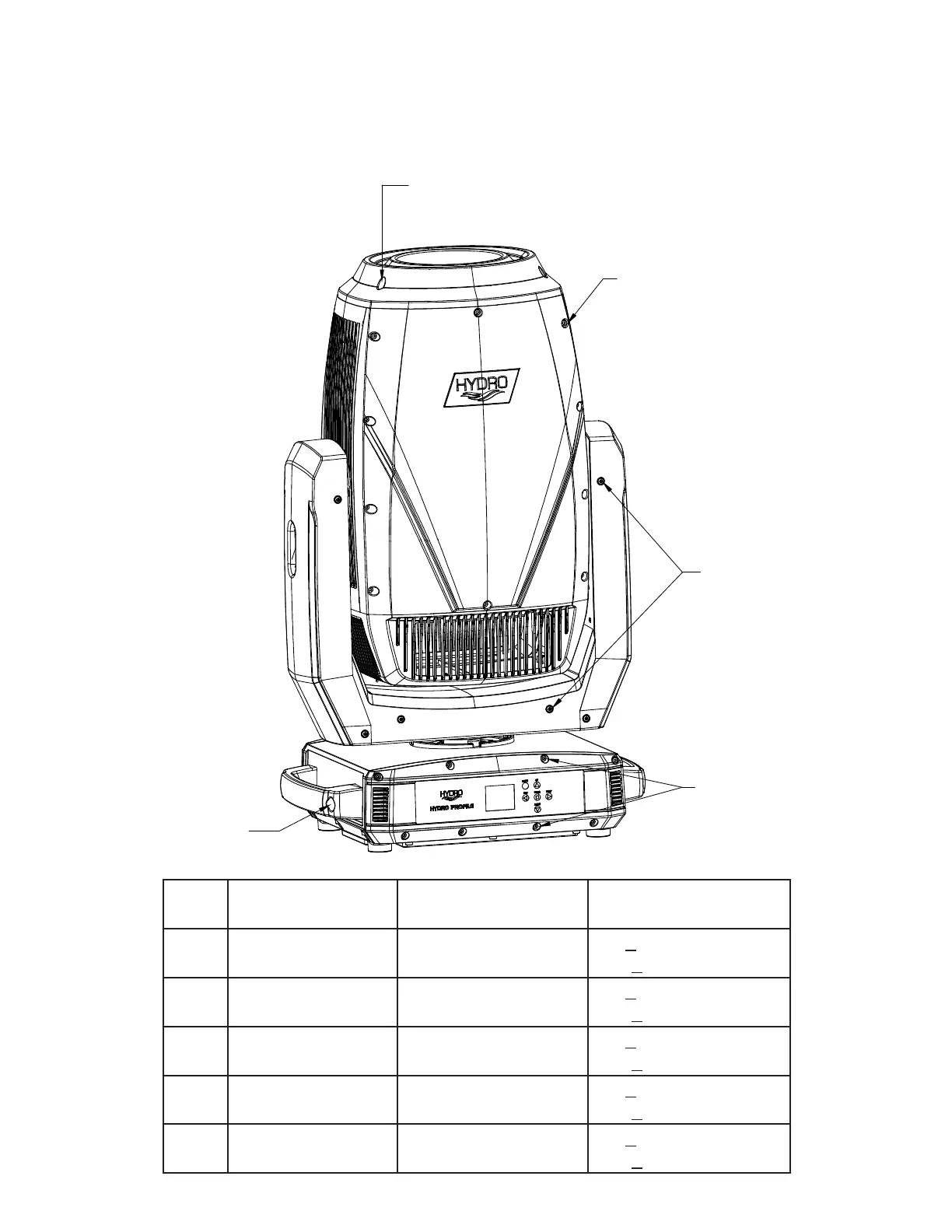

screws. Please refer to the table and diagram below for screw locations, quantity, and torque settings.
Zone
No.
Description Quantity Torque Spec
1 Lens Frame 4
4.3 + 0.6 lbf-in
(5.0 + 0.7 kgf-cm)
2 Main Head Covers 10 per side (20 total)
6.9 + 0.6 lbf-in
(8.0 + 0.7 kgf-cm)
3 Arm Covers 6 per side (12 total)
4.3 + 0.4 lbf-in
(5.0 + 0.5 kgf-cm)
4
Base Front/Rear
Covers
8 per side (16 total)
6.9 + 0.6 lbf-in
(8.0 + 0.7 kgf-cm)
5 Carry Handles 2 per handle (4 total)
6.9 + 0.6 lbf-in
(8.0 + 0.7 kgf-cm)
1
2
3
4
5
