18
GOBOS
REPLACEMENT PROCEDURE
1. Place the device on a at, stable surface, and allow the device to cool down for at least 1 hour
before beginning this procedure.
2. Remove the screws holding the head covers in place, and detach the clips for the head cover
security cables. Remove the head covers.

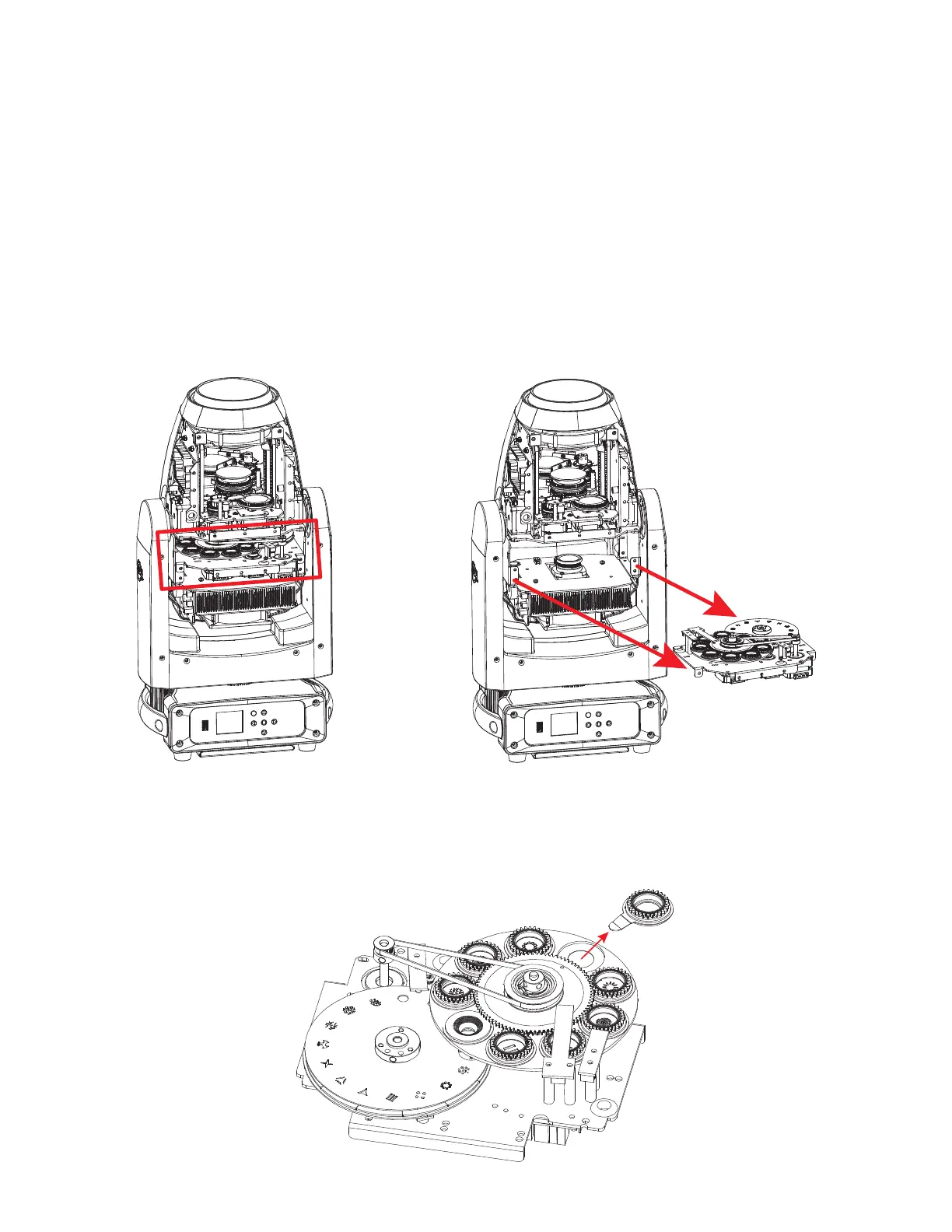

3. Locate the gobo module, which is the second module from the bottom, as shown in the illustration
below. Disconnect any electrical connectors linking the module to the xture head, and remove the
screws holding the module in place. Slide the module out of the head.
4. Pull the gobo holder away from the gobo wheel, then gently slide it outwards. Use a pair of needle
nose pliers to carefully remove the retainer spring from the gobo holder. The gobo can now be
removed from the gobo holder, and replaced with a new gobo. Reassemble by reversing these
steps.
