©American Audio® - www.americanaudio.com - VX Series™ Power Amplifier User Manual Page 7

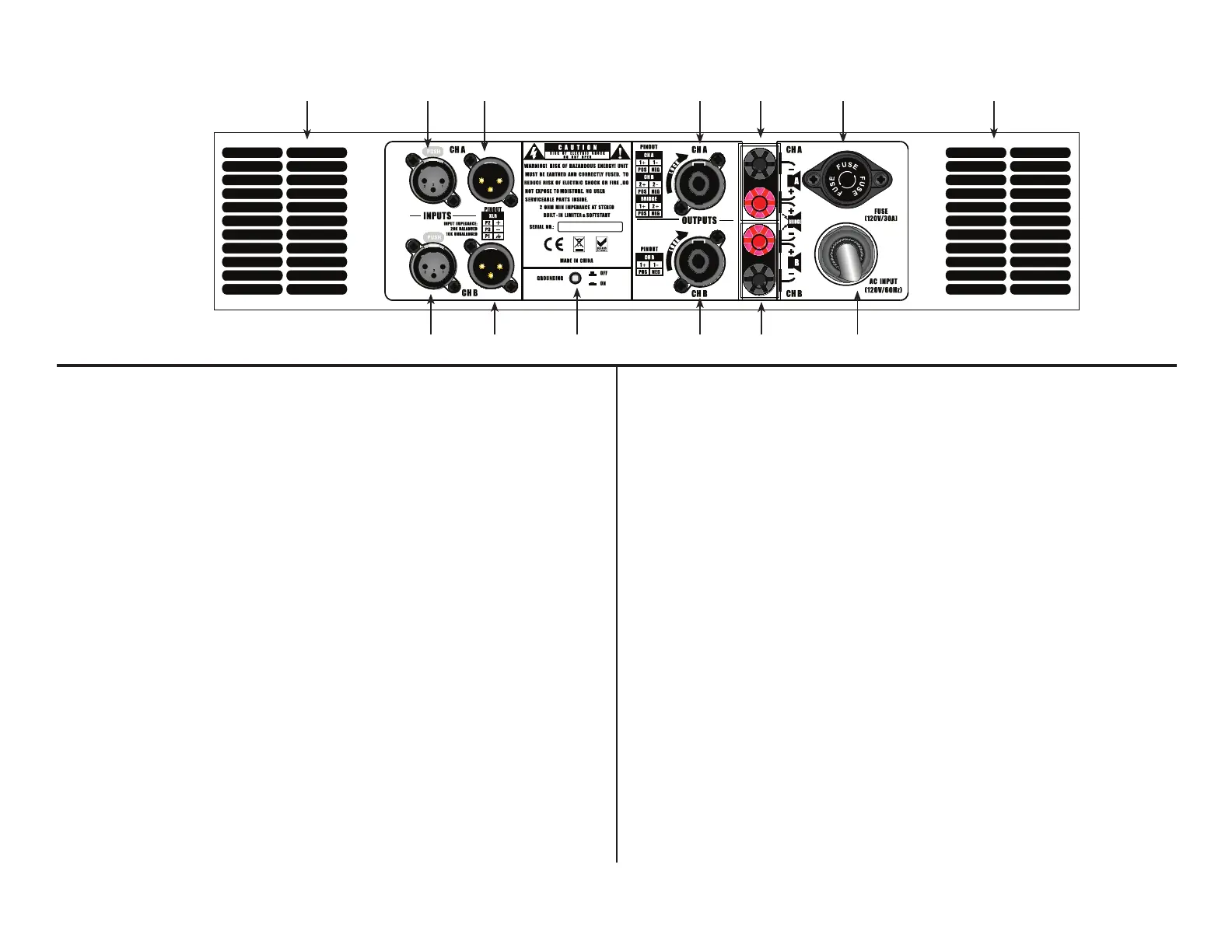

Rear Panel Control
VX2500
33. Cooling Fans - Dual high speed cooling fans
34. Channel A XLR Input - Channel A 3-pin XLR balanced input jack. See page
9 for more details.
35. Channel A XLR Ouput - Channel A XLR output jack. Excepts either a bal-
anced or unbalanced plug. See page 9 for more details.
36. Channel A Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
37. Channel A Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
38. Fuse Holder - This housing stores a 30 amp GMA protective fuse. Never
defeat the fuse, the fuse is designed to protect the electronics in the event of
severe power uctuations. Always be sure to replace the fuse with an exact
match as the one being replaced, unless otherwise told to do so by an autho-
rized American Audio® service technician.
39. AC Cord - Plug this cable into a standard wall outlet. Check that the voltage
in your area matches the ampliers required voltage.
40. Channel B Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
41. Channel B Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
42. Ground On/Off Switch - If hear a hum or any interference, put the Ground
switch in the “On” postion .
43. Channel B XLR Output - Channel B XLR output jack. Excepts either a bal-
anced or unbalanced plug. See page 9 for more details.
44. Channel B XLR Input - Channel B 3-pin XLR balanced input jack. See page
9 for more details.
40 3943 42 4144
33 333837363534
Figure 3
