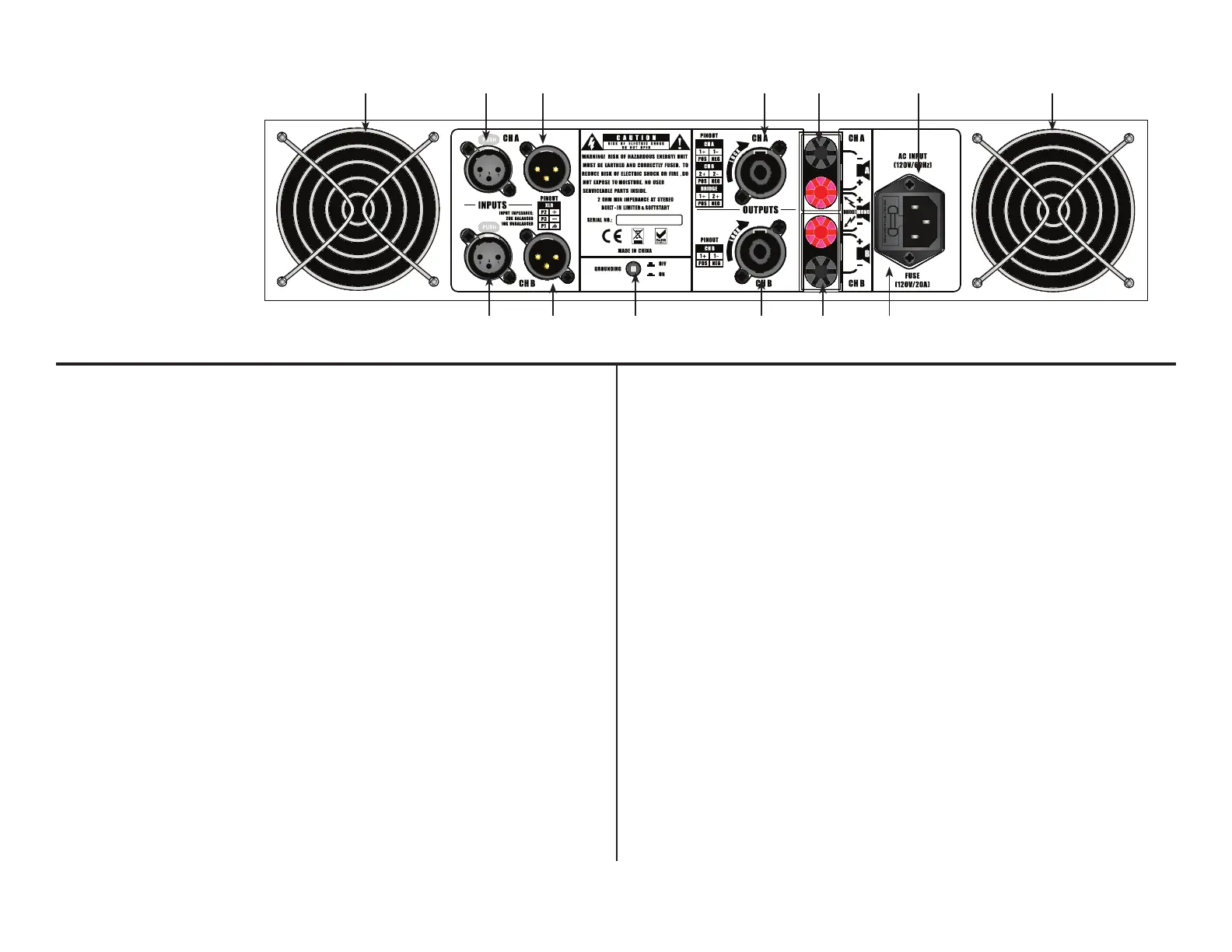

Rear Panel Control
VX1000 & VX1500
21. Cooling Fans - Dual high speed cooling fans
22. Channel A XLR Input - Channel two 3-pin XLR balanced input jack. See
page 9 for more details.
23. Channel A XLR Outputs - Channel two 1/4” female jack. Excepts either a
balanced or unbalanced plug. See page 9 for more details.
24. Channel 2 Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
25. Channel 2 Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
26. AC Cord - Plug this cable into a standard wall outlet. Check that the voltage
in your area matches the ampliers required voltage.
27. Fuse Holder - This housing stores a 20 amp GMA protective fuse for the
VX1000 and 25 amp GMA protective fuse for the VX 1500. Never defeat the
fuse, the fuse is designed to protect the electronics in the event of severe power
uctuations. Always be sure to replace the fuse with an exact match as the one
being replaced, unless otherwise told to do so by an authorized American Au-
dio® service technician.
28. Channel 1 Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
29. Channel 1 Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
30. Ground On/Off Switch - If hear a hum or any interference, put the Ground
switch in the “On” postion .
31. Channel B TRS Input - Channel one 1/4” female jack. Excepts either a bal-
anced or unbalanced plug. See page 9 for more details.
32. Channel B XLR input - Channel one 3-pin XLR balanced input jack. See
page 9 for more details.
Figure 2
©American Audio® - www.americanaudio.com - VX Series™ Power Amplifier User Manual Page 6
21 212625242322
28 2731 30 2932
