GENERAL FUNCTIONS AND CONTROLS (Cont.)
©American Audio® - www.AmericanAudio.us - CDI-100 Mp3 Instruction Manual Page 12
Figure 4
17
22
21 20 19 18

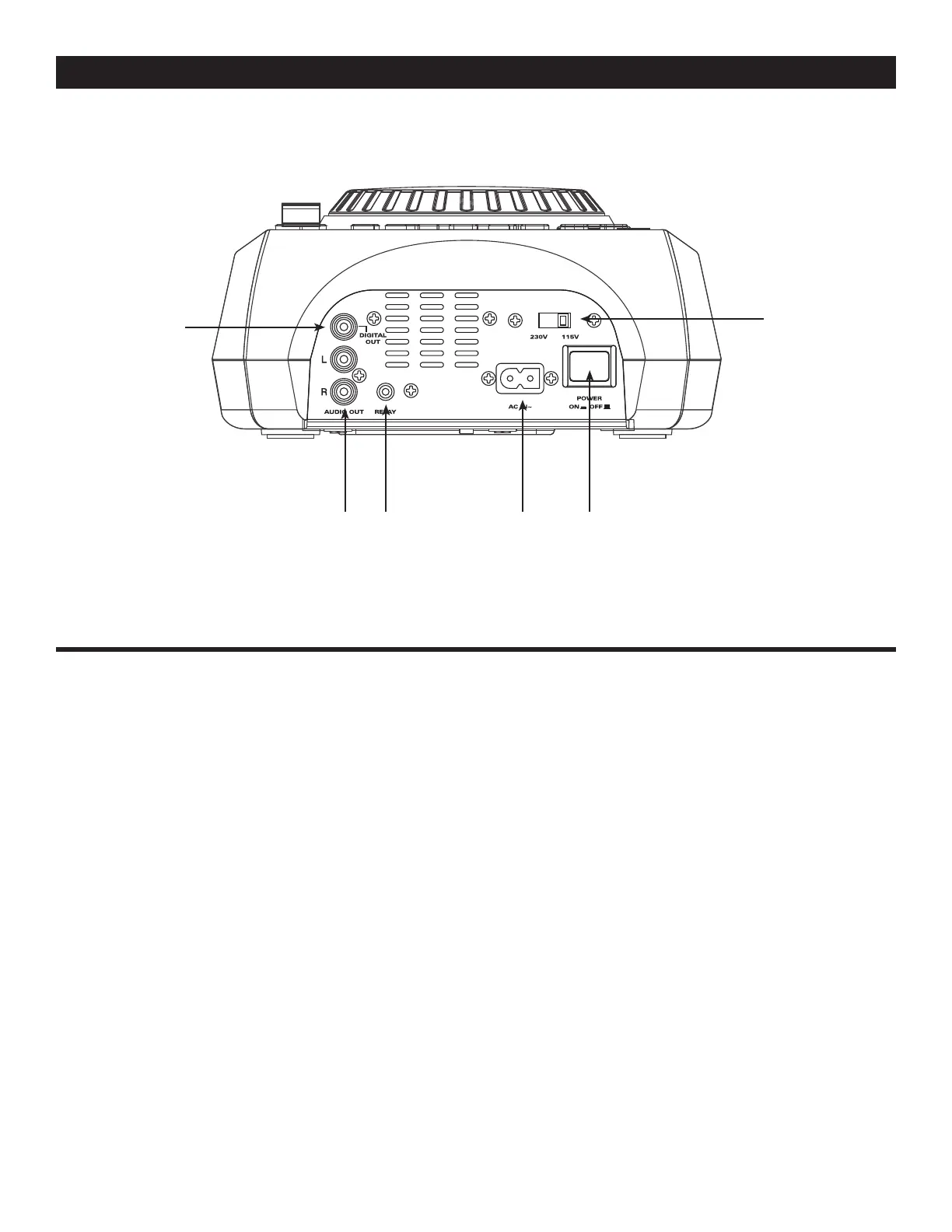

B. REAR PANEL (FIGURE 4)
17. VOLTAGE SELECTOR - Because power
supplies vary from location to location we have
incorporated a selectable voltage switch. This
switch can select a voltage input of 120v~60Hz
or 230v~50Hz. Always disconnect the power
plug before changing the voltage.
Dual Voltage models only
18. POWER BUTTON - This button is used to
turn your unit’s power on and off.
19. POWER CONNECTOR - This connection is
used to connect your main power. Be sure that
your local power matches the unit’s required
power. NEVER REMOVE THE GROUND PRONG
FROM THE POWER CABLE, DOING SO MAY
RESULT IN IMPROPER OPERATION.
20. CUE MINI JACK - Connect the supplied
mini-plug from the CUE jack on the rear of your
unit to a compatible American Audio® mixer’s
CONTROL out. This feature is only available on
American Audio’s “Q” series mixers.
21. AUDIO OUT R & L - Audio out signals. Connect
stereo RCA cables from AUDIO OUT to a mixer's
line input.
22. DIGITAL OUT - Use this connection to create
near perfect copies of your disc to a Mini disc,
CD-R, or any other digital recording device.
