INSTALLATION
Vector™ F Series ▪ Operator’s Manual ▪ MN-39279 ▪ Rev 01 ▪ 1/18
26
Continued from previous page

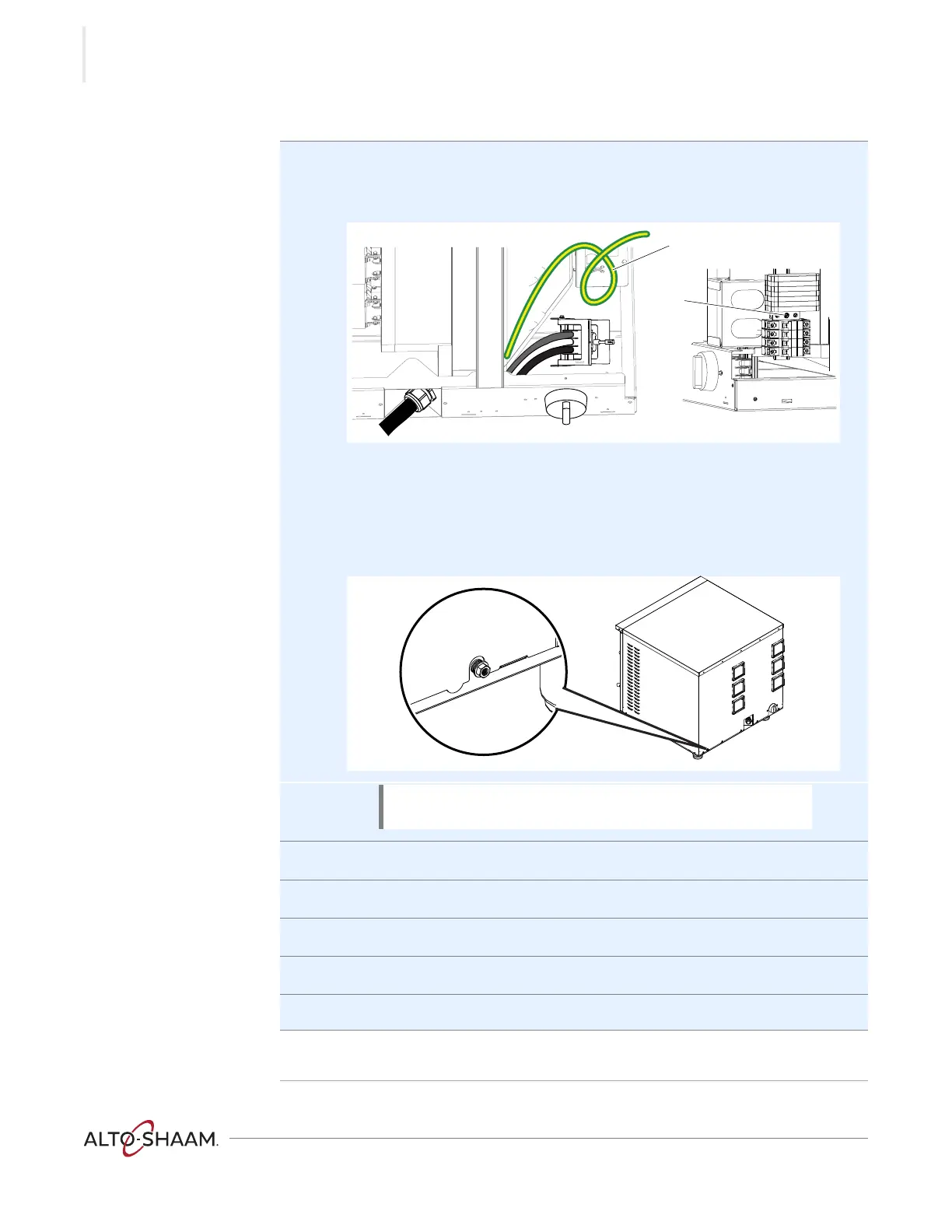

10. Install the lock nut onto the cord grip.
Connect the supply cord to the appropriate terminals (L1, L2, L3, etc.) in
accordance with local codes and regulations.
Install the ground wire to the ground terminal h.
Leave an extra loop i so that current-carrying conductors become taut
before the ground wire if the cord is accidentally pulled. Follow applicable
regulations.
Tighten the cord grip sealing nut onto the supply cord.
11. Re-install the 2 screws to the bracket.
12. Re-install the bracket.
13. Connect the fan motor wire connector.
14. Re-install the side panel.
15. Re-install the back panel.
Result The oven is now installed.
NOTE: The equipotential-bonding terminal is located at
the bottom rear of the oven.
VMC-TS-003443
i
h
VMC-TS-003115
