INSTALLATION
Converge® ▪ Operator’s Manual ▪ MN-47239 ▪ Rev 4 ▪ 4/24
30
Continued from previous page

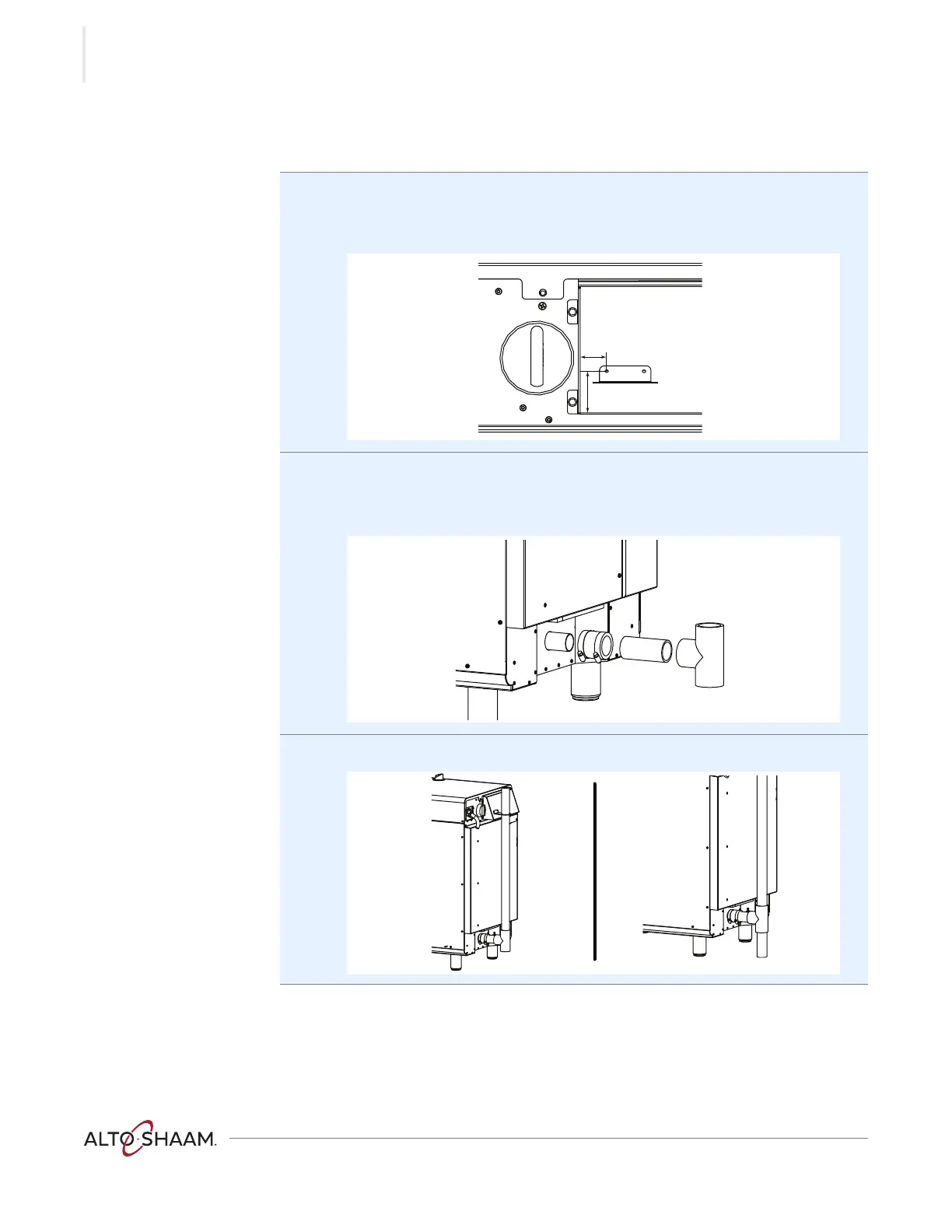

To install the water drain, do the following.
7. Drill a hole for the mounting bracket using the dimensions in the image.
Install a screw into the drilled hole. Drill a hole for the second mounting
screw. Install the screw.
8. Install the no hub coupling onto the over drain.
Cut a short piece of drain pipe. Install the pipe into the Tee fitting from the
kit. Install the pipe and Tee fitting into the no hub coupling.
9. Install the vent pipe into the Tee fitting.
Continued on next page
CT-TS-012077
1 “
3 “
CT-TS-012080
CT-TS-012083
