INSTALLATION
Converge® ▪ Operator’s Manual ▪ MN-47239 ▪ Rev 4 ▪ 4/24
29
Continued from previous page

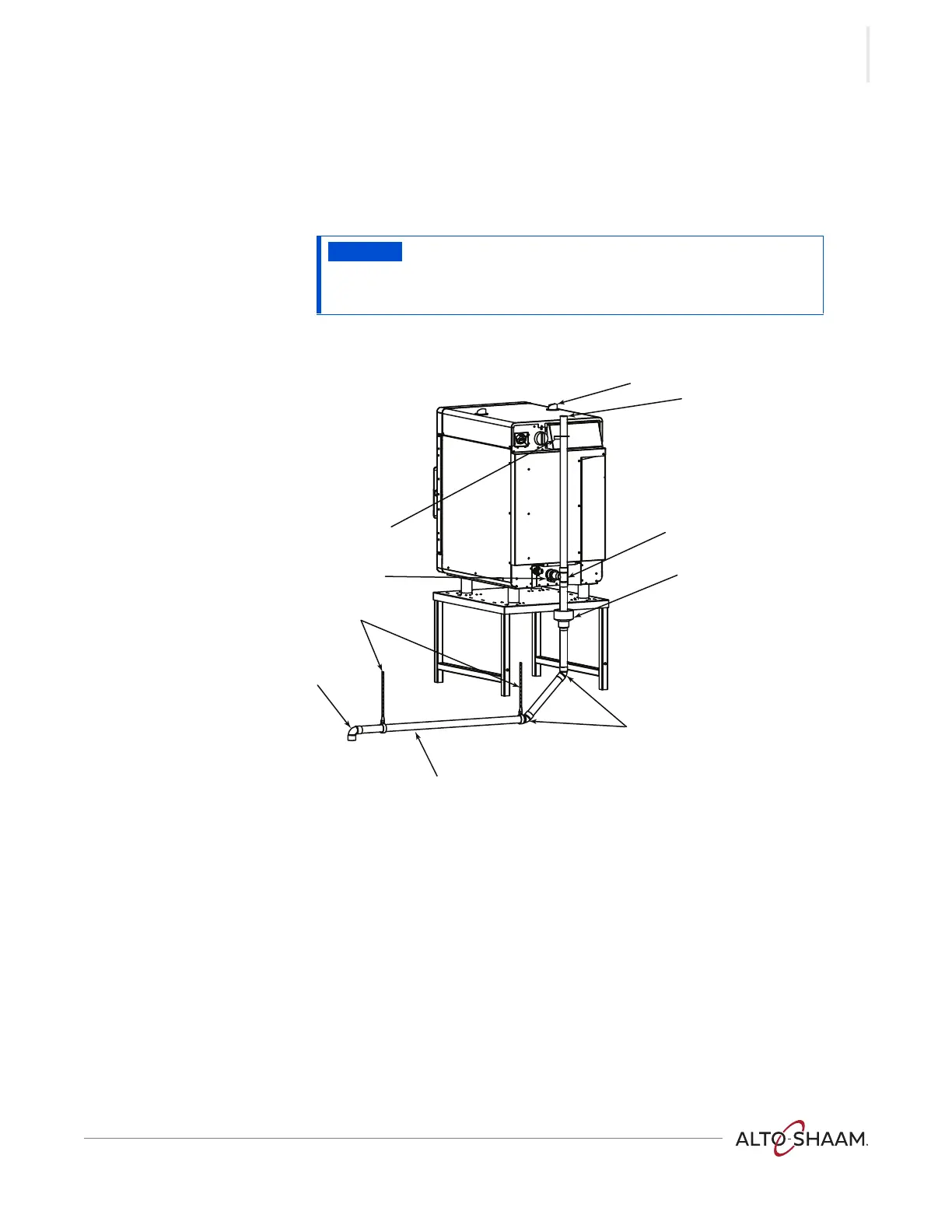

Installing the water
drain
Install a 1-1/2” (40mm) diameter connection, drain line and clamp into place. The
drain line must always slope downward away from the oven. An end-of-drain air
gap may be required by local code. Vertical air vent required.
Continued on next page
NOTICE
In the U.S.A., this equipment must be installed to comply with
the Basic Plumbing Code of the Building Officials and Code
Administrators International, Inc. (BOCA), and the Food Service
Sanitation Manual of the Food & Drug Administration (FDA).
CT-TS-012074
EXHAUST VENT
OPENING
DRAIN VENT PIPE
MUST BE ABOVE
EXHAUST VENT
OPENING
TEE
FITTING
FUNNEL
45°
ELBOWS
90°
ELBOW
SUPPORT
STRAPS
SUPPORT
BRACKET
COUPLING
1-1/2” (40mm) DIAMETER PIPE
TO DRAIN - FLOOR SINK
WITH POSITIVE DESCENDING
SLOPE
