sErVIcE
AR-7H Hot Holding Rotisserie Companion Operation & Care Manual • 21
Part numbers and drawings are subject to change without notice.
AR-7H Hot Holding Rotisserie Companion Operation & Care Manual • 21
1
7
3
5
4
2
8
6
REV 02/09

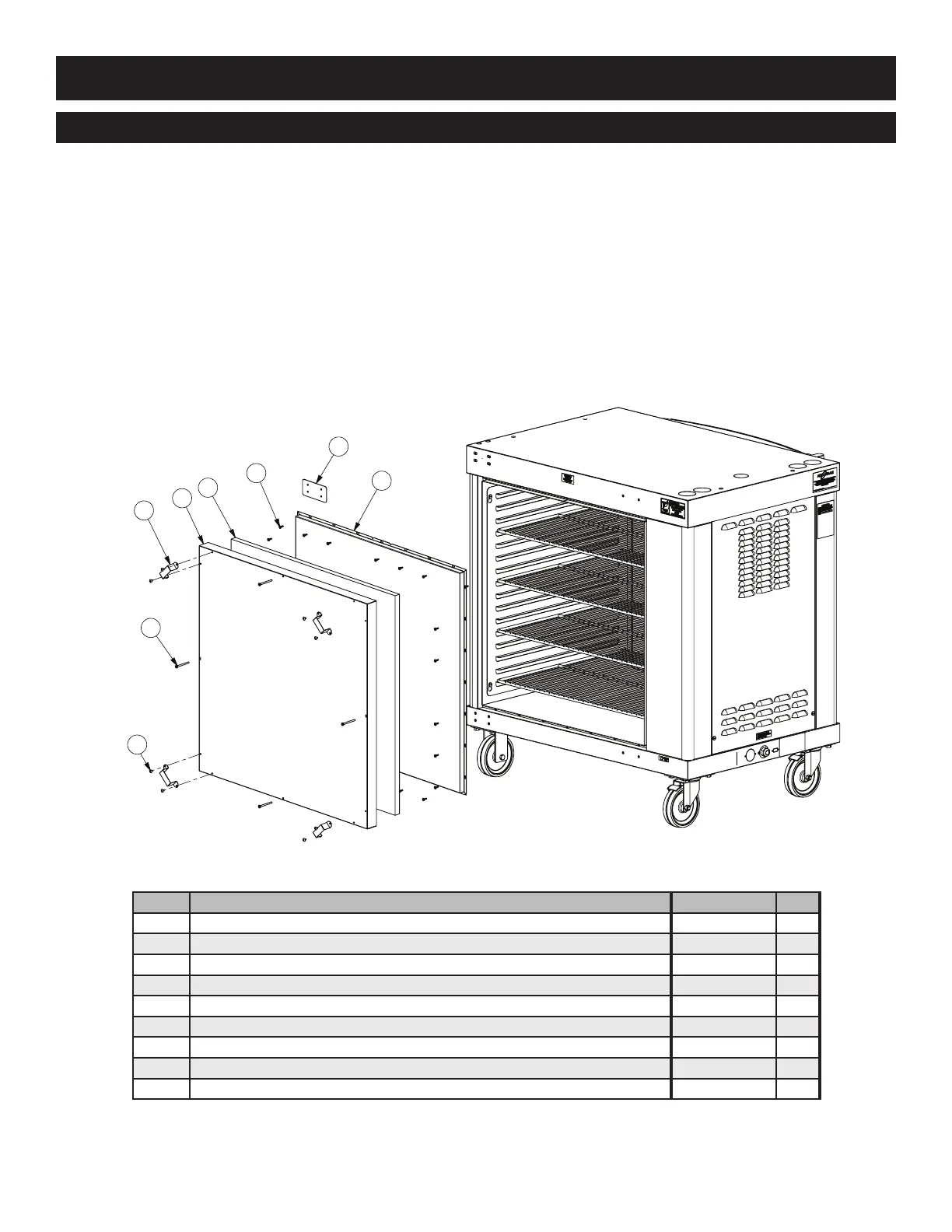

staInlEss stEEl back panEl
ItEM dEscrIptIon part no. Qty
1 COVER, HINGE MOUNTING 1002446 2
2 SPACER, SOLID BACK 1002822 4
3 PANEL, BACK, SOLID, INNER 1006652 1
4 PANEL, BACK, SOLID 1006746 1
5 INSULATION, FIBERGLASS, #3 DENS, 1/2" THICK IN-2003 2
6 8-32 X 1/4" PHIL SCREW SC-2459 8
7 SELF TAPPING 8-32 X 1/2 SC-25849 24
8 SCREW, 8/32 X 2 LG. SC-27843 4
9* SCREW, 10-32 X 3/4 SC-23151 8
baCk replaCement:
step 1: REMOVE REAR DOOR, RUBBER GASKET, HINGES, AND
28 SCREWS FROM GASKET CHANNEL
step 2: ATTACH INNER BACK PANEL WITH 24: SC-25849
step 3: INSERT IN-2003 INTO OUTER BACK PANEL
step 4: ATTACH OUTER BACK PANEL WITH 4: SC-27843
step 5: ATTACH 4 SPACER BRACKETS WITH 2 EACH: SC-2459
step 6: ATTACH 2 HINGE COVER PLATES WITH 4 EACH: SC-23151
Part numbers and drawings are subject to change without notice.
*not shown
