sErVIcE
AR-7H Hot Holding Rotisserie Companion Operation & Care Manual • 20
Part numbers and drawings are subject to change without notice.
AR-7H Hot Holding Rotisserie Companion Operation & Care Manual • 20
Part numbers and drawings are subject to change without notice.
“A”
“B”
DETAIL A
DETAIL B
4
4
6
5
2
3
1

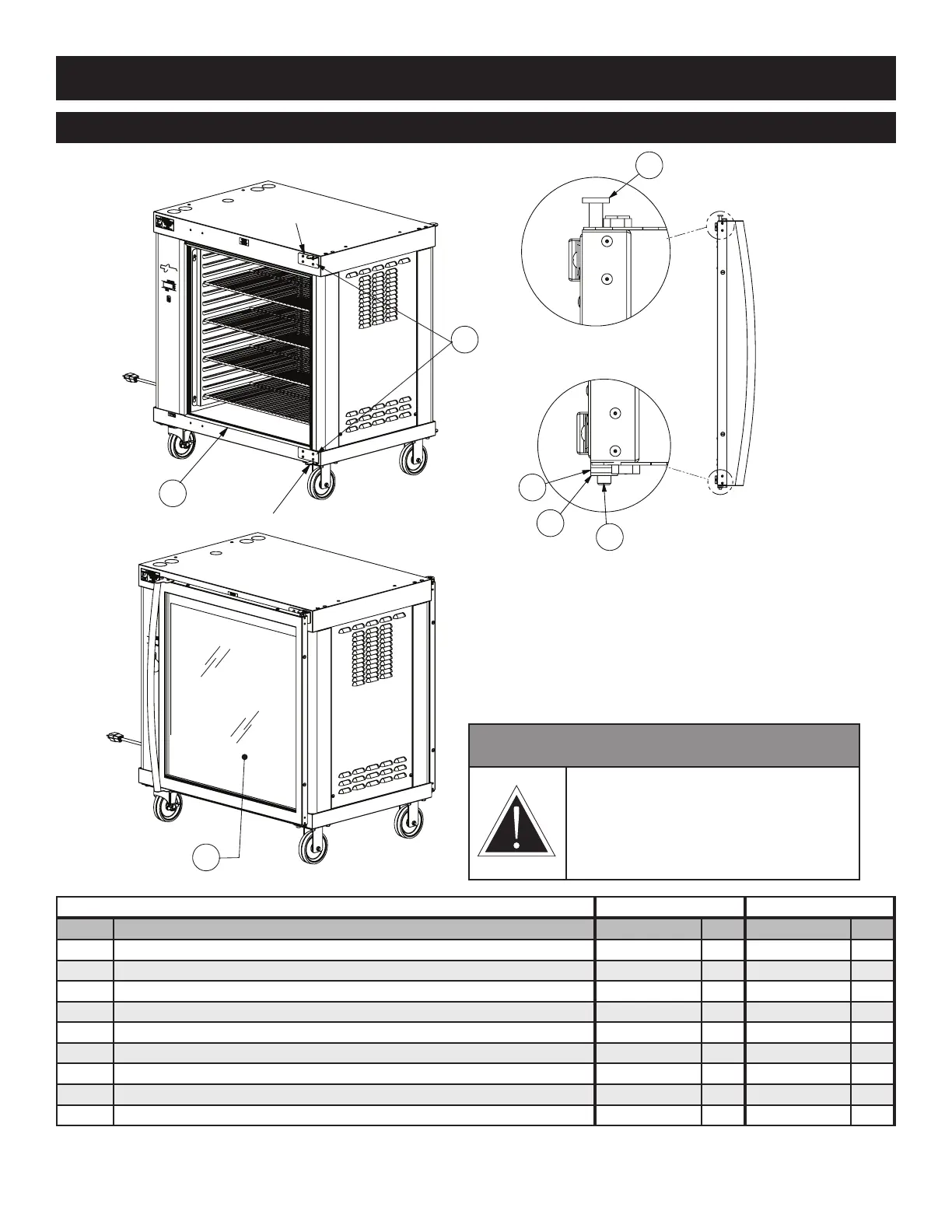

sInGlE panE flat Glass door
Door replaCement:
steP1. REMOVE TOP PIN (PI-26350) FROM BRACKET
"A" USING A SMALL SCREWDRIVER.
steP2. ASSEMBLE DOOR ON UNIT WITH SPACERS
AS SHOWN.
steP3. MAKE CERTAIN DOOR IS ALIGNED AND
REINSERT TOP PIN.
warnInG
Do not attempt to remove the
Door without assistanCe. the
Door is eXtremely heavy, will
be DamageD if DroppeD, anD
may Cause serious inJury.
ModEl > Manual ElEctronIc
ItEM dEscrIptIon part no. Qty part no. Qty
1 DOOR ASSEMBLy, FLAT
control side 5009591 1 5009591 1
non-control side* 5009815 1 5009815 1
2 HINGES, DOOR
top 1002596 1 1002596 1
bottom 1002597 1 1002597 1
3 GASKET, DOOR GS-25753 2 GS-25753 2
4 PIN, DOWEL
top PI-26350 2 PI-26350 2
bottom PI-26352 2 PI-26352 2
5 WASHER WS-22298 1 WS-22298 1
6 SPACER 1002143 1 1002143 1
*not shown
