MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 37
SERVICE

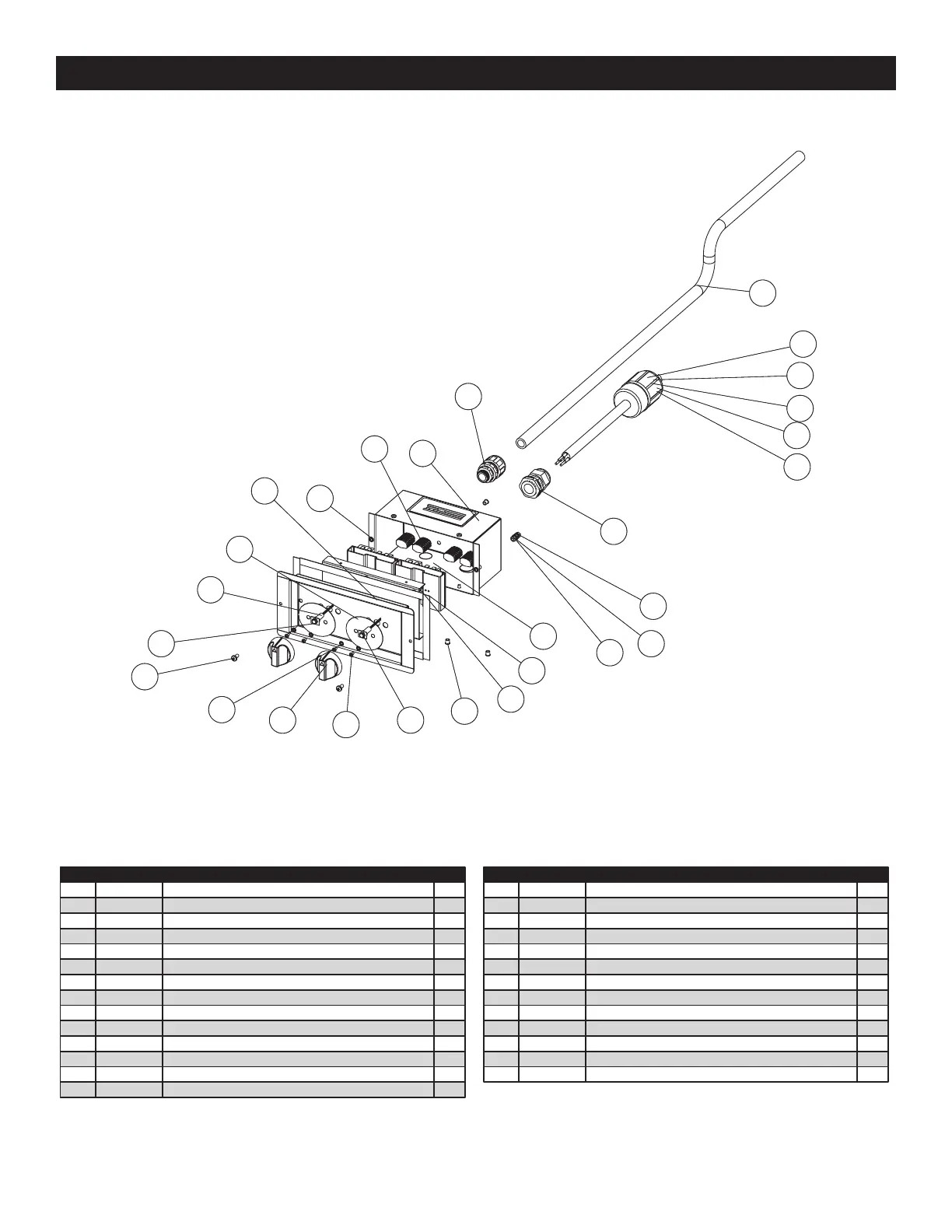

CONTROL SERVICE VIEW (500-HW shown)
Item Part Description Qty
1 1017288 PLATE, FACE 1
2 5013668 NEMA L5-30P CORDSET FERRULE ASSEMBLY 1
2a 5016998 CH2-16P CORDSET FERRULE ASSEMBLY
2b CD-33840 CORDSET 15A 208-240V 1
2c CD-3922 CORDSET-16AWG, 3/C, INT’L HARM 1
2d 5014997 BS 1363 CORDSET FERRULE ASSEMBLY 1
3 SC-22926 SCREW, M5 x 0.8 x 16mm HEX 1
4 SC-22271 SCREW, M4 x 0.7 x 6mm PAN 4
5 CC-36859 CONTROL 2
6 1015806 BOX, REMOTE, DECOR FACE 2 KNOB 1
7 SC-22500 SCREW 6-32 x 1/4" PAN HD 4
8 CR-34646 CONNECTOR-5 CONDUCTOR 4
9 TA-24637 TAPE, VHB, FOAM, 1/2" WIDE 4
10 SC-22766 SCREW, M5 x 0.8 x 10mm PAN 2
Item PartDescription Qty
11 KN-36424 KNOB, T-STAT CONTROL 2
13 1015724 SHELL, CONTROL POD, 2 KNOB 1
14 BU-33505 BUSHING, STRAIN RELIEF, 230V 1
15 BU-34606 BUSHING, STRAIN RELIEF, 120V, 208-240V 1
16 CL-37245 CLIP, LIGHT MOUNTING 2
17 LI-37215 LIGHT, INDICATOR 2
18 NU-23909 NUT, HEX INSERT M5 2
19 NU-36234 NUT, M5, KEPS 2
20 PE-36566 PANEL OVERLAY 2
21 PG-35411 1/4" HOLE PLUG 3
22 TU-33178 CONDUIT, FLEXIBLE, 6 FT 1
23 WS-22295 WASHER, FLAT M5 S/S
24 WS-2768 WASHER, #6, LOCK 4
1
1
22
2a
2d
2c
2
2b
15
14
21
3
23
19
13
8
18
4
5
1
6
20
9
17
24
16
7
10
11
22
2a
2d
2c
2
2b
15
14
21
3
23
19
13
8
18
4
5
1
6
20
9
17
24
16
7
10
11
Part numbers and drawings are
subject to change without notice.
