Installation and Connections
Installation
Installing TV TUNER
This TV TUNER can be placed inside the trunk,
on the kick panel of the front passenger's seat or
underdash. However, to avoid unnecessary
signal wiring, it is better to mount the TV TUNER
as close as possible to the Display.
DO NOT MOUNT THE UNIT IN LOCATIONS
THAT WILL BE IN THE VICINITY OF MOIS-
TURE OR EXTREME HEAT (such as the engine
compartment).
Make sure you have all the necessary parts and
tools. Then, begin mounting according to one of
the following procedures:
Mounting
This installation method is suggested when the
mounting location does not permit drilling.
USE THIS METHOD ONLY WHEN THE UNIT IS
MOUNTED ON A HORIZONTAL SURFACE.
NEVER MOUNT A UNIT UPSIDE-DOWN USING
THE VELCRO TAPE.
1 Remove the adhesive protective paper from
one side of the Velcro fasteners.
2 Attach the exposed adhesive side to the
underside of the unit, in a central location. Do
not cover the serial number.
3 Make sure the mounting location is clean, dry
and free from contaminants.
4 Remove the protective strip from the other side
of the Velcro pad.
5 Press the unit onto its mounting location.

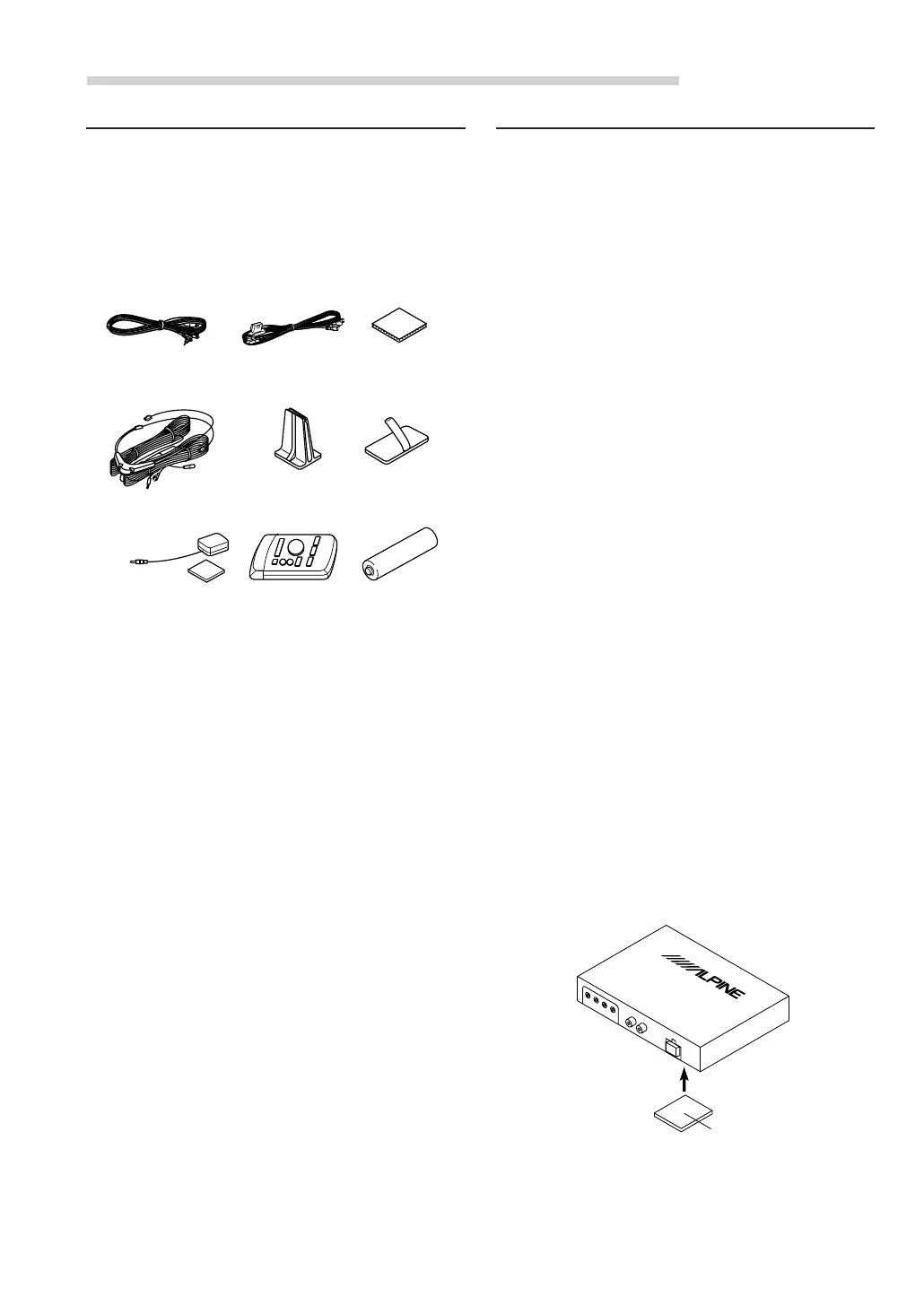

Velcro fastener
Preparation
1 Park the vehicle in a flat, safe place. Apply the
parking brake, then remove the ignition key.
2 Check the included parts and organize the tools
and installation instructions.
3 Disconnect the battery’s minus terminal.
Infrared remote
control unit
(5.5m)
Antenna clamper
(x4)
Cable clamper
(x4)
TV Antenna
(L/R) (6m)
Remote control
Power cable
(2m)
Velcro fastenerPIN connection cable
(2m)
(Double-sided
adhesive tape)
Battery (AAA)
x 2
