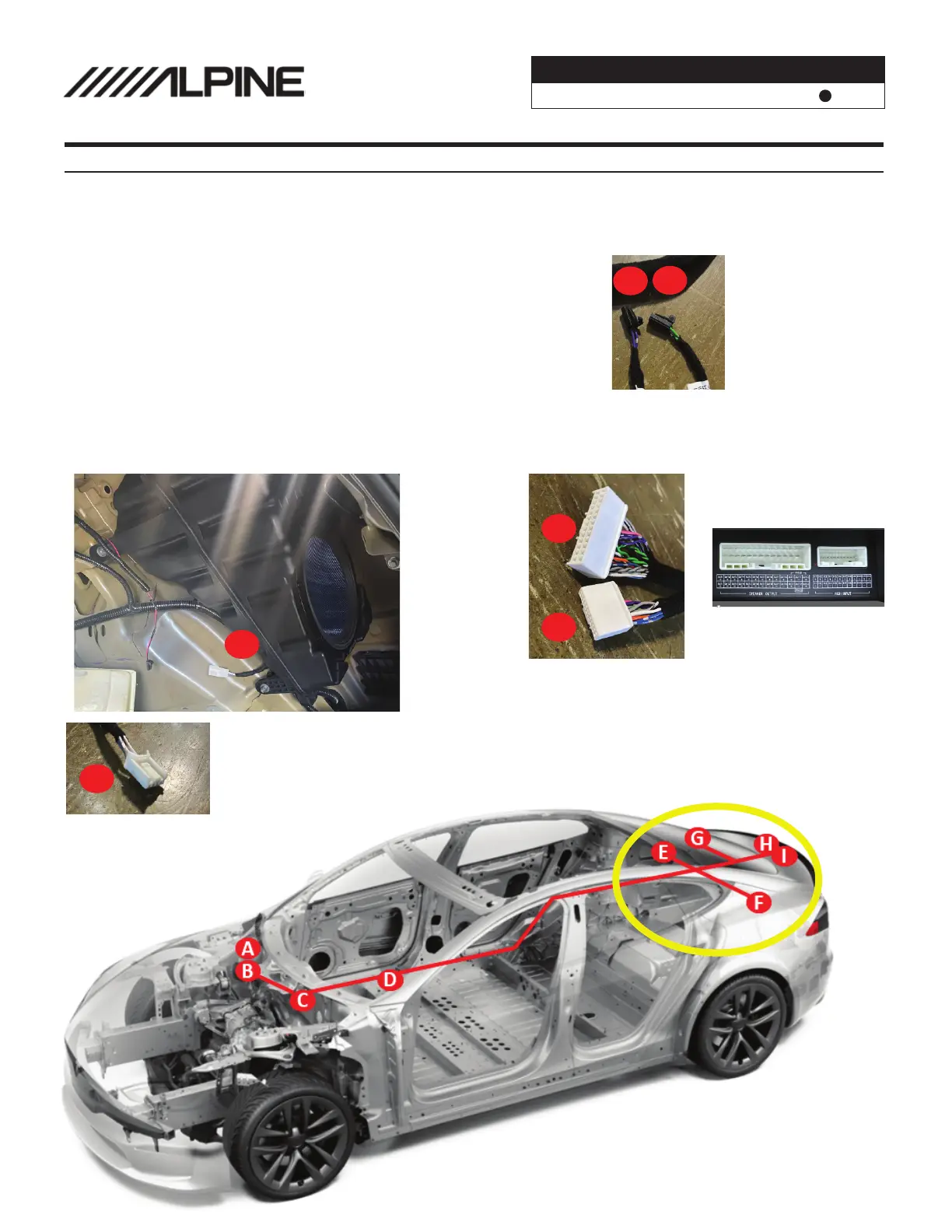

Installation Instructions (Integration Harness)
6 5
Route the harness under the passenger trim up to the
back of the vehicle. Leave a proper amount of slack so
that your plugs can reach the nal amplier mounting
location.
(Plugs E & F) are routed for rear deck speaker equipped
vehicles. (Some Model 3 Base RWD made 2021+ do not
have rear deck speakers)
8 7
Route cable G behind the trunk lining trim, (Plug G)
connects to the subwoofer enclosure located behind the
rear passenger tire well.
(Plug H & I) High level input and DSP output connect to
the Alpine Amp PXE-X121-12EV
E
F
H
I
G
G
