KONA Capture, Display, Convert v16.2 29 www.aja.com
NOTE: AJA devices can automatically adjust settings for specific signal inputs, outputs,
and processing. This information is reported on the AJA Control Panel's block
diagram. One example is if outputting 4K, HFR, YCbCr 4:2:2 10-bit from the
framebuffer, if the HDMI transmitter is version 1.4b the video is automatically
adjusted to 4:2:0 8-bit (e.g. KONA 4, KONA IP).
The left side of the AJA Control Panel provides a navigation list of available
function screens. Clicking on a link (or alternatively, a related element in the block
diagram) displays a function screen corresponding to that topic.

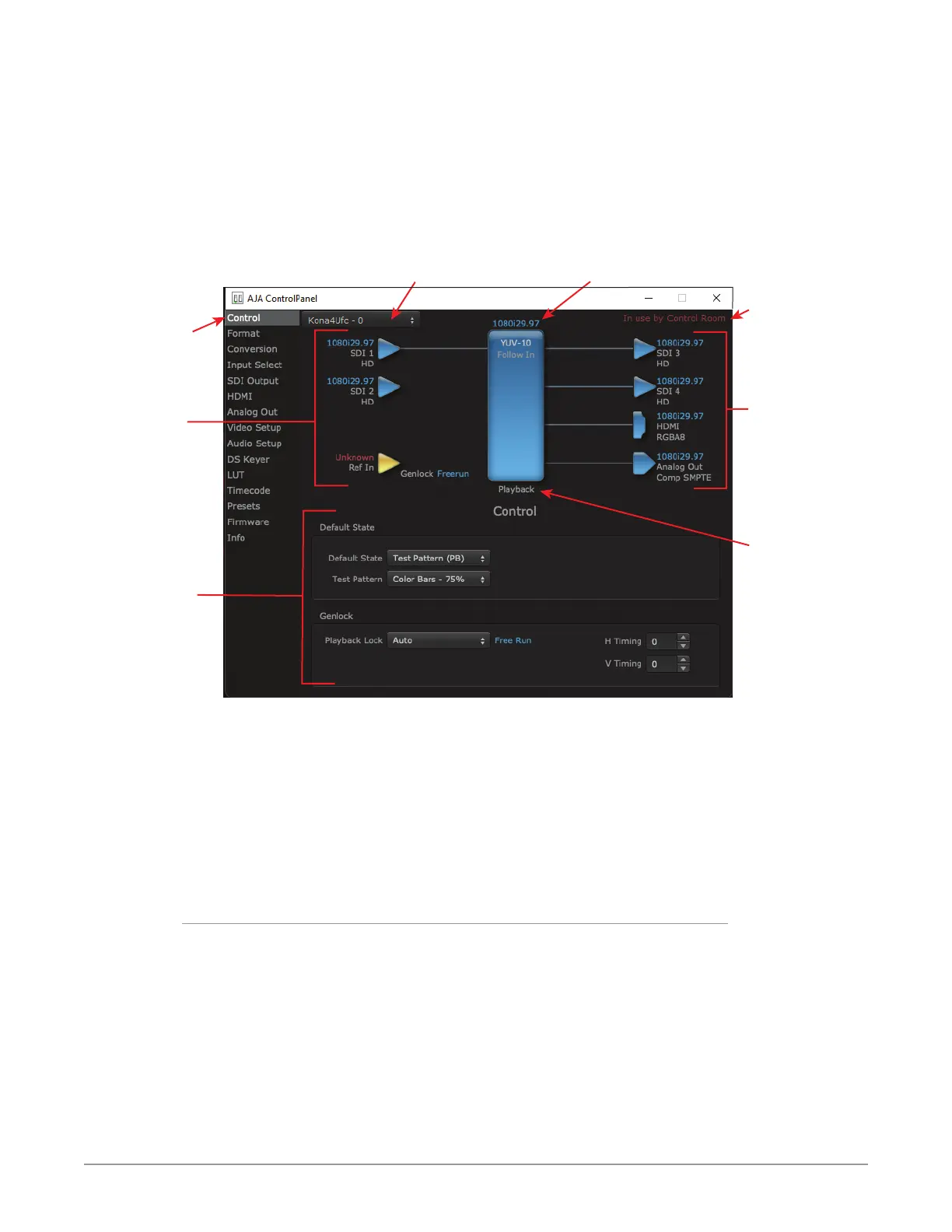

Figure 21. AJA Control Panel, Block Diagram and Controls
Inputs
Device Format (Framebuer)
AJA Device Selection
Controlling
Application
Operating
Mode
Outputs
Currently
Selected
Function Screen
Parameter
Controls
Some controlling applications can switch the card's mode from Playback to
Capture, and vice-versa. When Control Panel is not being controlled by an
external application, you can change the operating mode in the Control Panel
Control Screen using the Default Output settings.
• Selecting Passthrough (Cap) sets the card to Capture Mode
• Selecting either Test Pattern (PB) or Hold Last App sets the card to Playback
Mode
See "Default State" on page 36 for more information
Block Diagram Area
The top block diagram area of the Control Panel screen is a visual representation
of the processing, if any, that’s currently occurring, including inputs/outputs,
reference source, and system status. Lines between inputs, the framebuffer, and
outputs, show a video path. Where there are no lines, there is no connection; this
can be because an input or output isn’t selected in the Input Select menu. The
lines will also show whether the outputs are video or video + key.
NOTE: If a KONA card's SDI output BNC is available, that card's output signal will be
routed to that extra BNC, providing two identical SDI output signals.
You can click any of the function screen selection links in the left column to view
its current settings or click on an icon to call up its related settings screen. You can
also right-click or Control-click to see context-sensitive information and choices.
