DRM2 Mini-Converter Rack-Mount Frame Manual v1.0 15 www.aja.com
3. Remove the faceplate from the DRM2 frame, while supporting the faceplate.
4. While still supporting the faceplate, unplug the faceplate's DC power
connector from the DRM2 DC Power Harness. Do this by gently twisting
counterclockwise and then pulling the connector out. If possible when
pulling it out, hold by the connector instead of by the cable.

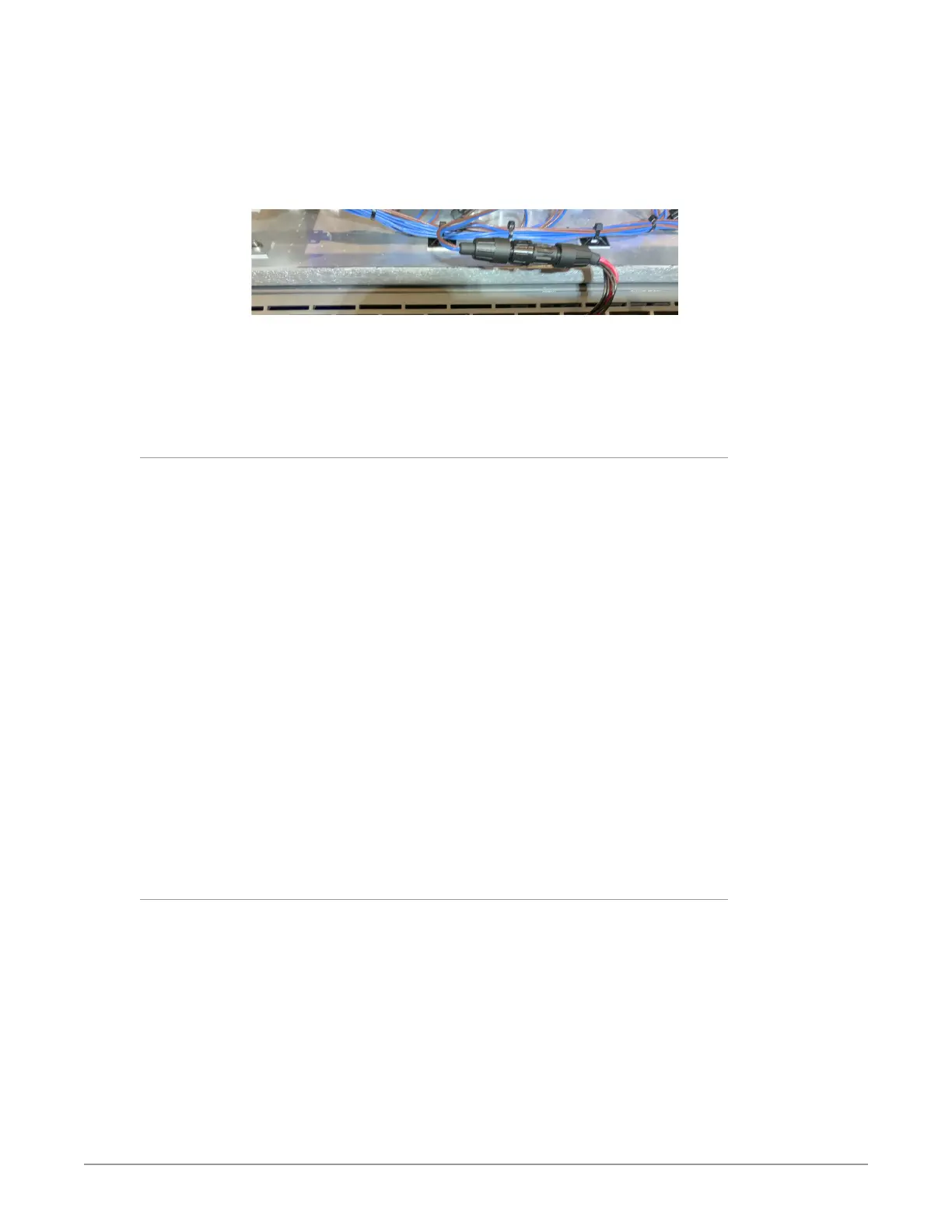

Figure 21. Locate and unplug the Active Faceplate DC power connector
5. Set aside the Active Faceplate for re-installation later.
WARNING: When handling an Active Faceplate, keep it free of contact from dust,
particles, wire fragments or other debris, because such contamination could
cause a loud fan noise, or cause a fan failure when power is applied.
Remove Carrier from DRM2 Frame
NOTE: When working with a frame full of converters it is generally ideal, when possible
to have access from both the front and the rear of the DRM2 frame.
1. Remove the DRM2 faceplate, if one is attached to the frame.
2. If you have access to the rear of the frame, such as through an open chassis,
you may be able to access and remove a Carrier from the rear of the
frame only. Depending upon the ease of the access, and how many other
converters are installed in the frame, this may or may not be convenient.
3. Disconnect DC power, USB, ber and/or AV cables from the mounted Mini-
Converters (if any).
4. Remove the Carrier Rear Screw (if present). Set it aside for re-installation
later.
5. Loosen the No-Tools Secure Screw at the front of the Carrier, until the Carrier
comes loose.
6. Slide the Carrier slightly forward (towards the front of the frame) to
disengage the Carrier from the rear alignment slot.
7. Lift the Carrier up and out of the frame.
NOTE: Avoid catching the Carrier on other cables inside the DRM2 as you move it out of
the frame.
Remove Rear-Mounted Converter from Carrier
1. If not previously done, remove the Carrier from the DRM2 frame (see
"Remove Carrier from DRM2 Frame" on page 15.)
2. From the rear side of the Carrier's vertical bracket, remove the rear-
mounting screws from the converter, and set them aside for future use.
3. Remove the converter from Carrier.
