DRM2 Mini-Converter Rack-Mount Frame Manual v1.0 14 www.aja.com

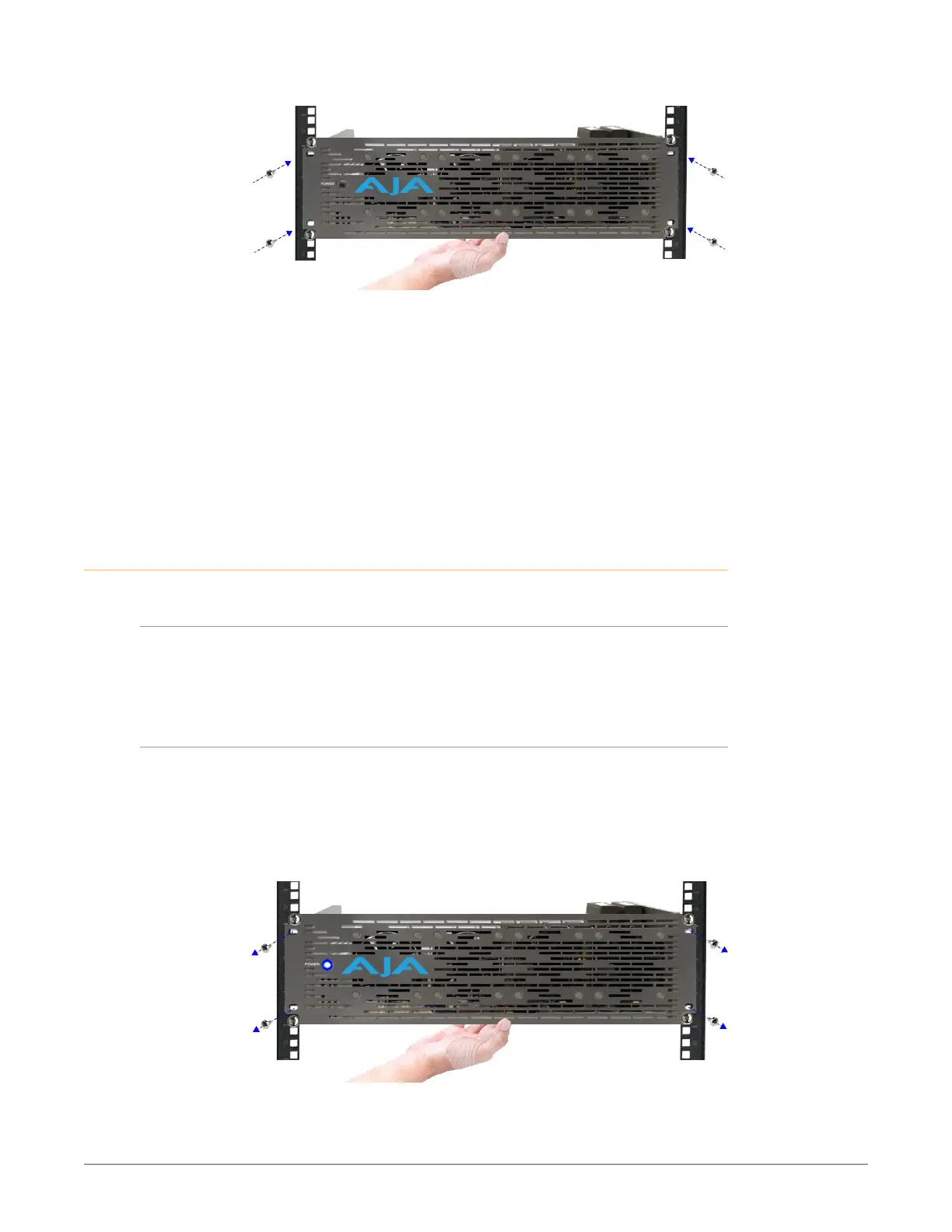

Figure 19. Attaching an Active Faceplate
6. If you have access inside the DRM2 after the faceplate has been secured,
such as through an open rack in the rear, then double-check that all fans are
clear of wires by inspecting them from behind. If found, re-position the DC
wires as needed.
7. While still accessing the rear of the rack, you can also check that no wires
were inadvertently pinched between the faceplate and the DRM2 frame. If
any pinched wires are found, simply loosen the rack mount screws slightly,
remove the wire(s) then re-tighten the rack screws.
8. If not previously connected, connect the AC Power Cord to the rear of the
DRM2 power supply and plug it into a suitable 100–240VAC outlet.
Uninstallation
Remove Passive Faceplate
1. Remove the four inner screws which hold the faceplate on the DRM2.
Keep these screws on hand for re-installation later.
2. Remove the faceplate from the DRM2 and set it aside.
Remove Active Faceplate
1. Remove the four inner screws which hold the faceplate on the DRM2.
Keep these screws on hand for re-installation later.
2. While removing the mounting screws, be sure to also support the faceplate
to prevent it from falling while still connected to the main DC Power
Harness.
Figure 20. Removing an Active Faceplate
WARNING: Do not allow the Active Faceplate to fall, nor to hang by its DC power
connection. This could damage the faceplate DC power connection and/or
the main DC Power Harness.
