24

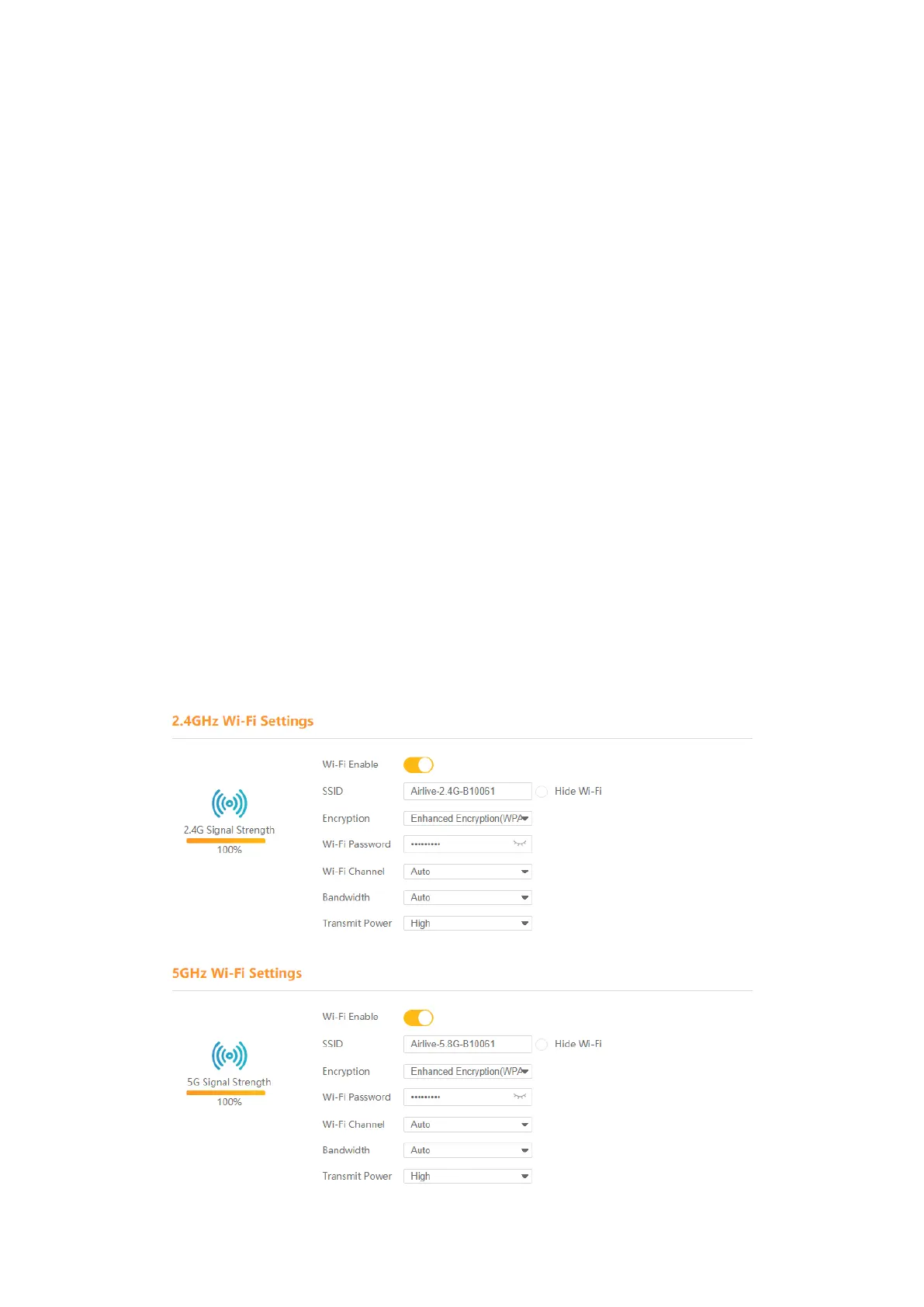

2.4Ghz and 5Ghz Wi-Fi Settings
Use the settings page to change settings to your 2.4GHz and/or 5Ghz wireless setup.
Wi-Fi Enable: 2.4Gh or 5Ghz, click to enable or disable your 2.4Ghz or 5Ghz Wi-Fi.
SSID: Type to modify your SSID name. (2.4Ghz and 5Ghz can have different names). Turn on
Band Steering if you want only 1 SSID for both 2.4GHz and 5GHz.
Hide SSID: Click to turn on, to hide SSID from being broadcast.
Encryption: Select the Encryption for your wireless network, 2.4Ghz and 5Ghz can have their
own Encryption and it does not have to be the same. Select the Encryption type from the
pull-down menu. No Encryption, WPA, WPA2, WPA3, WPA2/WPA, WPA2/WPA3.
Wi-Fi Password: Type to modify your password, click on the eyelash icon to see the
password.
Wi-Fi Channel: Click the pull-down menu to select your wireless channel,
Select Auto and the Router will select the best channel by itself.
Select 1~13 (2.4GHz), 34~64 (5GHz) Channel: Select your wireless channel (channel number
is dependent on your region). To change your region, go to the Advanced menu >> Advanced
Setup >> Country Code, to select your region.
Bandwidth: Default is Auto, which will give the best performance. It is also possible to
change to setting, Select the frequency you want to use. For 2.4GHz this is 20MHz or 40MHz.
For 5GHz the choice is 20MHz, 40MHz or 80MHz.
Transmit Power: Select the TX output power of the router. Select Low, Middle or High.
