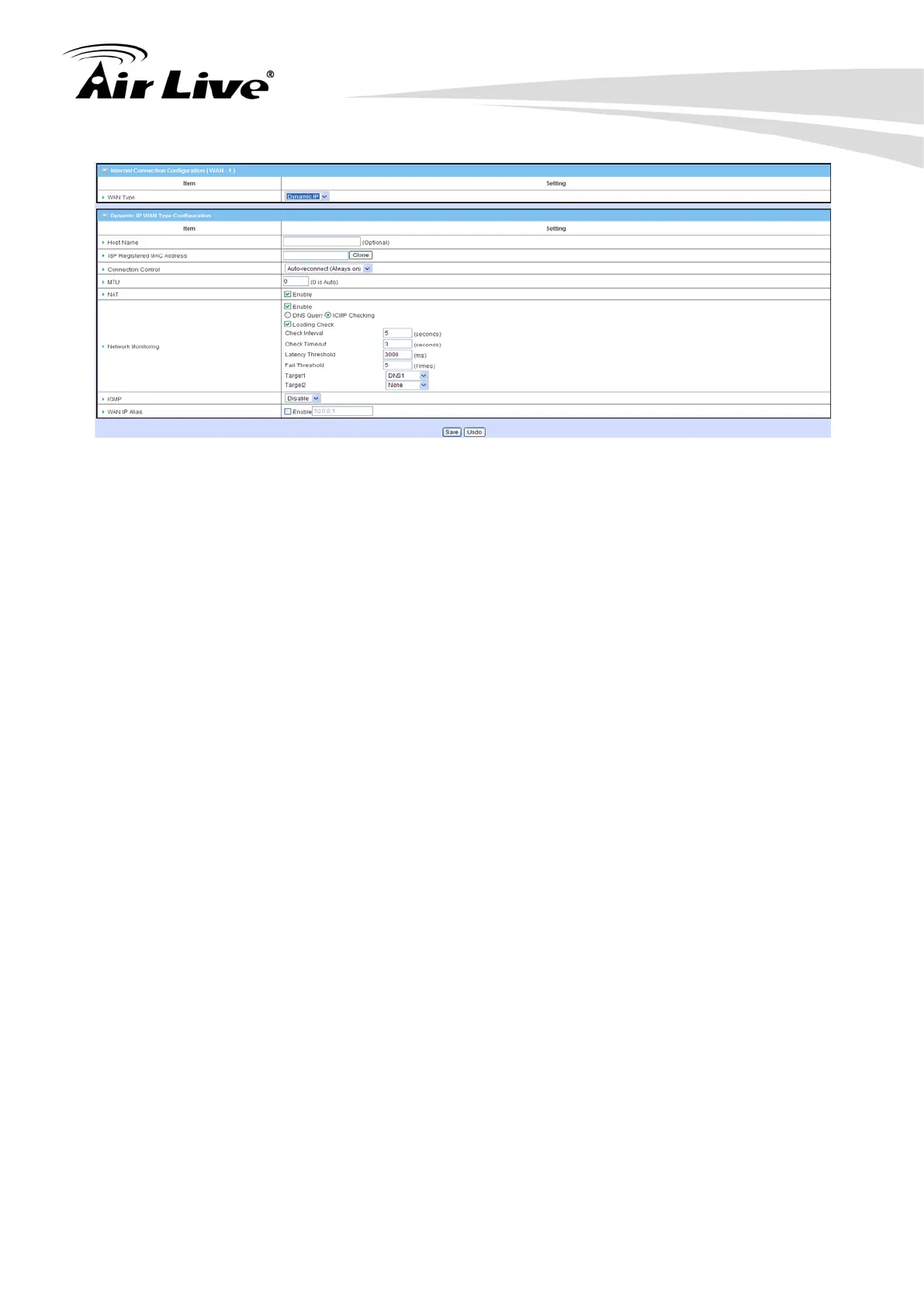

4. Web Management
AirLive VH-4GW User Manual
36
WAN Type: Choose “Dynamic IP” from the drop list.
Host Name: Optional, required by some ISPs. For example: @Home
ISP registered MAC Address: Some ISP would ask you to register a MAC address for
Internet connection. In this case, you need to enter the registered MAC address here, or
simply press “Clone” button to copy MAC address of your PC to this field.
Connection Control: Select your connection control scheme from the drop list:
“Auto-reconnect (Always on)”, “Dial-on-demand” or “Manually”. If selecting “Auto-reconnect
(Always on)”, this gateway will start to establish Internet connection automatically since it’s
powered on. It’s recommended to choose this scheme if for mission critical applications to
ensure Internet connection is available all the time. If choosing “Dial-on-demand”, this
gateway won’t start to establish Internet connection until local data is going to be sent to
WAN side. After that, this gateway will disconnect WAN connection if idle time reaches
value of Maximum Idle Time. If choosing “Manually”, this gateway won’t start to establish
WAN connection until you press “Connect” button on web UI. After that, this gateway will
disconnect WAN connection if idle time reaches value of Maximum Idle Time.
MTU: Most ISP offers MTU value to users. The default value is 0 (auto).
NAT: By default, it is enabled. If you disable this option, there will be no NAT mechanism
between LAN side and WAN side.
Network Monitoring: You can do preferred settings by using this feature to monitor the
connection status of WAN interface. Checking mechanism depends on several parameters
defined here. The network monitoring provides the WAN interface status and then system
can prevent embedded 3G/LTE modem from some sort of auto-timeout and disconnects
from the Internet after a period of inactivity.
Enable: Check the box to do Network Monitoring.
DNS Query/ICMP Checking: Do the keep alive through DNS query packets or ICMP
packets.
Loading Checking: The response time of replied keep-alive packets may increase when
WAN bandwidth is fully occupied. To avoid keep-alive feature work abnormally, enable this
option will stop sending keep-alive packets when there are continuous incoming and
outgoing data packets passing through WAN connection.
