57

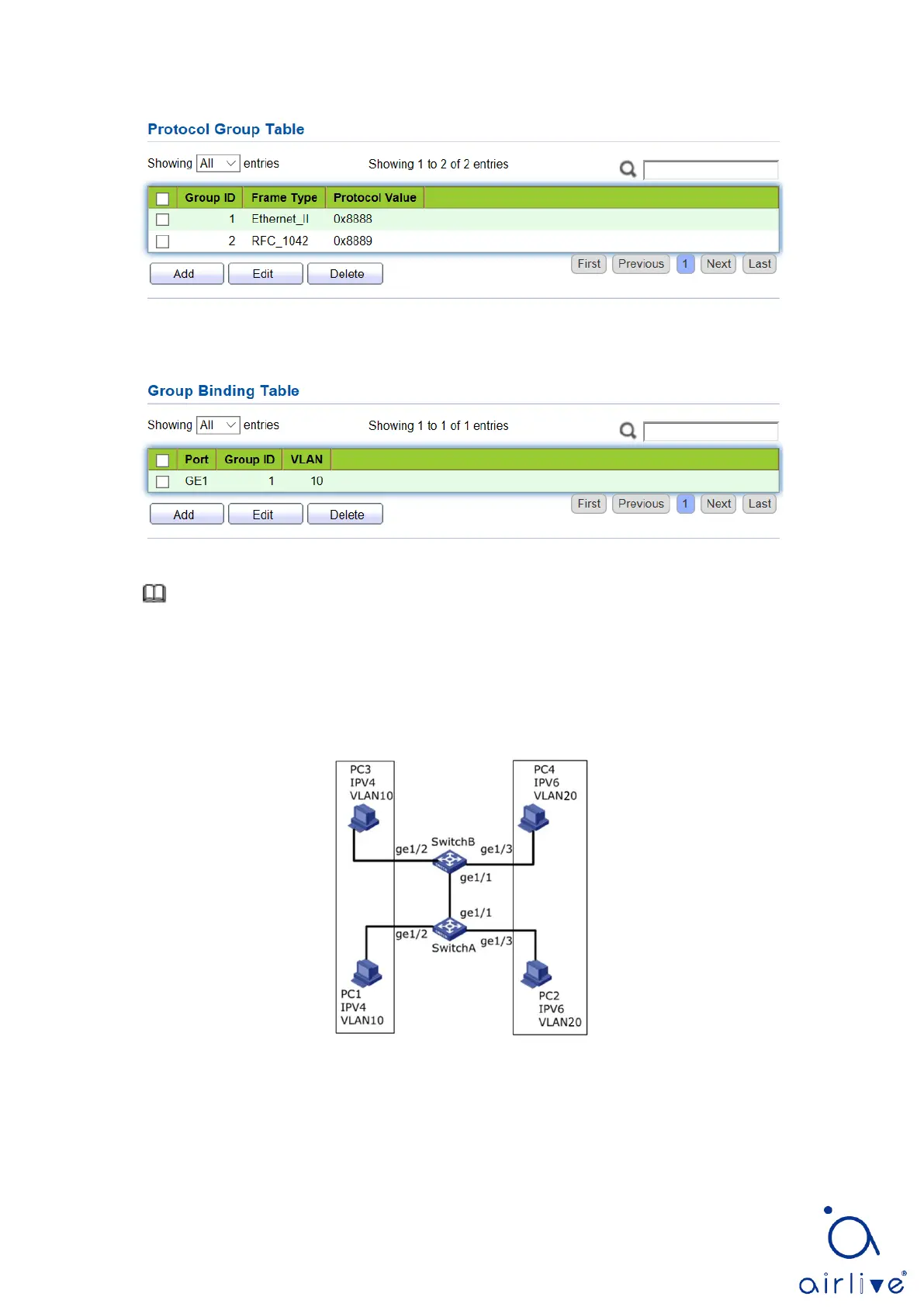

4. Click the “VLAN > Protocol VLAN > Group Binding” in the navigation bar to bind the
protocol No., port No. and VLAN ID, to bring the configuration into effect as follows:
Description:
Configure the matching protocols IPv4 and IPv6, as well as the ARP protocol.
For example, PC1 and 3 can access mutually, with IPv4 communication protocol
binding with VLAN10. PC2 and 4 can access mutually, with IPv6 communication protocol
binding with VLAN20.
Networking diagram of protocol VLAN division
Instructions:
1. Create a VLAN to recognize the VLANs where employees belong. Click the “VLAN >
VLAN > Create VLAN”, add the VLAN10 and 20 to the VLAN Creating List on the right,
“Apply” and finish:
