7.3 Protocol VLAN
Protocol VLAN distributes different VLAN IDs according to the protocol (family) type
and encapsulation format of the messages received by the interfaces.
Administrators should prepare the mapping scheme between the protocol domain
of Ethernet frame and VLAN ID which will be added if untagged frames are received.
Strength: Such division method will enhance the management and maintenance by
binding the network services and VLANs. Shortcomings: Initial configuration of the
mapping relation scheme is necessary. Address formats of protocols should be analyzed
and converted, thus leading to a lower speed due to many resources consumed.
Instructions:

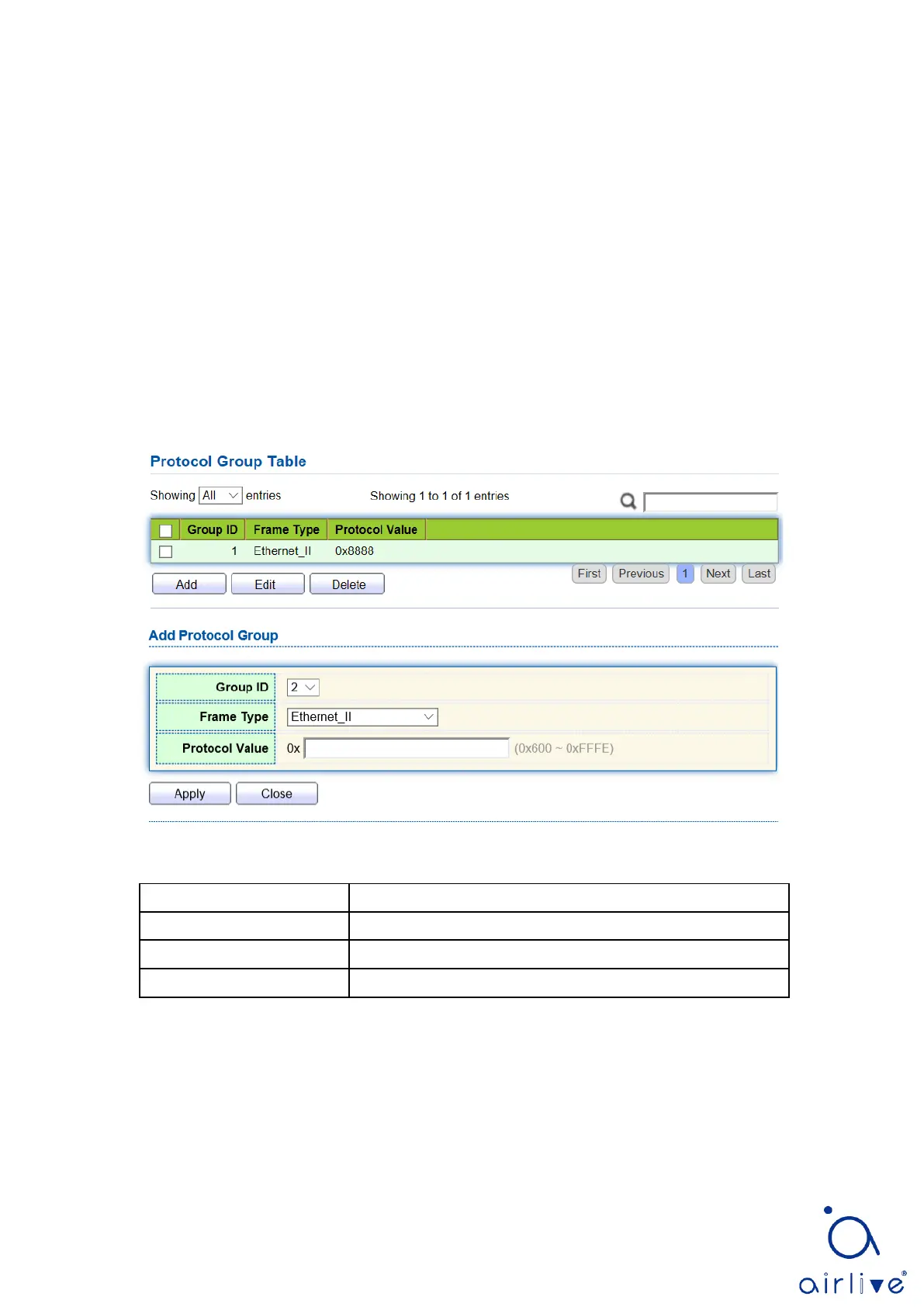

1. Click the “VLAN > Protocol VLAN > Protocol Group” in the navigation bar as follows:
Interface data are as follows.
Configuration Items
Description
Group ID
Protocol VLAN Group
Frame Type
Frame types: Ether2, LLC, RFC 1042
Protocol Value
It ranges from 0x600 to 0xFFFE
2. Fill in corresponding configuration items.
3. “Apply” and finish.
