196
Force) and significantly emphasizes the MIB II standard. It mainly monitors data flow in a
network segment or even the whole network, which is one of the widely used network
management standards. RMON includes NMS (Network Management Station) and Agent
running on various Network devices. RMON Agent running on network monitors or
detectors will track and count flow info (e.g. the total number of messages on a network
segment during a certain period of time, or that of correct messages sent to a host) on
the network segment connected to the port. Based on SNMP architecture, RMON is
compatible with the existing SNMP framework. SNMP monitors remote network devices
in a more efficient and active manner to supervise subnet operation. RMON can reduce
communication flow between NMS and SNMP Agent to manage the large-scale
interconnection network conveniently and effectively. Multiple monitors can collect data
by 2 means: The exclusive RMON probe is used to collect data, and the NMS directly
manages info and controls network resources. All RMON MIB info can be obtained.
RMON Agent with direct access to network devices (router, switch, HUB, etc.) will become
the network facility with RMON probe function. RMON NMS exchanges data with SNMP
Agent with SNMP basic command to collect network management info. However, limited
by device resources, it generally fails to obtain all data of RMON MIB. Most devices collect
data from only four groups: alarm, event, history and statistics groups. Area-type switch
realizes RMON in the second way. RMON Agent directly accessing switches will become
the network facility with RMON probe function. By running the SNMP Agent supported
by switches, NMS can obtain overall flow, error statistics, performance statistics and other
info on the network segments connected to ports, in order to manage the network.
19.5.1 Statistics
The statistics group info reflects the statistics of each monitoring interface on the
switch, namely the info accumulated from the beginning of group creation. Statistics
include the number of network conflicts, CRC error messages, too-small (too-large) data
messages, broadcast/multicast messages, bytes and messages received, etc. With the
RMON statistics and management functions, port usage and errors occurred can be
monitored and counted respectively.
Instructions

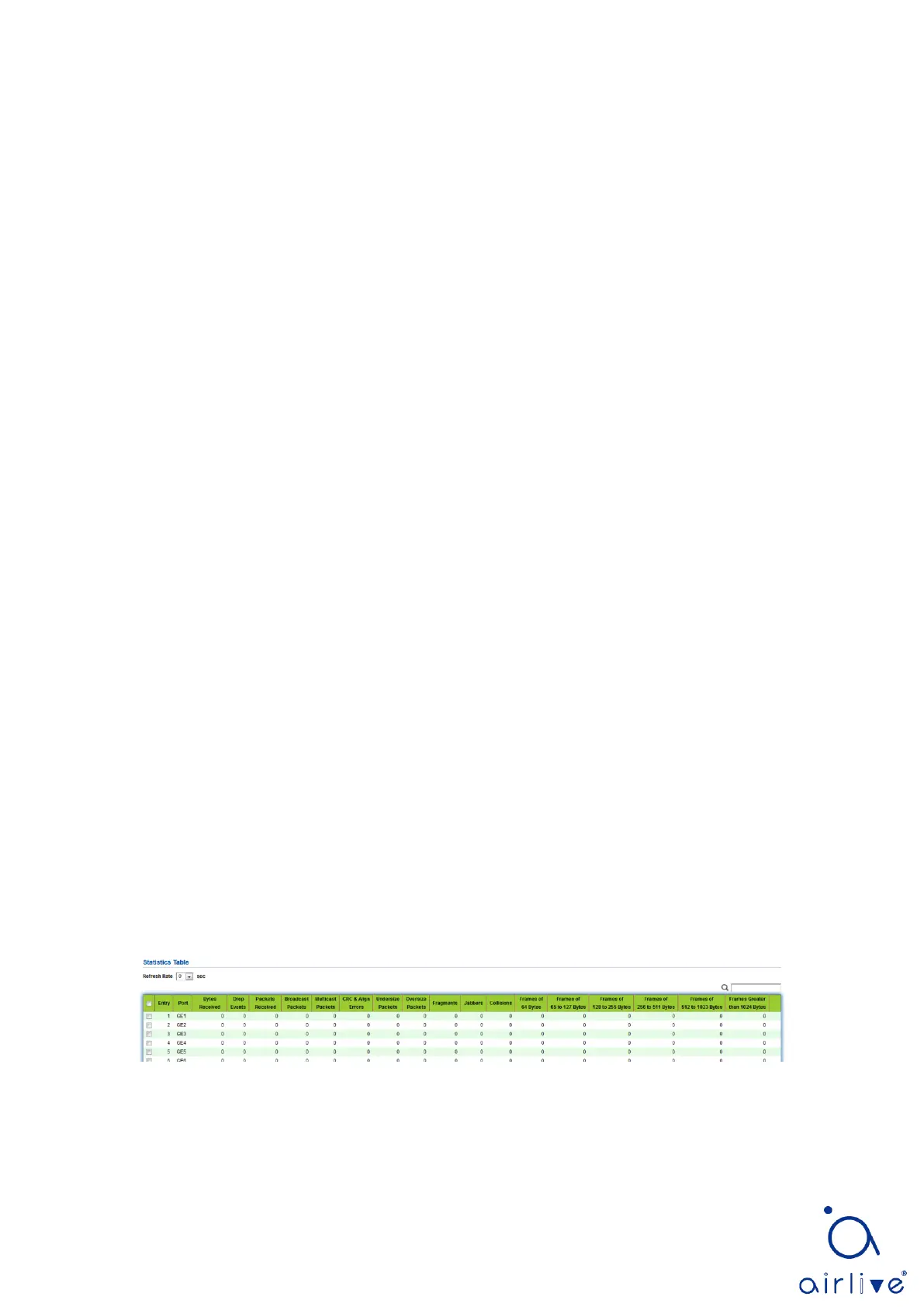

1. Click the “Management > RMON > Statistics” in the navigation bar as follows, which
reveals the port-related message statistics.
2. “Clear” and “Refresh” the statistics of the selected port. “View” such statistics as follows.
